2005 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Ignition System (1MZ-FE/3MZ-FE): Inspection

NOTE: In this section, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10°C (14°F) to 50°C (122°F). "Hot" means approximately 50°C (122°F) to 100°C (212°F).
  1. INSPECT SPARK PLUG
    NOTE:
    • Do not use a wire brush for cleaning.
    • Do not attempt to adjust the electrode gap of a used spark plug.
    1. Check the electrode.
      1. Using an ohmmeter, measure the insulation resistance.

        Correct insulation resistance: 10 MΩ or more

      If the resistance is less than the specified value, proceed to step (d).

      HINT:

      If the ohmmeter is not available, perform the following simple inspection instead.

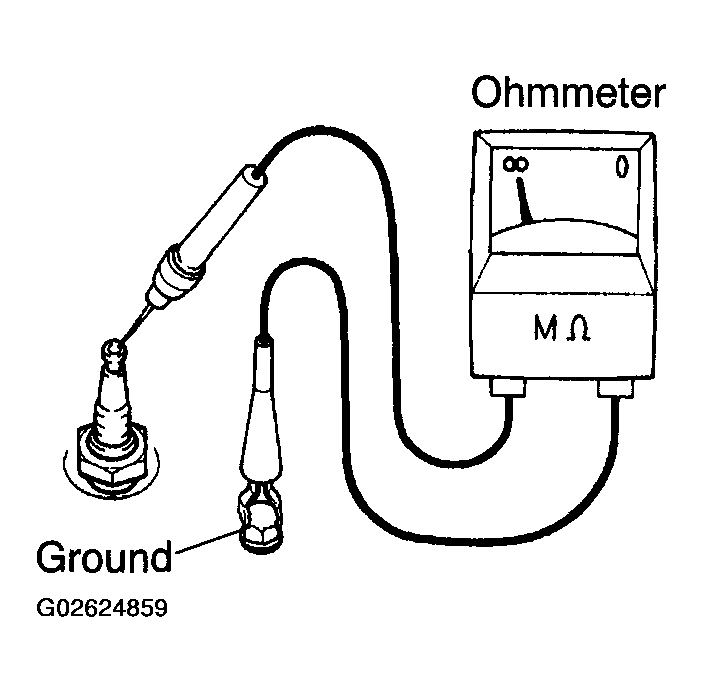

      Fig 1: Measuring Insulation Resistance Of Electrode
      G02624859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Alternative inspection method:
      1. Quickly accelerate the engine to 4,000 RPM 5 times.
      2. Remove the spark plug.
      3. Visually check the spark plug.

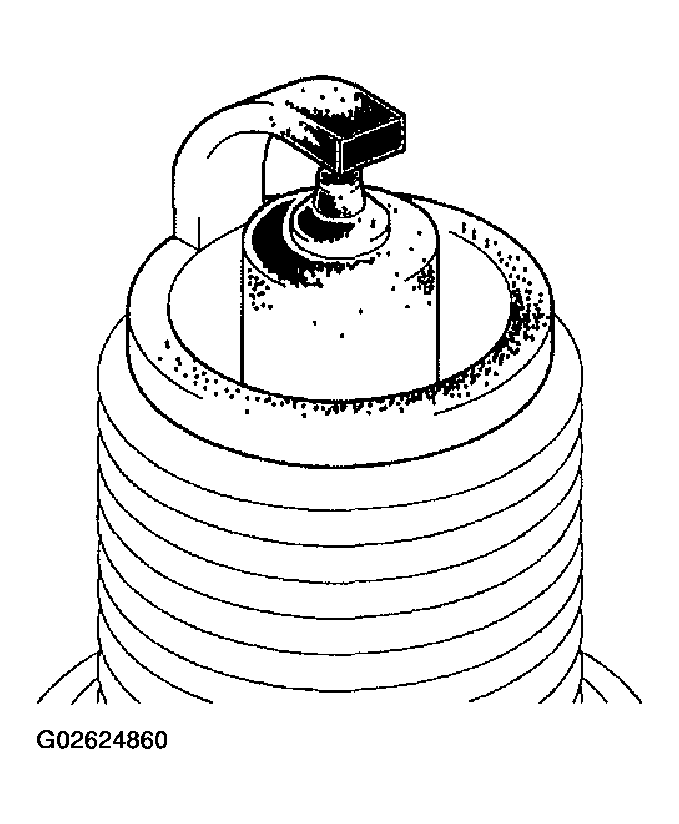

        Fig 2: Identifying Spark Plug
        G02624860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • If the electrode is dry, the spark plug is functioning. Proceed to step 2.
        • If the electrode is damp, proceed to steps (c), (d) and (e).
      4. Install the spark plug.
    3. Check the spark plug for any damage on its thread and insulator.

      If there is damage, replace the spark plug.

      Recommended spark plug:

      RECOMMENDED SPARK PLUG

      DENSO made SK20R11
      NGK made IFR6A11
    4. Check the spark plug electrode gap.

      Maximum electrode gap for used spark plug:

      1.3 mm (0.051 in.)

      If the gap is greater than the maximum, replace the spark plug.

      Correct electrode gap for new spark plug:

      1.0 to 1.1 mm (0.039 to 0.043 in.)

      NOTE: If adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip. Never attempt to adjust the gap on a used plug.
