Customize Parameters

HINT:

The following can be customized.

1. AIR CONDITIONING SYSTEM

   AIR CONDITIONER

   AIR CONDITIONER PARAMETERS



   DISPLAY(ITEM)	DEFAULT	CONTENTS	SETTING
   SET TEMP SHIFT (Set Temperature Shift)	NORMAL	To control with the shifted temperature against the display temperature.	+2C/+1C/NORMAL -1C / -2C
   AIR INLET MODE (Air Inlet Mode)	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode.	MANUAL/AUTO
   COMPRESSOR MODE (Compressor Mode)	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF.	MANUAL/AUTO
   COMPRS/DEFOPER (Compressor/Air Inlet DEF Operation)	LINK	Function to turn the A/C ON automatically linking with the FRONT DEF button when A/C OFF.	NORMAL/LINK
   EVAP CTRL (Evaporator Control)	AUTO	Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows fogging up.	MANUAL/AUTO
   BUTTON PRS BUZ (Button Press Buzzer)	ON	Function to sound a buzzer when a button is pressed.	OFF/ON
   FOOT/DEF MODE (Foot/DEF auto mode)	ON	Function to turn the air flow from FOOT/DEF ON automatically when AUTO MODE is ON.	OFF/ON
   AUTO BLOW UP (Foot/DEF automatic blow up function)	ON	Function to switch the blower level automatically when the defroster is ON.	OFF/ON
   AMBIENT TMPSFT (Ambient Temperature Shift)	NORMAL	To control with the shifted ambient temperature against the display ambient temperature.	+3C / +2C / +1C /NORMAL / -1C/ -2C/ -3C
   FOOT AIR LEAK (Foot Air Leak)	ON	Function to cut off the airstream felt underfoot while the vehicle is moving.	OFF/ON

2. LIGHTING SYSTEM

   ILLUMINATED ENTRY

   LIGHTING SYSTEM PARAMETERS



   DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
   LIGHTING TIME (Lighting Time)	15s	To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition on (IG).)	7.5 s/15 s/30 s
   ILLUMI SYSTEM (Operation of illumination)	ON	Function to turn on the step light, center console light and door inside handle light when one of the following occurs; the ignition turned on (IG), door unlock or door open.	ON/OFF
   LIGHT CONTROL (Light control)	ON	Function to turn on the step light and door inside handle light when the ignition switch is turned on (IG) and the shift lever is not in the P position.	ON/OFF
   I/L ON/UNLOCK (Interior light ON w/door key unlock)	ON	Function to turn on the interior light*, ignition light and step light when unlocking with the door key cylinder. *: Interior light comes on when the interior light switch is in the DOOR position.	ON/OFF
   I/L ON/ACC OFF (Illumination system ON with ACC OFF)	ON	Function to turn on the interior light* and door courtesy light when the ignition switch is turned from on (ACC) to off. *: interior light comes on when the interior light switch is in the DOOR position.	ON/OFF

   LIGHT CONTROL

   HINT:

   Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

   LIGHT CONTROL PARAMETERS



   DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
   LIGHT OFF DELAY (Light Auto OFF Delay)	30 s	Function to keep the headlight on for a certain period of time after closing all the doors when turning the ignition switch on (IG) under the condition that the light control switch is in the HEAD or AUTO position with the headlight ON.	OFF / 30 s / 60 s / 90 s
   LIGHT CTRL TYPE (Control Type)	CURRENT	To change the control logic when the light control switch is in the AUTO position. Refer to the LIGHTING BRIGHTNESS PARAMETERS .	CURRENT/OLD
   SENSITIVITY (Turn ON luminous intensity)	NORMAL	To adjust the sensitivity of the lighting illumination. Refer to the Fig 1.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
   DISP EX ON SEN (Display Extinction Luminous Intensity)	NORMAL	To dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 2.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
   DISP EX OFF SEN (Display Extinction Release Luminous Intensity)	NORMAL	To cancel to dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 3.	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2

   TABLE 1

   LIGHTING BRIGHTNESS PARAMETERS



   -	Brightness of the surrounding when lighting	Lighting delay	Delay of turning light off	(2)
   OLD	Old logic	6 sec.	6 sec.	3 sec.
   CURRENT	New logic (1) ('97/8-)	15 sec.	15 sec.	15 sec.
   (1) The new system has the ability to light up two times brighter than the old system. (2) Delay time until the headlight is turned on when the outside suddenly gets dark.

   Illustration 1

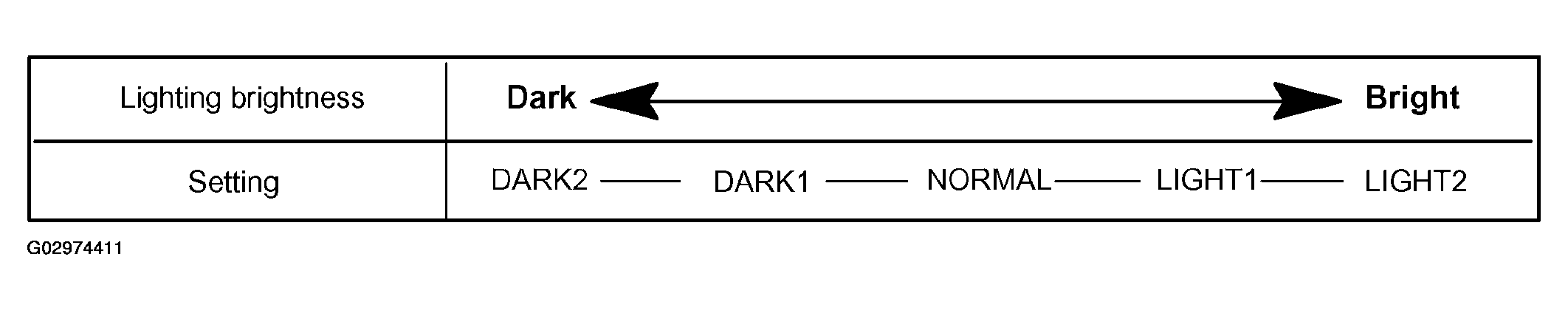

   Fig 1: Lighting Brightness Illustration 1
