Crankshaft Position Sensor (2GR-FE): Replacement
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE FAN AND GENERATOR V BELT (SEE REPLACEMENT )
- REMOVE GENERATOR ASSY (SEE REPLACEMENT )
- DISCONNECT COOLER COMPRESSOR ASSY (SEE REPLACEMENT )

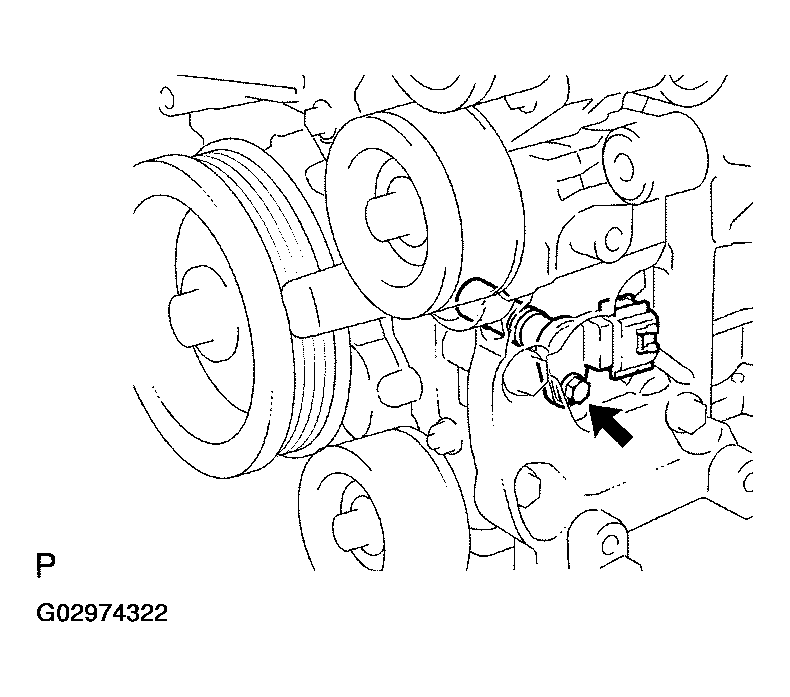

- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the crankshaft position sensor connector.
- Remove the bolt and crankshaft position sensor.
- INSTALL CRANKSHAFT POSITION SENSOR
- Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.
- Install the crankshaft position sensor with the bolt.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
- Connect the crankshaft position sensor connector.
- INSTALL COOLER COMPRESSOR ASSY (SEE REPLACEMENT )
- INSTALL GENERATOR ASSY (SEE REPLACEMENT )
- INSTALL FAN AND GENERATOR V BELT (SEE REPLACEMENT )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION (SEE INITIALIZATION
)
Some systems need initialization when disconnecting the cable from the negative battery terminal.
