2005 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Engine Fuel System: Inspection

INSPECT FUEL INJECTOR ASSY
1. Inspect injector resistance.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Resistance: 11.6 to 12.4 Ω at 20°C (68°F)

    If the resistance is not as specified, replace the injector.
2. Inspect the injection volume.
  CAUTION: This test involves high - pressure fuel and electricity. Take every precaution regarding safe handling of both the fuel and the electricity. Perform this test in a safe area, and avoid any sparks or flames. Do not smoke.
  1. Install the fuel tube connector to SST (hose), then connect the tube connector to the fuel pipe (vehicle side).
    SST 09268-41048 (95336-08070, 09268-41500)

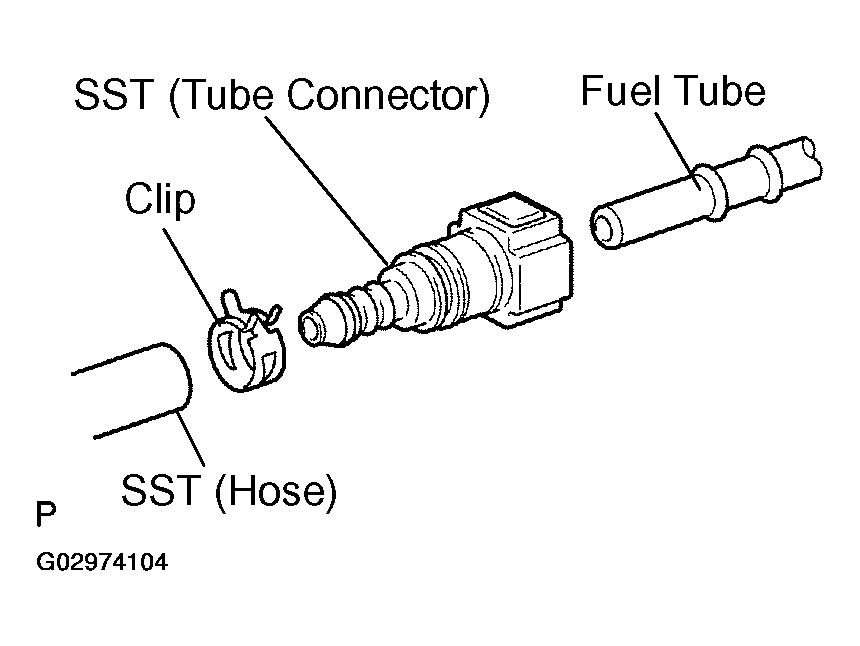

    Fig 1: Installing Fuel Tube Connector To SST (Hose), Then Connect Tube Connector To Fuel Pipe (Vehicle Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the O-ring to the fuel injector.
  3. Connect SST (adaptor and hose) to the injector, and hold the injector and union with SST (clamp).
    SST 09268-41048 (09268-41130, 90467-13001), 09268-41400
  4. Put the injector into the graduated cylinder.
    CAUTION: Install a suitable vinyl tube onto the injector to contain gasoline spray.
