2005 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Knock Control Sensor (2GR-FE): Replacement

  1. PREVENT GASOLINE FROM SPILLING OUT (SEE  PRECAUTION  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. DRAIN ENGINE COOLANT (SEE  COOLANT (2GR-FE)  )
  4. REMOVE WINDSHIELD WIPER MOTOR & LINK ASSY (SEE  REPLACEMENT  )
  5. REMOVE COWL TOP PANEL OUTER (SEE  REPLACEMENT  )
  6. REMOVE V-BANK COVER SUB-ASSY (SEE  REPLACEMENT  )
  7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (SEE  REPLACEMENT  )
  8. REMOVE INTAKE AIR SURGE TANK (SEE  REPLACEMENT  )
  9. REMOVE INTAKE MANIFOLD (SEE  REPLACEMENT  )
  10. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the 2 knock control sensor connectors.
    2. Remove the 2 bolts and 2 knock control sensors.

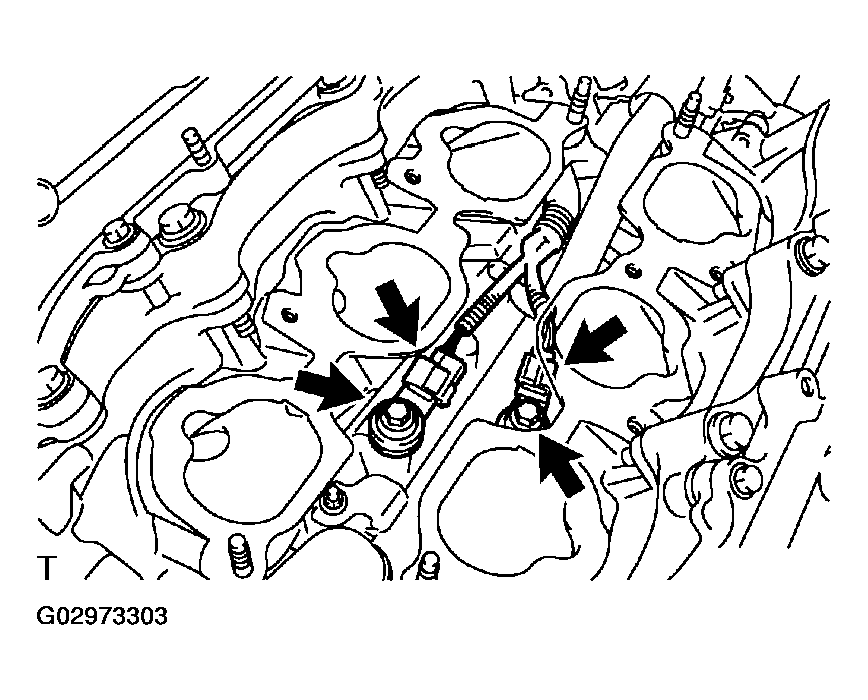

      Fig 1: Removing Knock Control Sensor
      G02973303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL KNOCK CONTROL SENSOR
    1. Install the 2 knock control sensors with the 2 bolts as shown in Fig 2 .

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    2. Connect the 2 knock control sensor connectors.

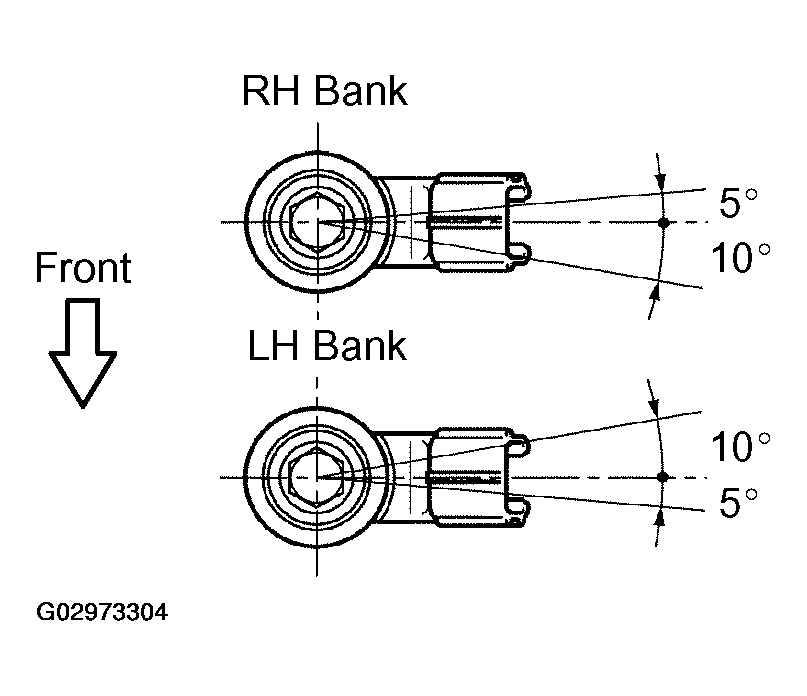

      Fig 2: Installing Knock Control Sensor
      G02973304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INTAKE MANIFOLD (SEE  REPLACEMENT  )
  13. INSTALL INTAKE AIR SURGE TANK (SEE  REPLACEMENT  )
  14. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (SEE  REPLACEMENT  )
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  16. ADD ENGINE COOLANT (SEE  COOLANT (2GR-FE)  )
  17. CHECK FOR ENGINE COOLANT LEAKS (SEE  ON-VEHICLE INSPECTION  )
  18. INSPECT FOR FUEL LEAKS (SEE  ON-VEHICLE INSPECTION  )
  19. INSTALL V-BANK COVER SUB-ASSY (SEE  REPLACEMENT  )
  20. INSTALL COWL TOP PANEL OUTER (SEE  REPLACEMENT  )
  21. INSTALL WINDSHIELD WIPER MOTOR & LINK ASSY (SEE  REPLACEMENT  )
  22. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    Some systems need initialization when disconnecting the battery terminal.

  23. CHECK FUNCTION OF THROTTLE BODY (SEE  ON-VEHICLE INSPECTION  )
