2005 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

ECM (2GR-FE): Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
  3. REMOVE COWL SIDE TRIM SUB-ASSY RH (SEE  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2 (SEE  REPLACEMENT  )
  5. REMOVE GLOVE COMPARTMENT DOOR ASSY (SEE  REPLACEMENT  )
  6. REMOVE ECM
    1. Disconnect the 5 connectors from the ECM.
    2. Remove the 2 nuts, bolt and ECM.
    3. Remove the 2 screws to separate the ECM bracket from the ECM.
    4. Remove the 2 screws to separate the ECM bracket No.2 from the ECM.

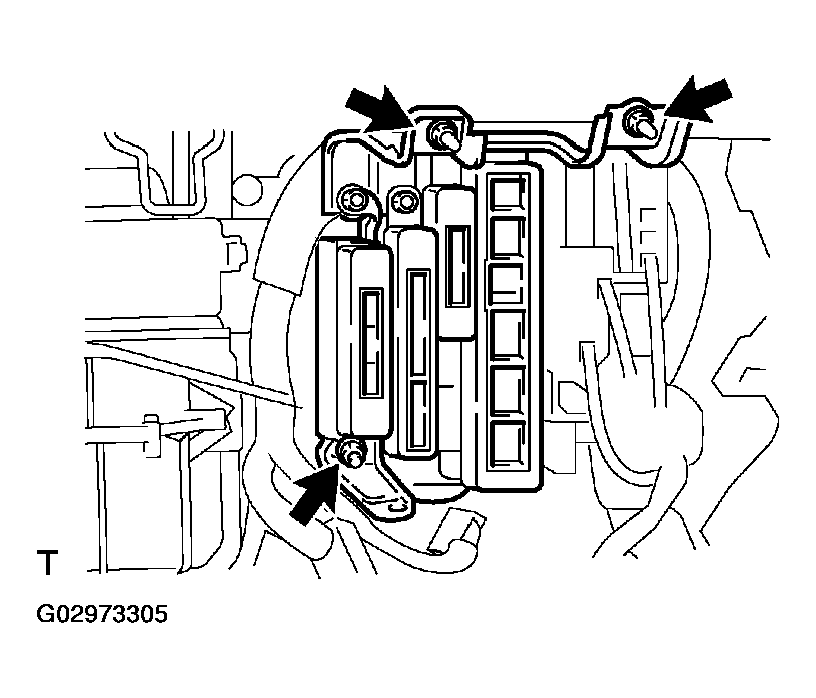

      Fig 1: Removing ECM
      G02973305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ECM
    1. Install the ECM bracket No.2 to the ECM with the 2 screws.
    2. Install the ECM bracket to the ECM with the 2 screws.
    3. Install the ECM with the 2 nuts and bolt.

      Torque: 5.5 N.m (56 kgf.cm, 49 in. lbf)

    4. Connect the 5 connectors to the ECM.
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. INSTALL GLOVE COMPARTMENT DOOR ASSY
  10. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2
  11. INSTALL COWL SIDE TRIM SUB-ASSY RH
  12. INSTALL FRONT DOOR SCUFF PLATE RH
  13. RESET MEMORY (see  INITIALIZATION  )
  14. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    Some systems need initialization when disconnecting the battery terminal.
