2005 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Inspection Procedure

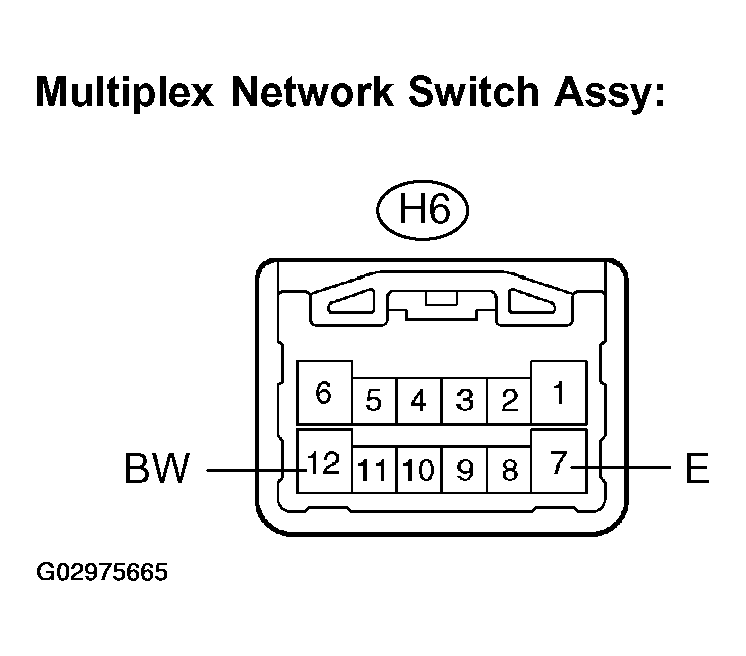

- CHECK WIRE HARNESS (MULTIPLEX NETWORK SWITCH ASSY - BATTERY AND BODY GROUND)
- Disconnect the H6 connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H6-7 (E) - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H6-12 (BW) - Body ground Always 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
