Inspection Procedure
- CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
- Check that the power window manual UP/DOWN function operates normally.
OK: Manual UP/DOWN function operates normally.
- NG: OTHER PROBLEM (See PROBLEM SYMPTOMS TABLE )
- OK: Go to next step.
- Check that the power window manual UP/DOWN function operates normally.
- CHECK LAMP OF MULTIPLEX NETWORK MASTER SWITCH ASSY
- Turn the ignition switch on (IG).
- Operate the driver side switch of the multiplex network master switch assy.

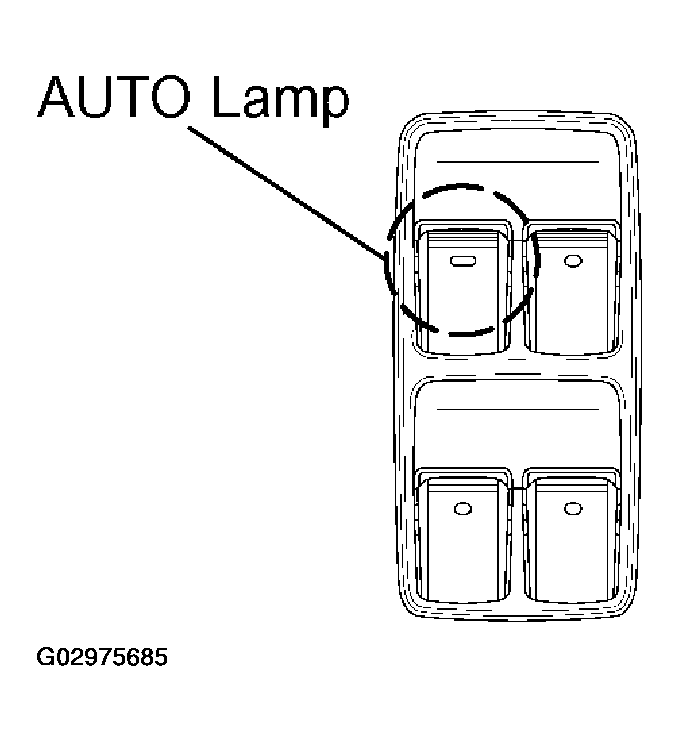

- Check the blinking pattern of the AUTO lamp as shown in the illustration.
- If pattern (1) is displayed, proceed to A.
- If pattern (2) or (3) is displayed, proceed to B.
- If the normal pattern is displayed, proceed to C.
