2005 Toyota Avalon LimitedFACTORY OEM SERVICE PROCEDURE

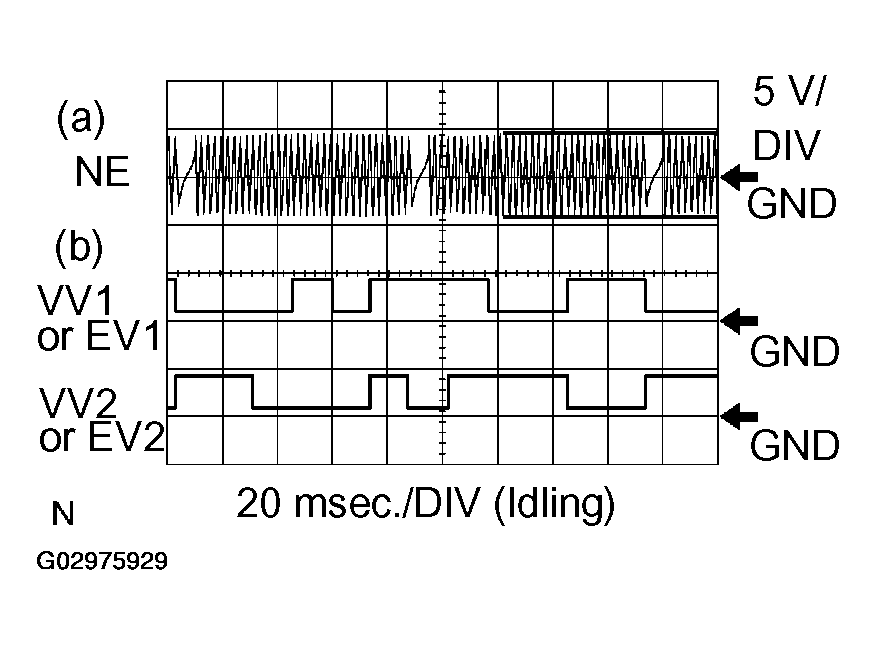

Waveform 5
- Variable Valve Timing (VVT) sensor signal
- Crankshaft position sensor signalWAVEFORM 5 REFERENCE CHART
ECM Terminal Names (b) between VV1+ and VV1-, VV2+ and VV2-, EV1+ and EV1-, or EV2+ and EV2- ECM Terminal Names (a) Between NE+ and NE- Tester Ranges 5 V/DIV, 20 msec./DIV Conditions Idling HINT:
The wavelength becomes shorter as the engine rpm increases.
