2005 Toyota Avalon LimitedFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

NOTE:
  • When a vehicle is brought into the workshop, leave it as it is. Do not change the vehicle condition. For example, do not tighten the fuel tank cap.
  • Do not disassemble the pump module.
  • The hand-held tester is required to conduct the following diagnostic troubleshooting procedure.
  1. CONFIRM DTC AND EVAP PRESSURE
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch on (IG) (do not start the engine).
    3. Turn the tester on.
    4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
    5. Read DTCs.
    6. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / VAPOR PRESSURE.
    7. Read the EVAP (Evaporative Emission) pressure displayed on the tester.

      Result:

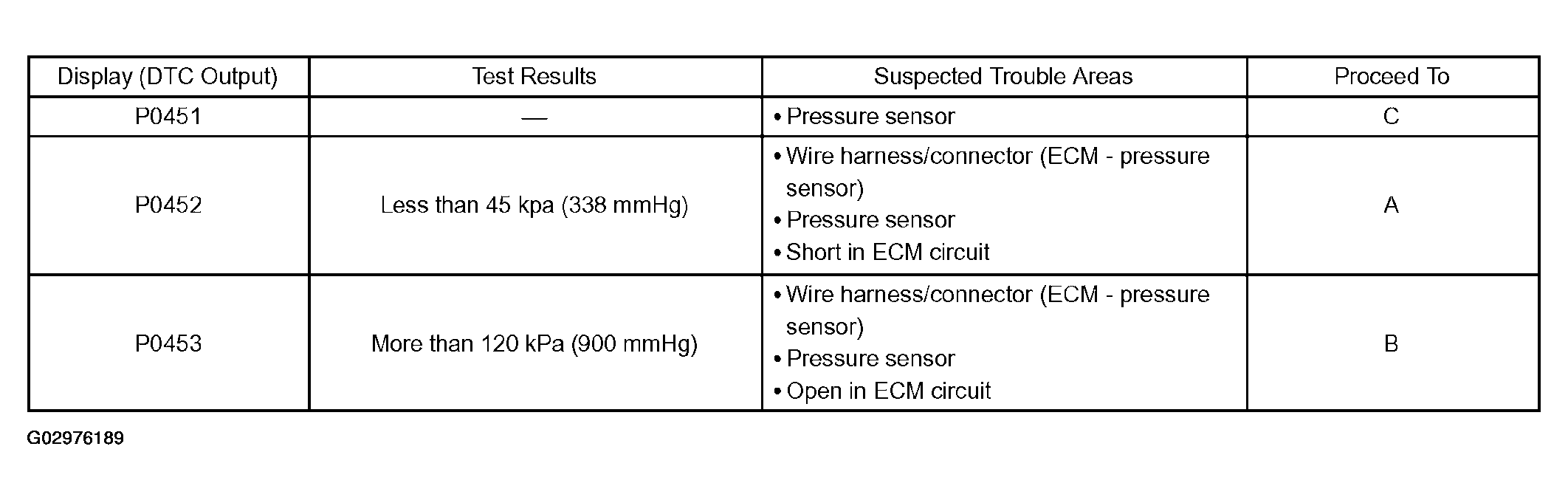

      Fig 1: DTC Trouble Area
      G02976189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   4 .
    2. C: GO TO EVAP INSPECTION PROCEDURE (SEE  EVAP INSPECTION PROCEDURE  )
    3. A: Go to next step.
  2. CHECK HARNESS AND CONNECTOR(PUMP MODULE - ECM)
    1. Turn the ignition switch off.
    2. Disconnect the A24 ECM connector.
    3. Measure the resistance between PPMP terminal of the ECM connector and the body ground.

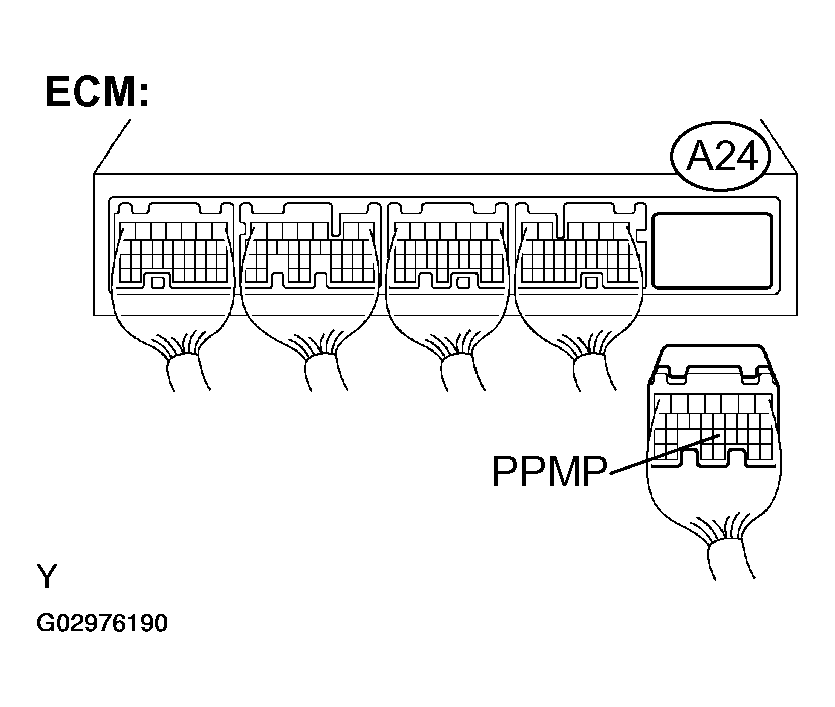

      Fig 2: Measuring Resistance Between PPMP Terminal Of ECM Connector
      G02976190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result:

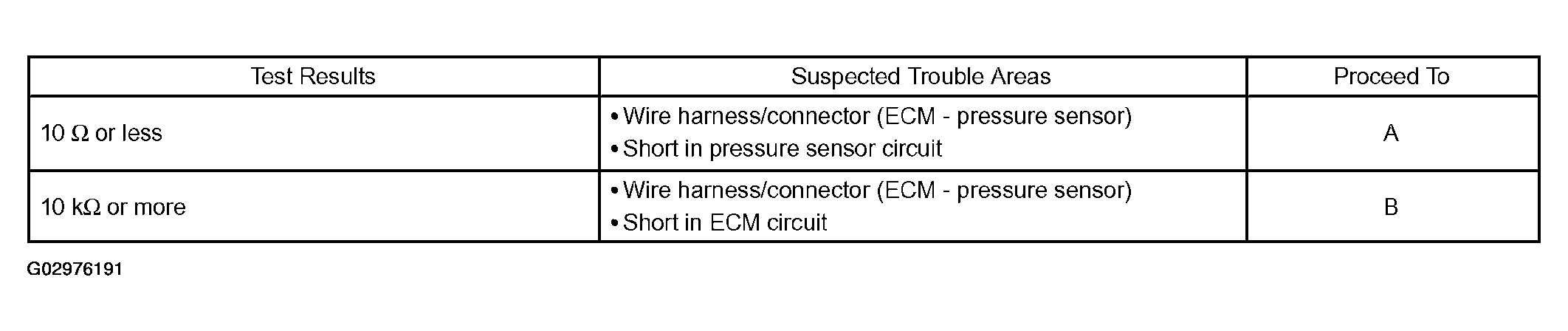

      Fig 3: Test Result Trouble Area
      G02976191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ECM connector.
    1. B: Go to step   7 .
    2. A: Go to next step.
  3. CHECK HARNESS AND CONNECTOR (PUMP MODULE - ECM)
    1. Disconnect the L12 canister connector.
    2. Disconnect the A24 ECM connector.
    3. Measure the resistance between PPMP terminal of the ECM connector and the body ground.

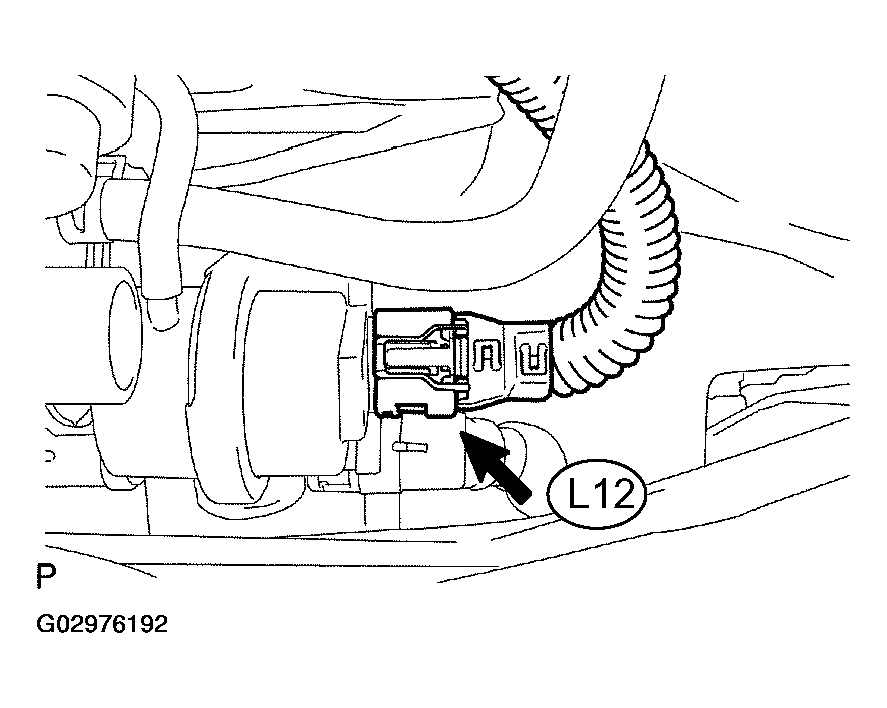

      Fig 4: Locating Canister Connector
      G02976192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
