Accelerator Pedal Rod ASSY (2UZ-FE): Replacement
- REMOVE ACCELERATOR PEDAL ROD ASSY

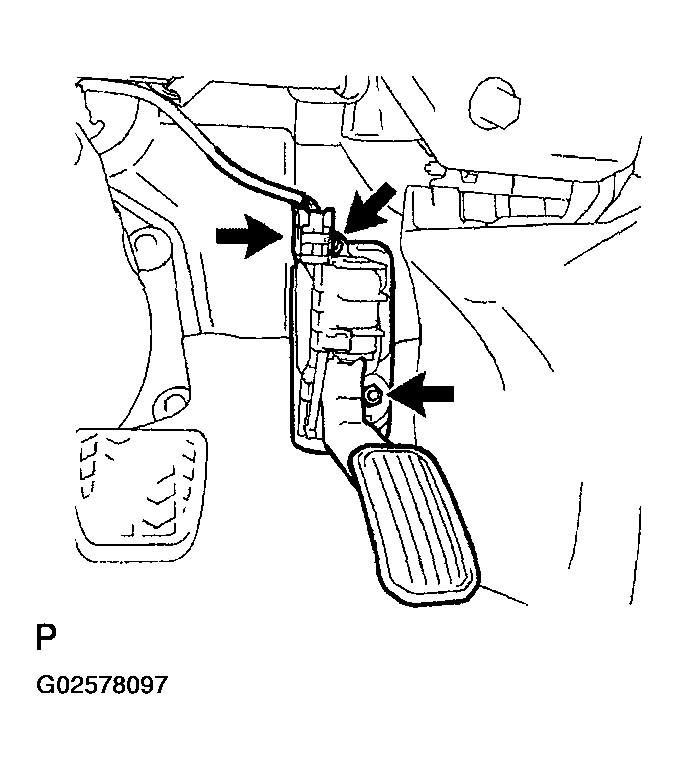

- Disconnect a accelerator pedal connector.
- Remove the 2 nuts and accelerator pedal assy.
- INSTALL ACCELERATOR PEDAL ROD ASSY NOTE:
- Be care not to give a shock to the accelerator pedal assy.
- Be care not to disassemble the accelerator pedal assy.
- Install the accelerator pedal assy with the 2 nuts.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
- Connect a accelerator pedal connector.
