Inspection Procedure: Notes
HINT:
- Using hand-held tester monitor results enables the EVAP (Evaporative Emission) system to be confirmed.
- Read freeze frame data using a hand-held tester. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.
- CONFIRM DTC
- Turn the ignition switch to OFF and wait for 10 seconds.
- Turn the ignition switch to ON.
- Turn the ignition switch to OFF and wait for 10 seconds.
- Connect a hand-held tester to the DLC3.
- Turn the ignition switch to ON and turn the tester ON.
- Select the following menu items: DIAGNOSIS / ENHANCED OBDII / DTC INFO / CURRENT CODES.
- Confirm DTCs and freeze frame data.

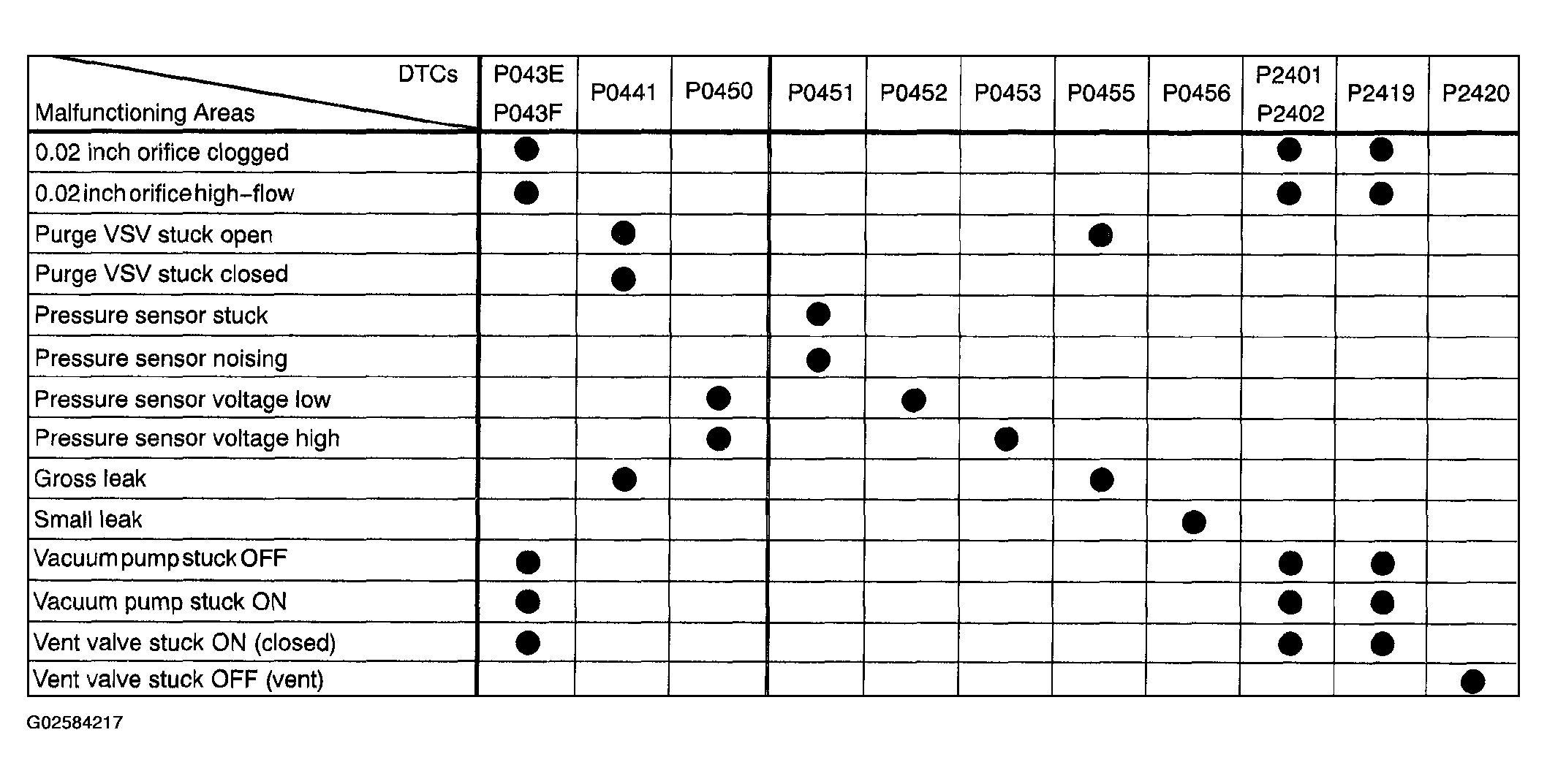

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
