2004 Toyota Tundra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Body: Replacement
- DRAIN ENGINE COOLANT
- DISCONNECT ACCELERATOR CABLE FROM THROTTLE BODY
- REMOVE AIR CLEANER HOSE
- REMOVE THROTTLE BODY
- Disconnect the throttle position sensor connector.
- Disconnect the throttle control motor connector.
- Disconnect the accelerator pedal position sensor connector.
- Disconnect the air hose.
- Disconnect the 2 water bypass hoses.

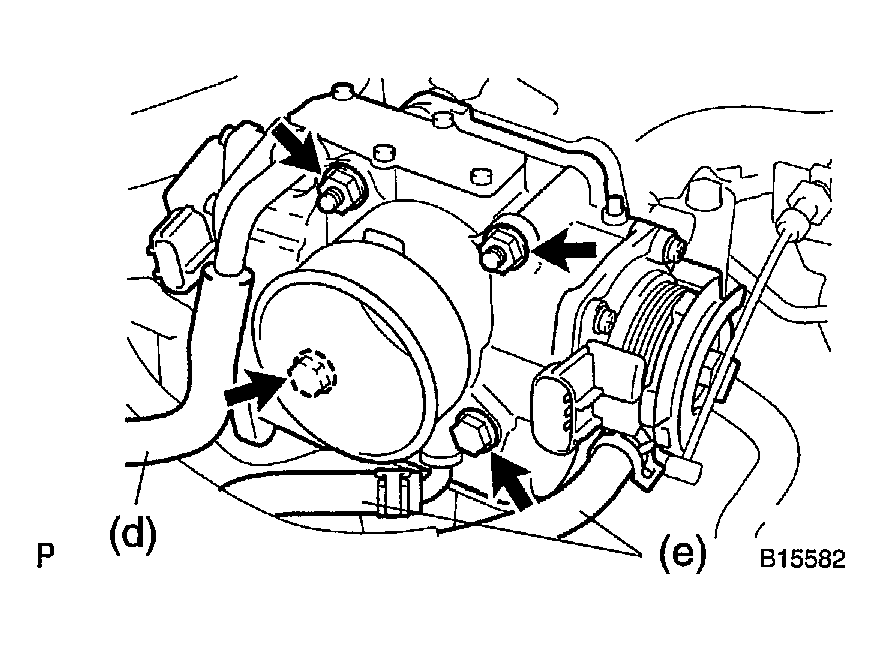

- Remove the 2 bolts, 2 nuts, throttle body and gasket.
- REINSTALL THROTTLE BODY

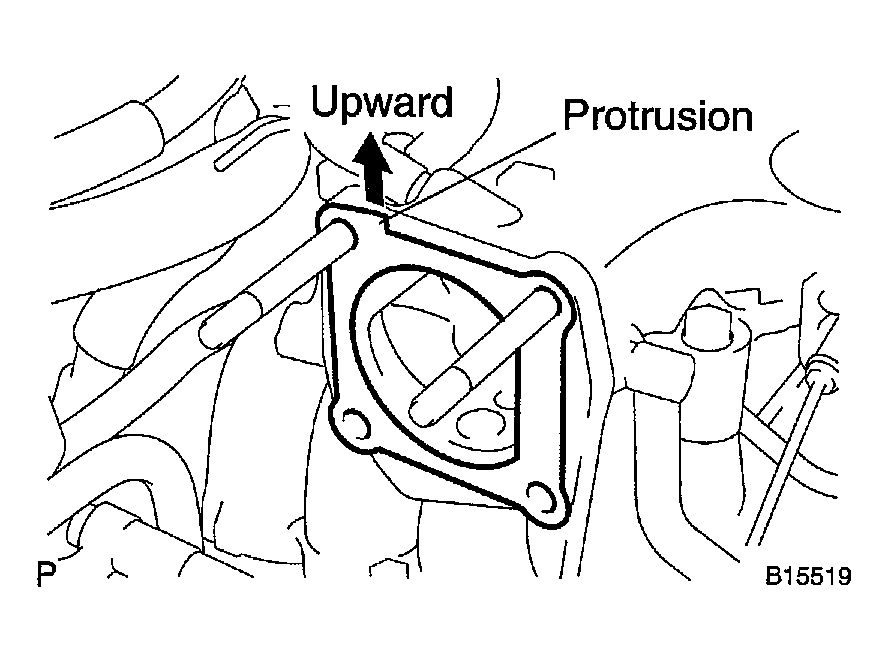

- Place a new gasket on the air intake chamber facing the protrusion upward.
- Install the throttle body with the 2 bolts and 2 nuts.
Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
- Connect the throttle position sensor connector.
- Connect the throttle control motor connector.
- Connect the accelerator pedal position sensor connector.
- Connect the air hose.
- Connect the 2 water bypass hoses.
- RECONNECT ACCELERATOR CABLE TO THROTTLE BODY
- REINSTALL AIR CLEANER HOSE
- REFILL WITH ENGINE COOLANT
- START ENGINE AND CHECK FOR COOLANT LEAKS
