2004 Toyota Tundra Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Circuit Opening Relay: Inspection

  1. REMOVE RELAY BOX COVER
  2. REMOVE CIRCUIT OPENING RELAY (Marking: C/OPN)

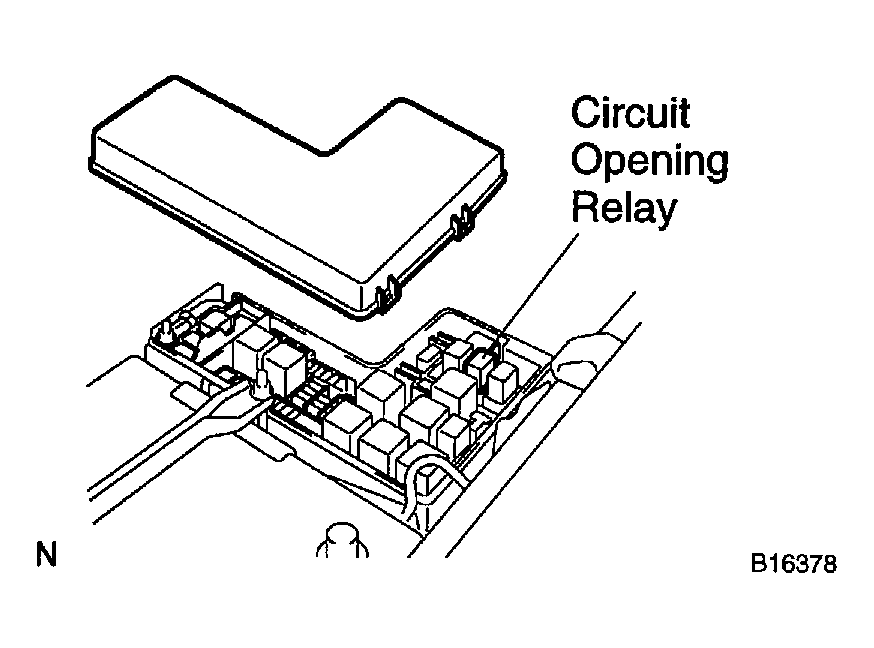

    Fig 1: Removing Relay Box Cover
    G04207993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT CIRCUIT OPENING RELAY
    1. Inspect the relay continuity.
      1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.

        If there is no continuity, replace the relay.

      2. Check that there is no continuity between terminals 3 and 5.

      If there is continuity, replace the relay.

      Fig 2: Checking Continuity Between Terminals 1 And 2
      G04207994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the relay operation.
      1. Apply battery positive voltage across terminals 1 and 2.
      2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.

      If there is no continuity, replace the relay.

  4. REINSTALL CIRCUIT OPENING RELAY
  5. REINSTALL RELAY BOX COVER

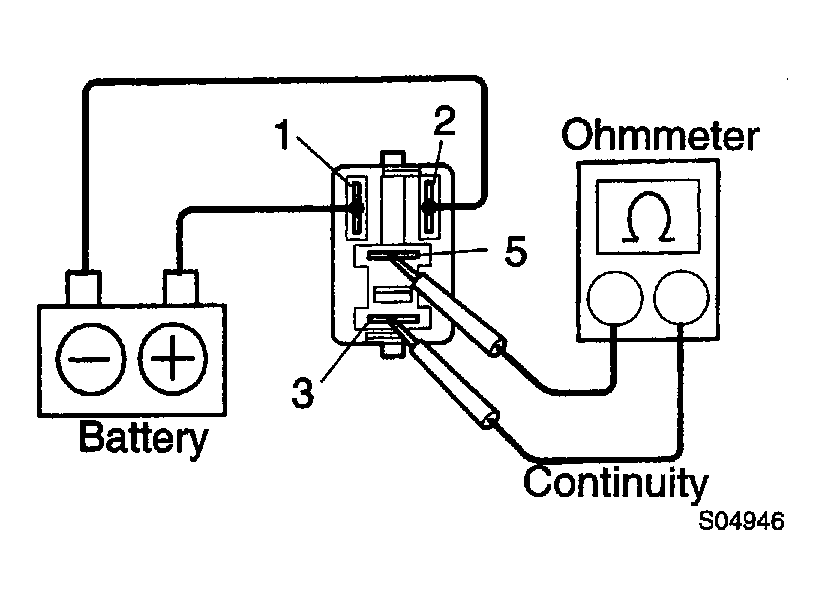

    Fig 3: Checking Continuity Between Terminals 3 And 5
    G04207995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
