2004 Toyota Tacoma PreRunner V6-3.4L (5VZ-FE)FACTORY OEM SERVICE PROCEDURE
Emission Control Systems: Description and Operation
PURPOSE
The emission control Systems are installed to reduce the amount of CO, HG and NOx exhausted from the engine (3 and 4), to prevent the atmospheric release of blow-by gas-containing HC (1) and evaporated fuel containing HC being released from the fuel tank (2).

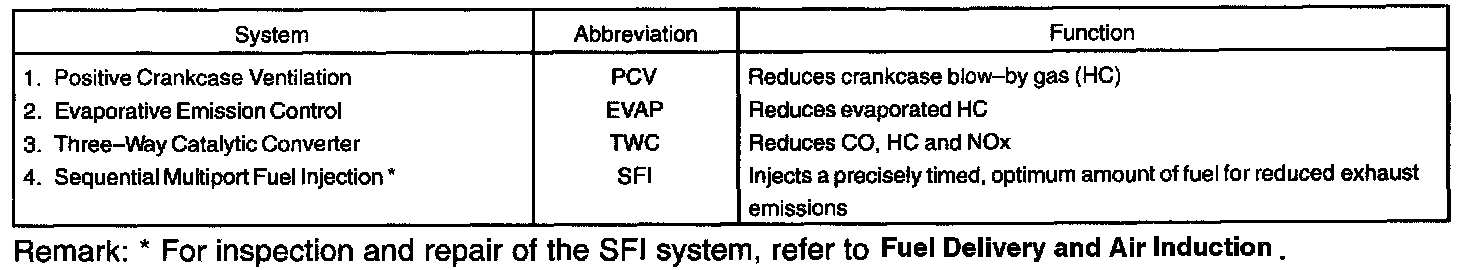

The function of each system is shown in table.
The emission control Systems are installed to reduce the amount of CO, HG and NOx exhausted from the engine (3 and 4), to prevent the atmospheric release of blow-by gas-containing HC (1) and evaporated fuel containing HC being released from the fuel tank (2).
The function of each system is shown in table.
