2004 Toyota Tacoma PreRunner V6-3.4L (5VZ-FE)FACTORY OEM SERVICE PROCEDURE
Active Test
ACTIVE TEST
HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, perform the "ACTIVE TEST".
HINT: IG must be turned ON to proceed Active Test using a hand-held tester.
*1: For VSC equipped vehicles only
HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, perform the "ACTIVE TEST".
HINT: IG must be turned ON to proceed Active Test using a hand-held tester.

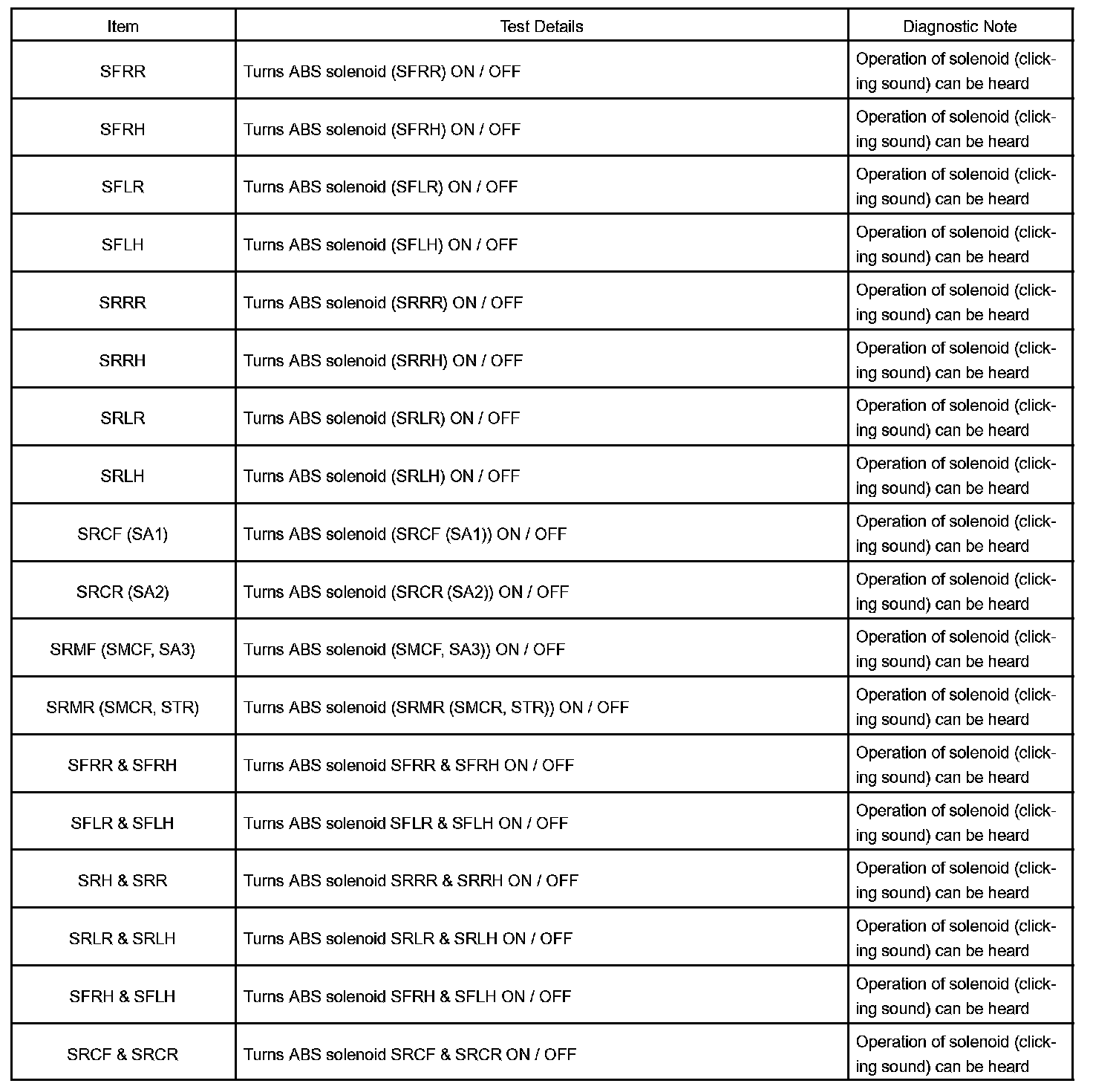

Part 1:
Part 2:
*1: For VSC equipped vehicles only
