2004 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Engine Fuel System: Inspection

  1. INSPECT FUEL INJECTOR ASSEMBLY
    1. Inspect injector resistance
      1. Using an ohmmeter, measure the resistance between the terminals.

      Resistance: 13.4 to 14.2 Ω at 20°C (68°F)

      If the resistance is not as specified, replace the injector.

    2. Inspect injector operation.
      CAUTION: This test involves high-pressure fuel and electricity. Take every precaution regarding safe handling of both the fuel and the electricity. Preform this test in a safe area, and avoid any sparks or flame. Do not smoke.
      1. Obtain new No. 1 fuel pipe (part No. 23801 -20171) and remove the fuel tube connector from the pipe.

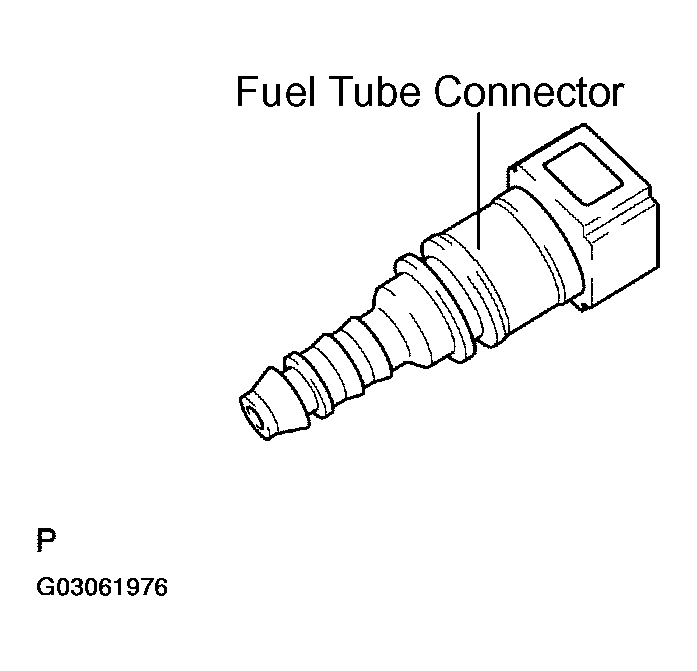

        Fig 1: Identifying Fuel Tube Connector
        G03061976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the fuel tube connector to SST (hose), then connect the tube connector and the fuel pipe.

        SST 09268-41047 (95336-08070)

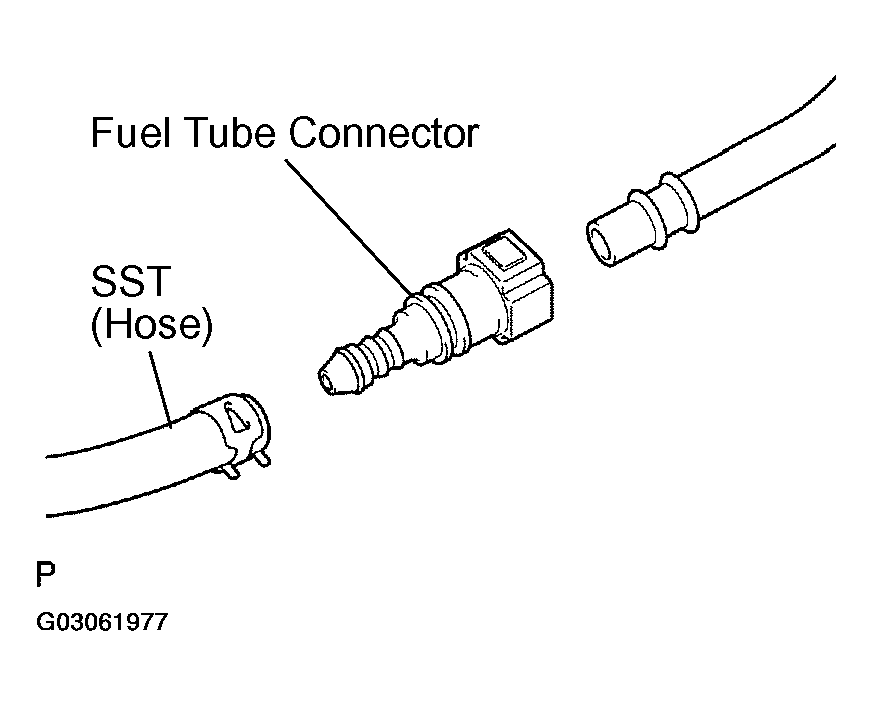

        Fig 2: Installing Fuel Tube Connector To SST (Hose)
        G03061977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
