Power Window Control System W/O Jam Protection: Inspection
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

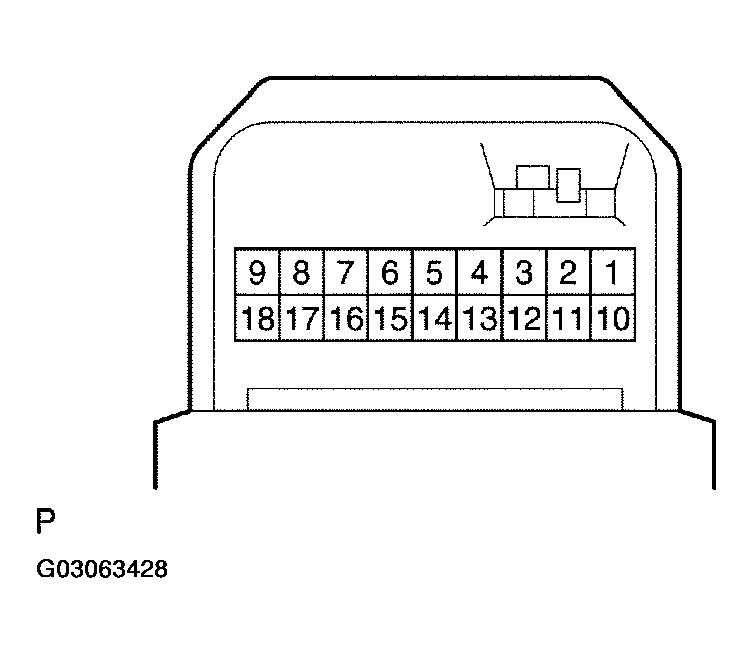

- Check the resistance between the terminals of the switch when the switch is operated.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

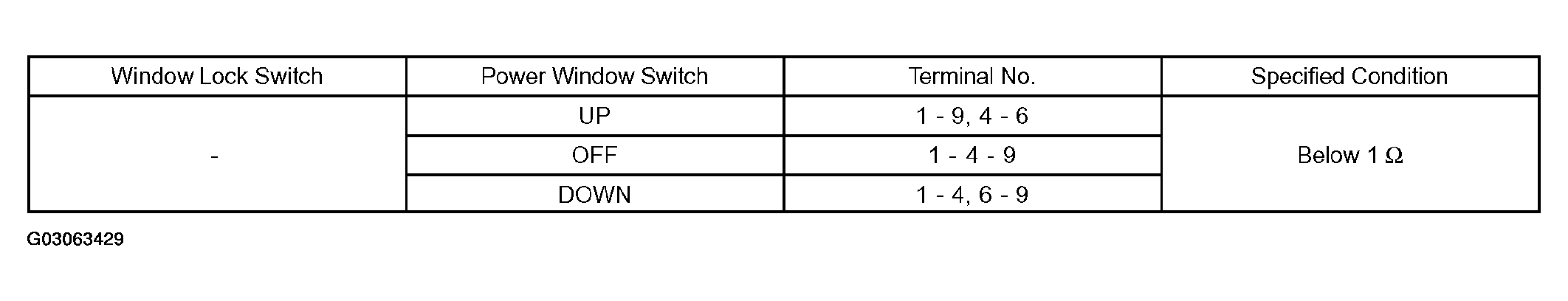

AUTO (driver side) switch

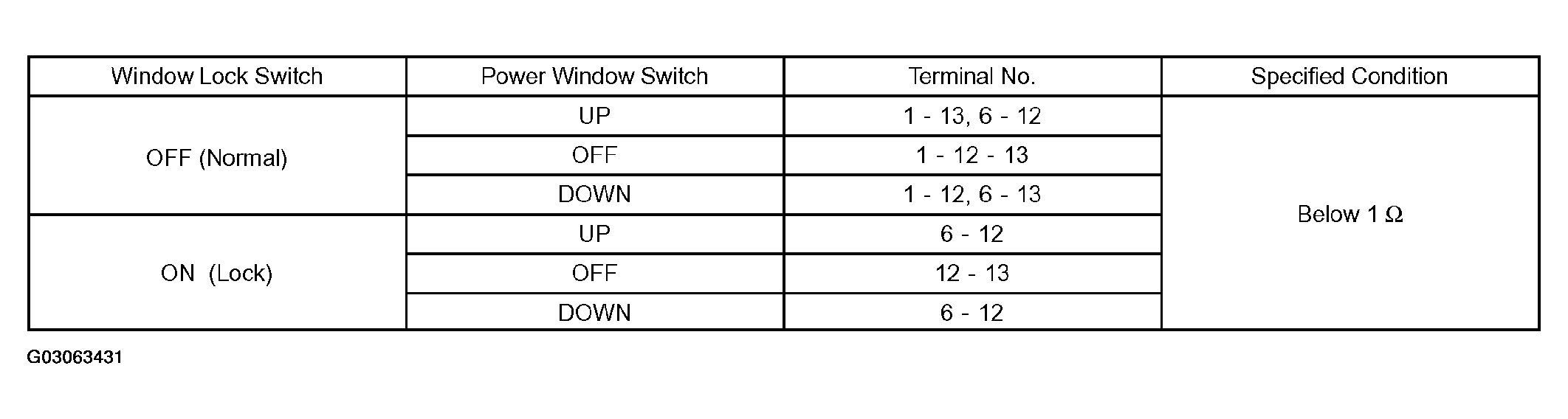

Passenger side switch

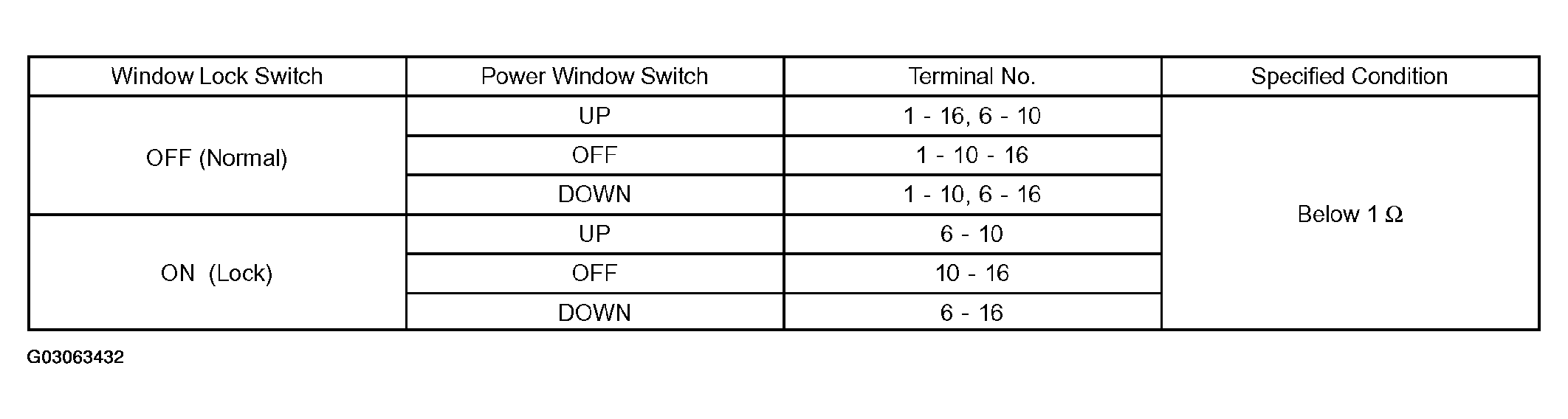

Rear LH switch
Rear RH switch
If the result is not as specified, replace the switch assy.
- Check the resistance between the terminals of the switch when the switch is operated.

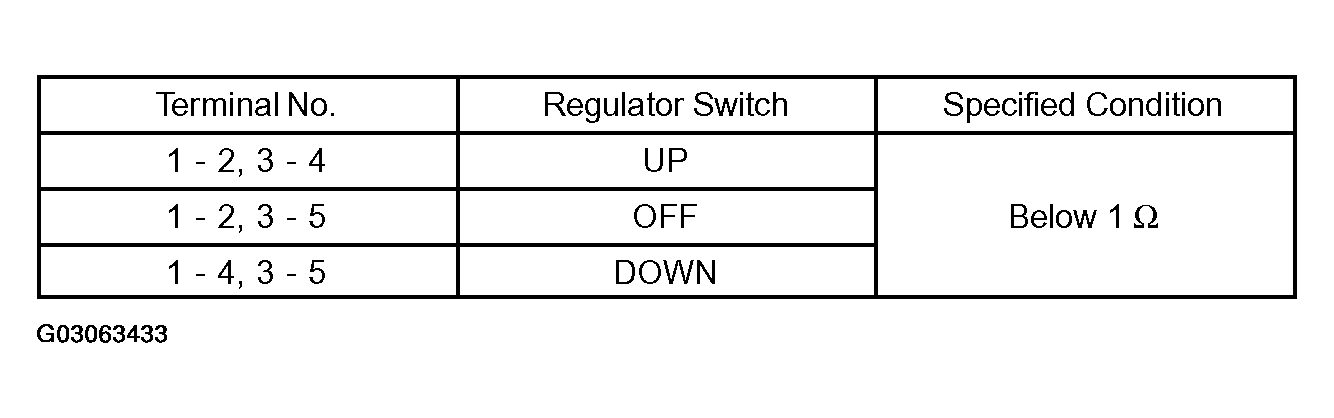

- INSPECT POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER)
- Check the resistance between the switch terminals when the switch is operated.
Standard:
- Check the resistance between the switch terminals when the switch is operated.
