Throttle Body: Installation
- INSTALL THROTTLE BODY

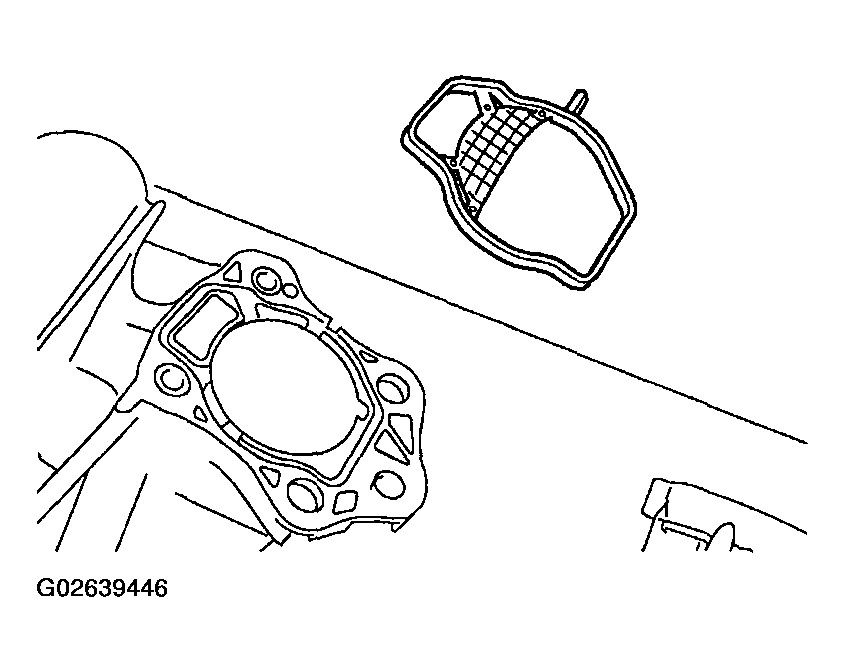

- Install a new gasket on the intake manifold, as shown in Fig 1.

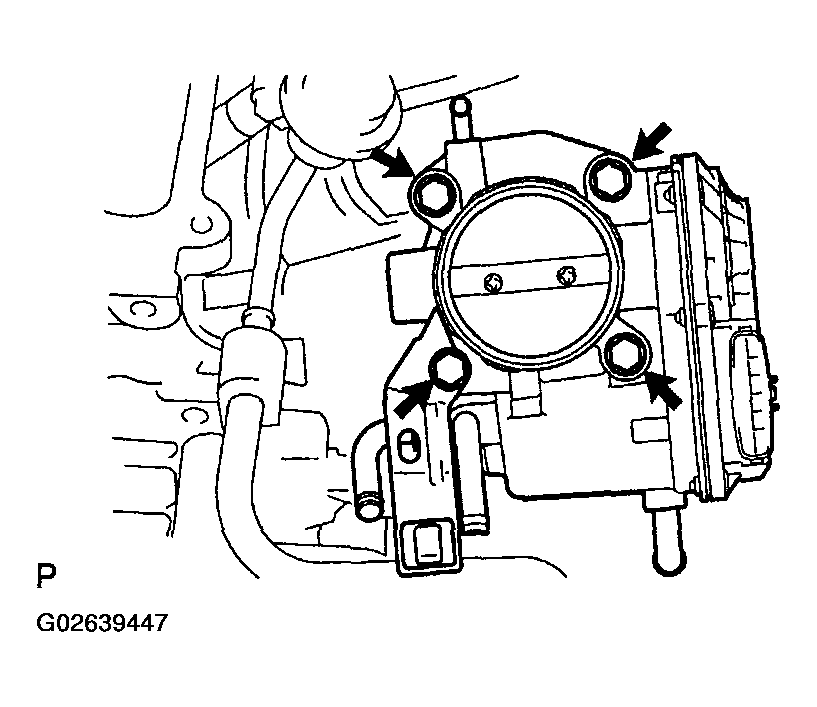

- Install the throttle body, bracket and fuel hose clamp with the 4 bolts.
Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)

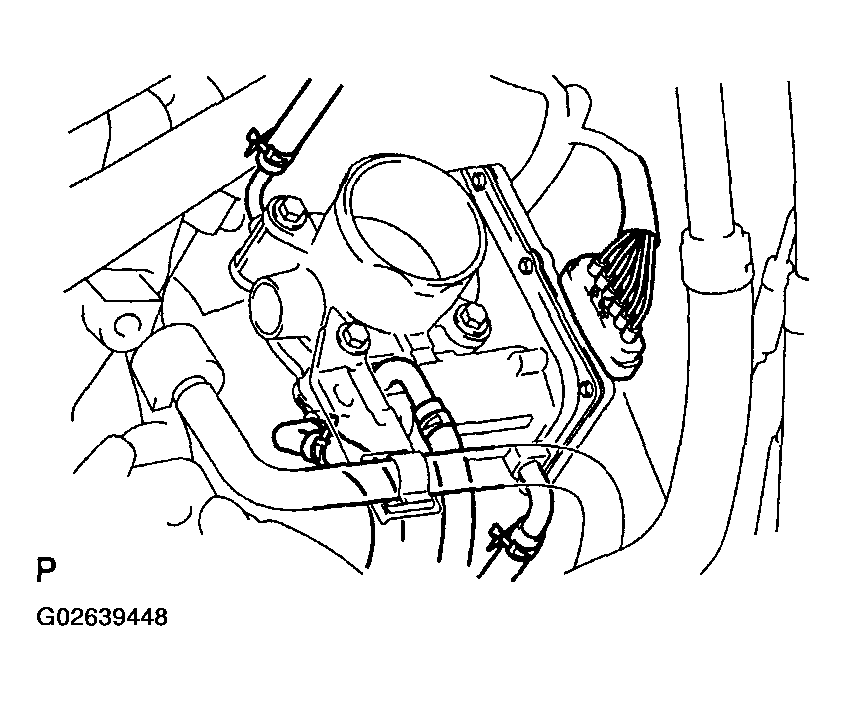

- Connect the 5 hoses to the throttle body.
- Connect the throttle position sensor & control motor connector.
- INSTALL AIR CLEANER HOSE
- INSTALL AIR CLEANER ASSEMBLY WITH MAF METER AND BRACKET
- FILL RADIATOR WITH ENGINE COOLANT
