2004 Toyota RAV4 Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE

SFI System: Injector: Installation

  1. INSTALL INJECTORS AND DELIVERY PIPES
    1. Apply a light coat of spindle oil or gasoline to a new O-ring, and install it to each injector.

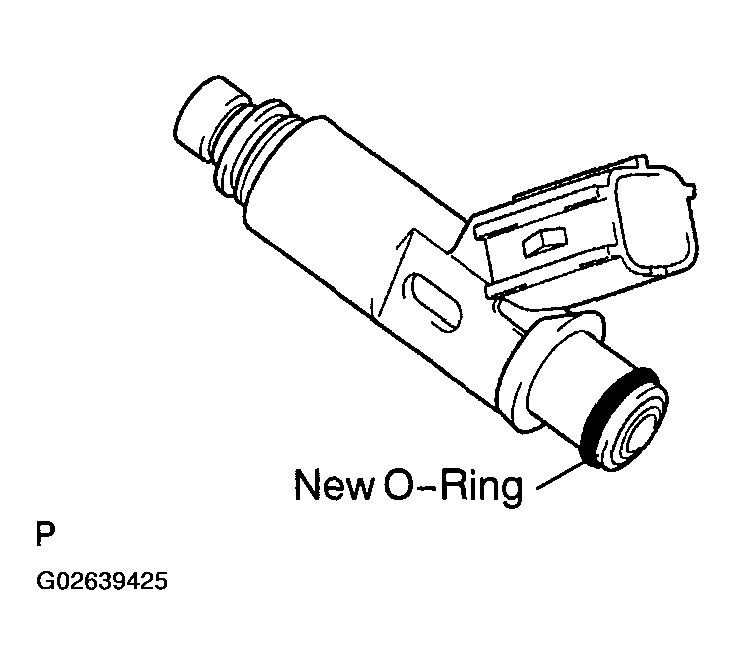

      Fig 1: Applying Light Coat Of Spindle Oil Or Gasoline To O-Ring
      G02639425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 spacers and 4 new grommets to the cylinder head.

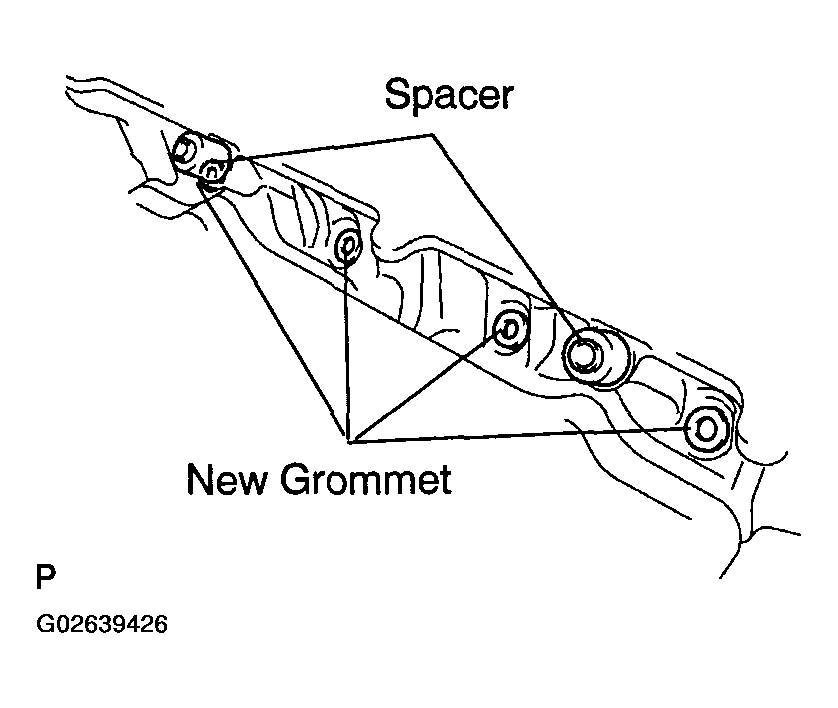

      Fig 2: Installing Spacers And Grommets To Cylinder Head
      G02639426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply a light coat of spindle oil or gasoline to the place where a delivery pipe touches the O-ring.
    4. Push the injector to the delivery pipes turning the injector as shown in Fig 3. Then install the 4 injectors.
    5. Position the injector connector downward.

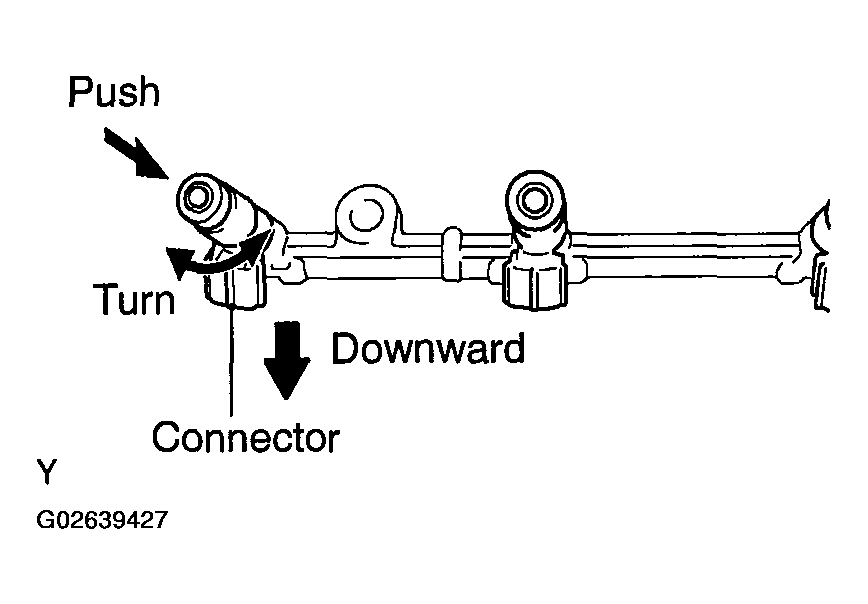

      Fig 3: Pushing Injector To Delivery Pipes & Positioning Injector Connector Downward
      G02639427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Attach the delivery pipe together with the 4 injectors to the cylinder head.
    7. Temporarily install the 2 bolts holding the delivery pipe to the cylinder head.

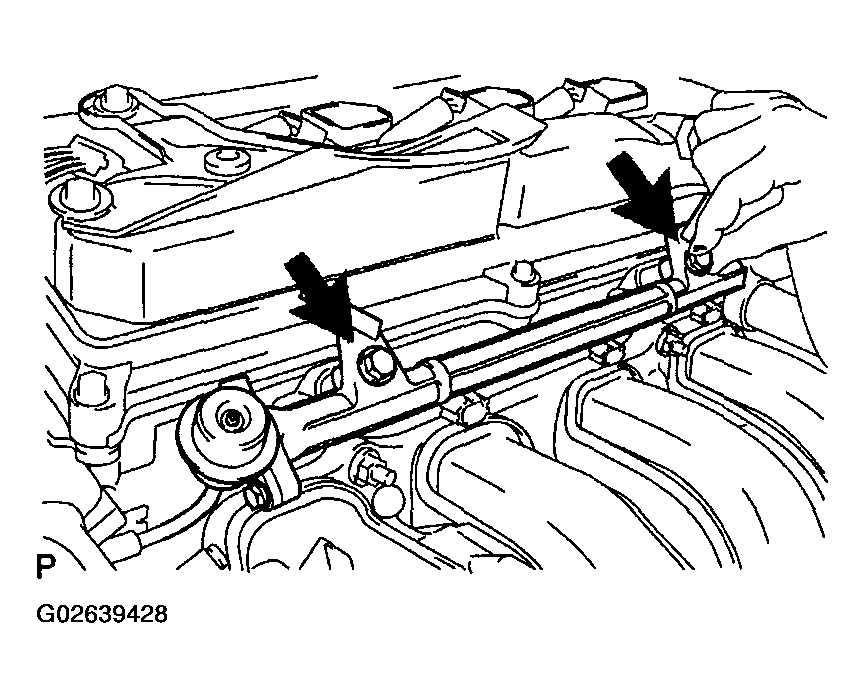

      Fig 4: Installing Bolts Holding Delivery Pipe To Cylinder Head
      G02639428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Check that the injectors rotate smoothly.

      HINT:

      If injectors do not rotate smoothly, the possible cause is incorrect installation of the O-ring. Replace the O-ring.

    9. Position the injector connector downward.

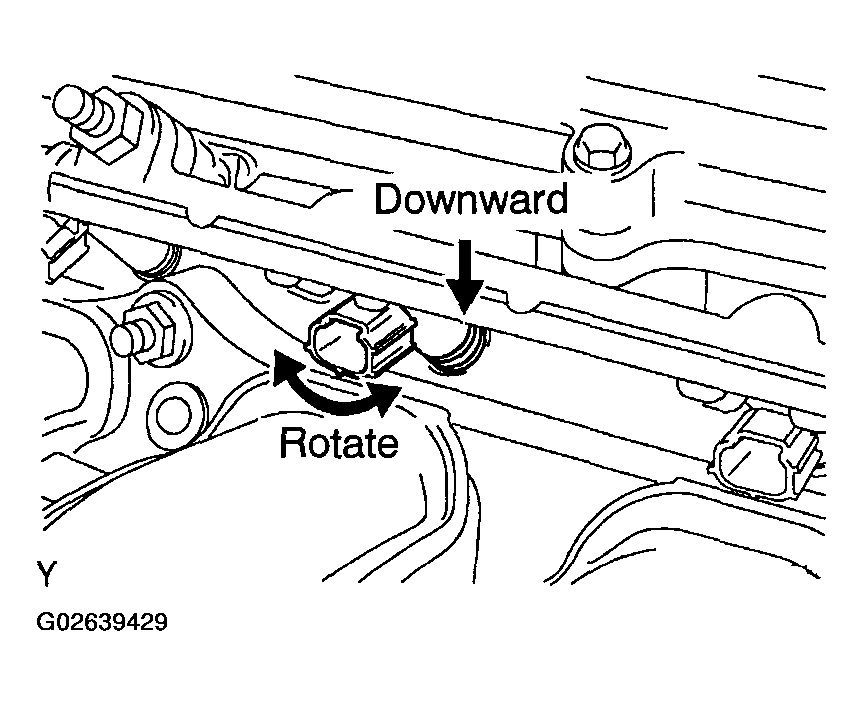

      Fig 5: Checking Injectors Rotate Smoothly & Positioning Injector Connector Downward
      G02639429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Tighten the 2 bolts holding the delivery pipe to the cylinder head.

      Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)

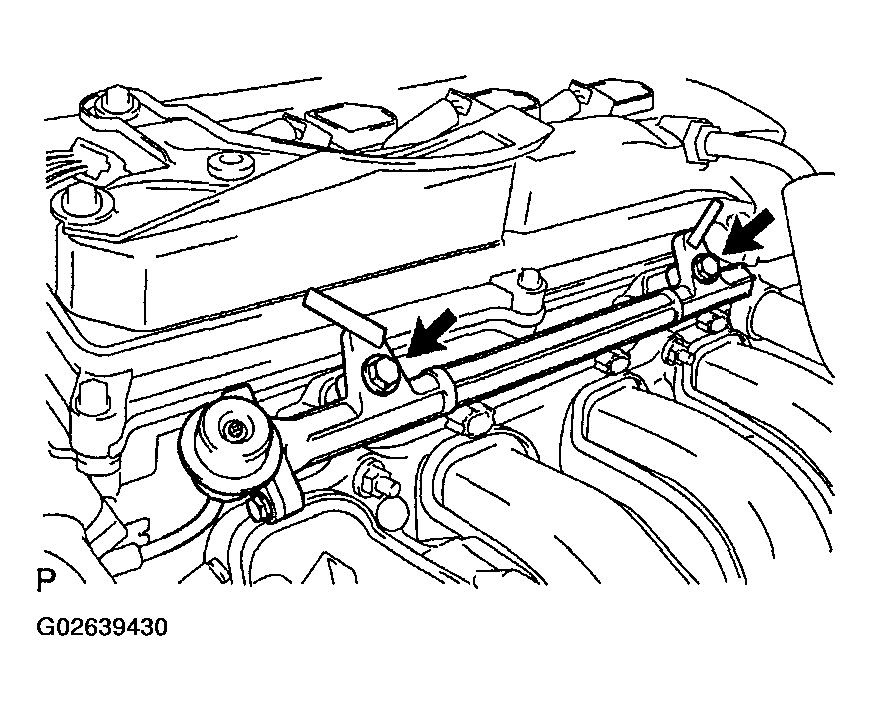

      11. Fig 6: Tightening Bolts Holding Delivery Pipe To Cylinder Head
      G02639430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the 4 injector connectors.
  2. INSTALL AIR CLEANER ASSEMBLY WITH MAF METER
  3. CONNECT PCV HOSE
