A/F Sensor Heater Relay: Inspection
- REMOVE RELAY BOX COVER

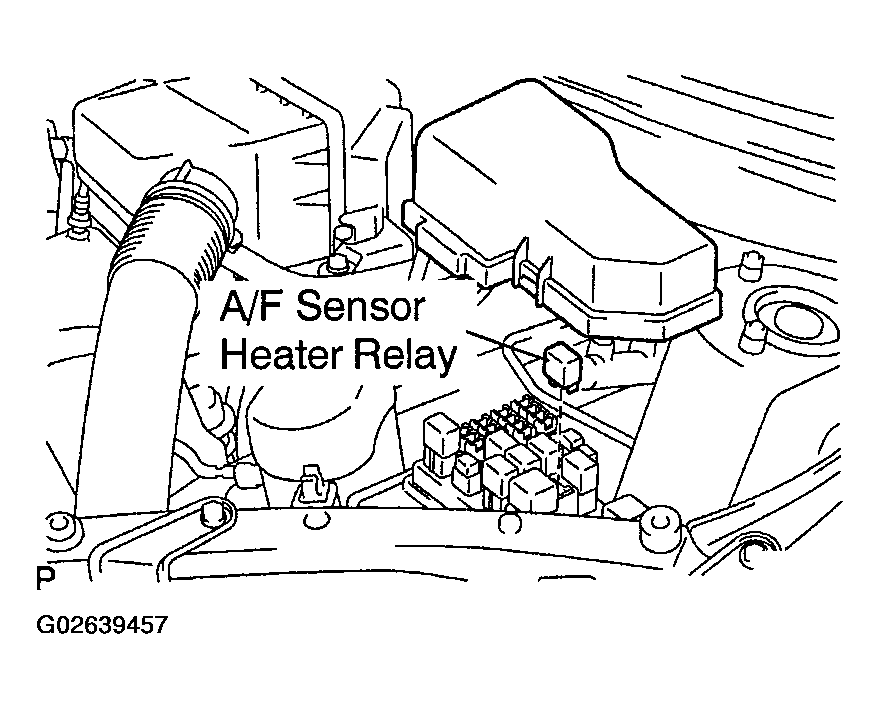

- REMOVE A/F SENSOR HEATER RELAY (Marking: A/F)
- INSPECT A/F SENSOR HEATER RELAY
- Inspect the relay continuity.

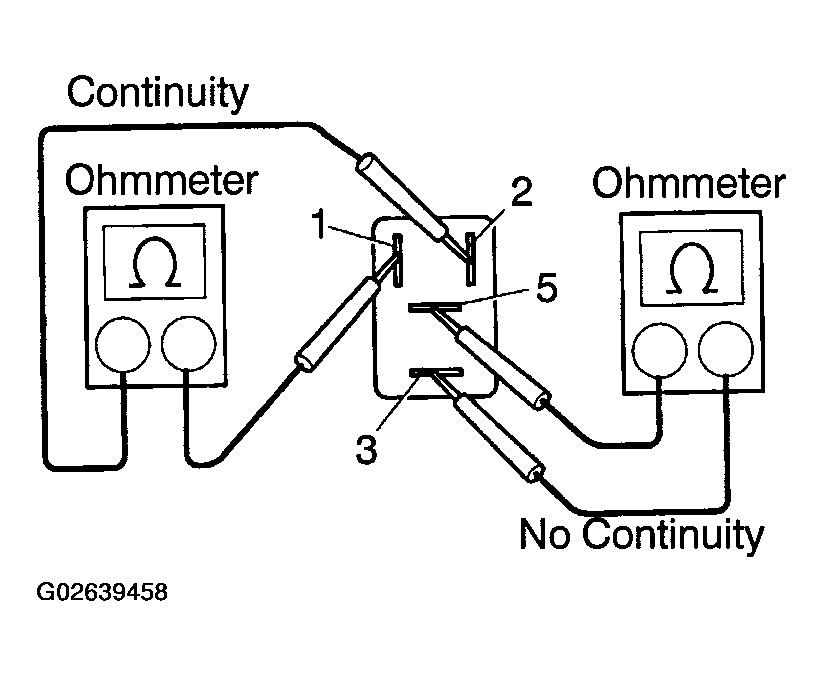

- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
- Inspect the relay operation.

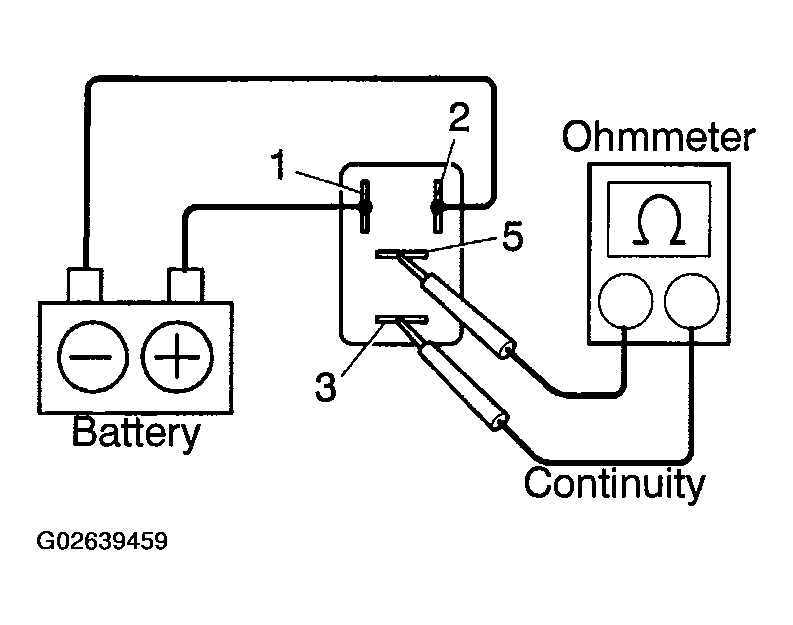

- Apply battery positive voltage to terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
- Inspect the relay continuity.
- REINSTALL A/F SENSOR HEATER RELAY
- REINSTALL RELAY BOX COVER
