2004 Toyota RAV4 Base, AWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Ignition Relay (No. 2): Inspection

REMOVE IGNITION RELAY (Marking: IG2)

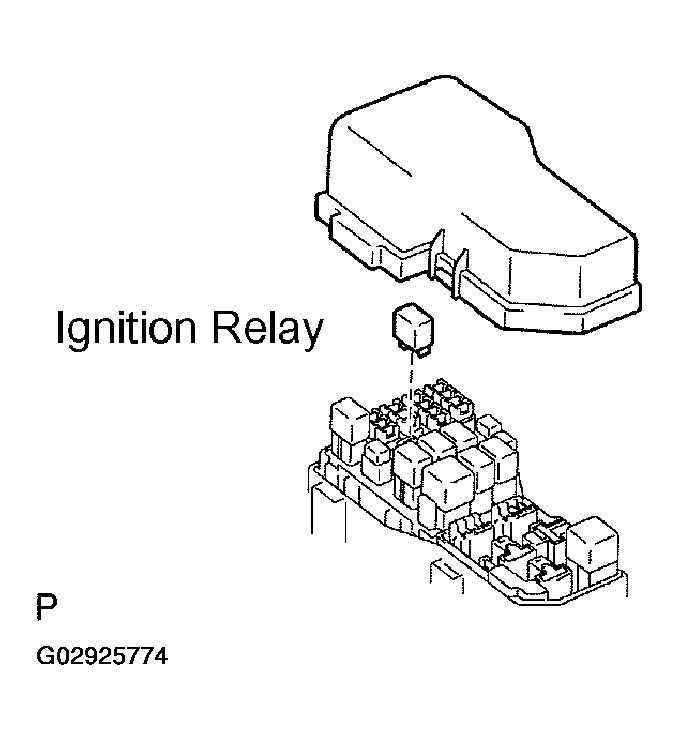

Fig 1: Removing Ignition Relay (IG2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT IGNITION RELAY

Check the resistance of the IG relay.

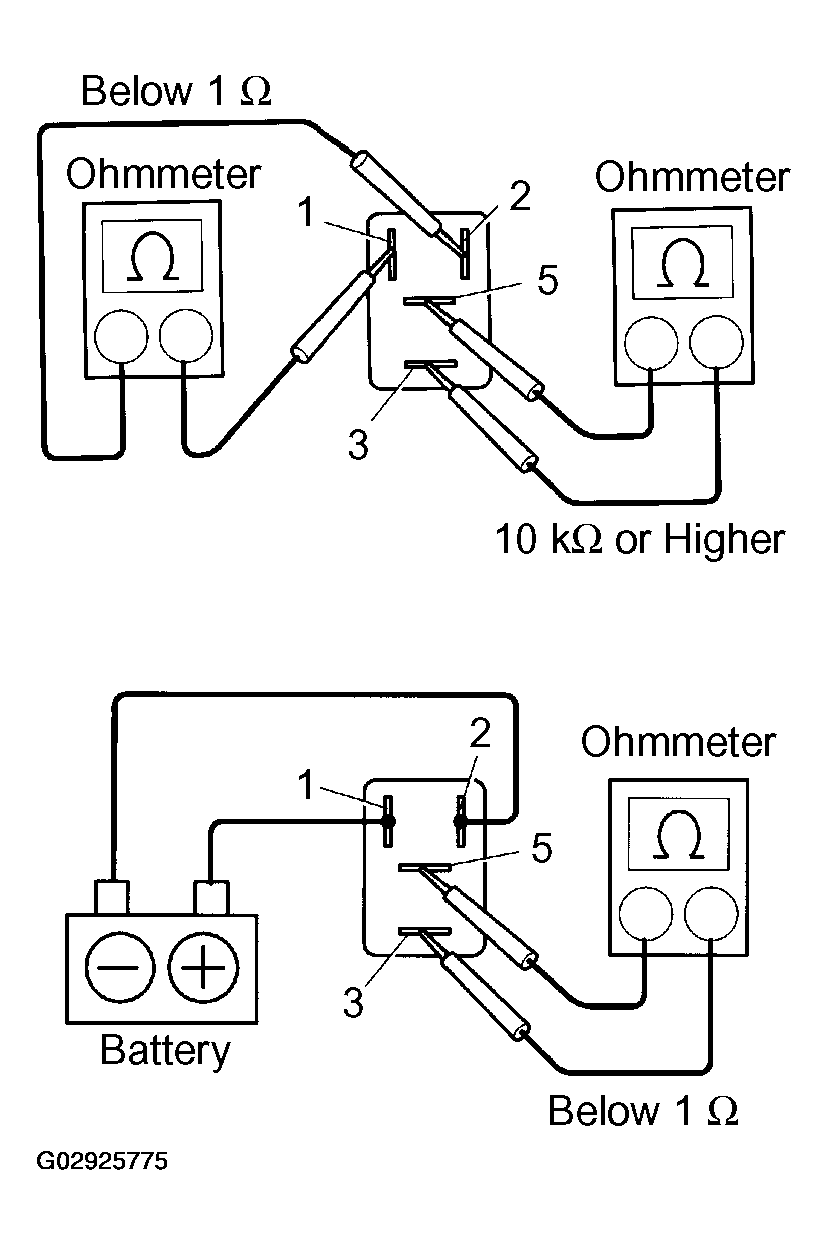

Fig 2: Checking Resistance Of IG Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

IG RELAY CONNECTOR TERMINALS SPECIFIED CONDITION

Tester Condition	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

If the result is not as specified, replace the relay.

REINSTALL IGNITION RELAY
