Heated Oxygen Sensor: Inspection
- INSPECT HEATER RESISTANCE OF OXYGEN SENSOR
- Disconnect the sensor connector.

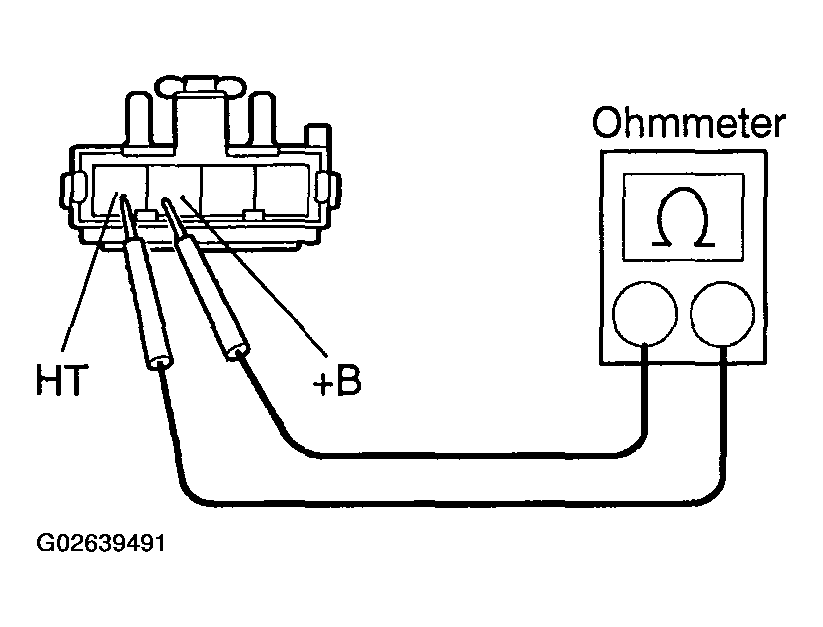

- Using an ohmmeter, measure the resistance between terminals +B and HT.
Resistance: 11 to 16 Ω at 20°C (68°F)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the resistance is not as specified, replace the sensor.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
- Reconnect the sensor connector.
- INSPECT OPERATION OF HEATED OXYGEN SENSOR (See DTC P0136: OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 2) )
