2004 Toyota RAV4 Base, AWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Window Control System: Troubleshooting
MALFUNCTION SYMPTOMS
| Malfunction Symptoms | Applicable Chart |
|---|---|
| Window does not move up and down with one-touch power window function (AUTO operation function). | 1 |
| During AUTO UP operation, window moves down. | 2 |
| Window does not move down even though something is caught between window and vehicle body. | 3 |

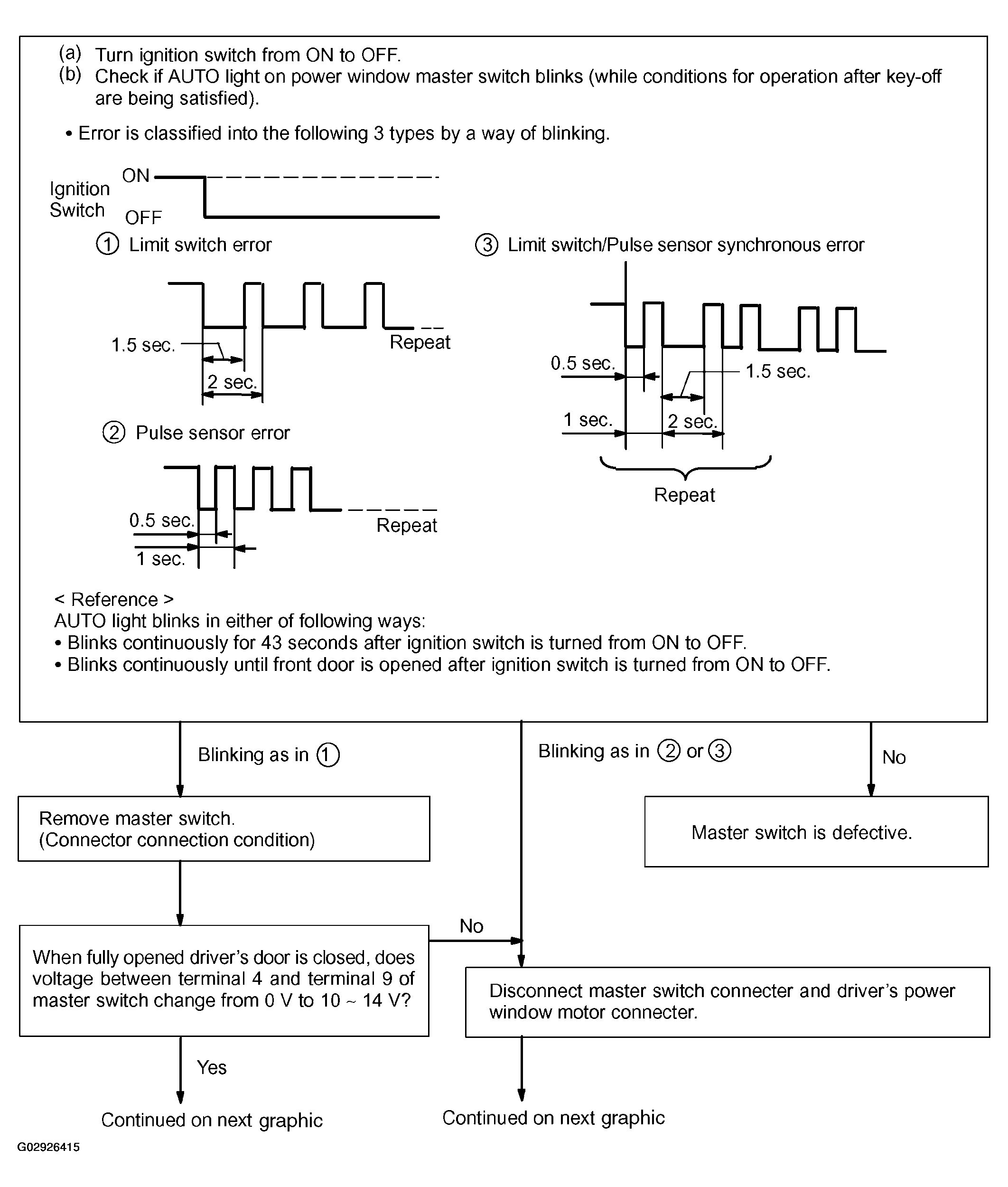

- Window does not move up and down with one-touch power window function.
