Light Control: Notes
| DISPLAY (ITEM) | DEFAULT | CONTENTS | SETTING | ||
|---|---|---|---|---|---|
| SENSITIVITY | NORMAL | To adjust the sensitivity of the lighting illumination. Refer to the *1 illustration. | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 | ||
| DISP EX ON SEN | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock lamp. Refer to the illustration *2. | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 | ||
| DISP EX OFF SEN | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock. Refer to the illustration *3. | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 | ||
| DRL FUNCTION ((1)) | ON | ON/OFF of the DRL function. | ON / OFF | ||
|
|||||

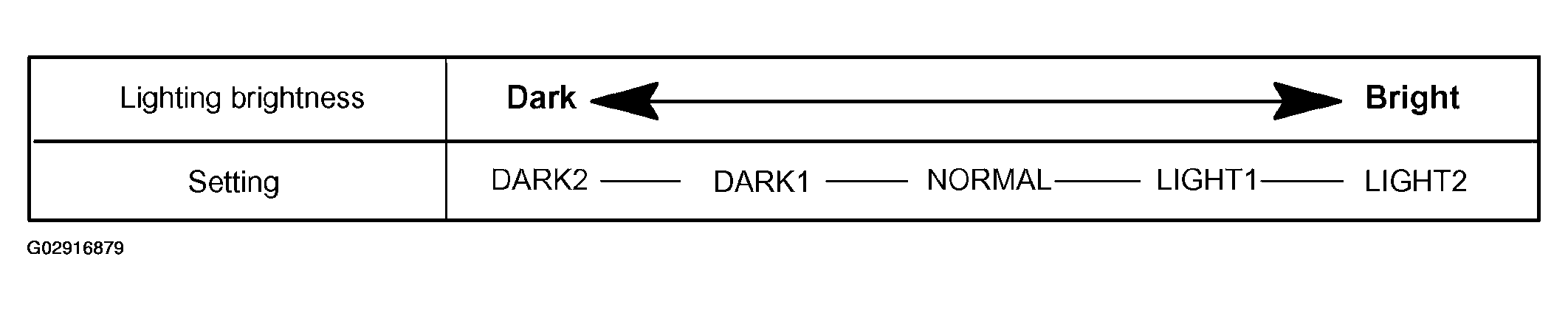

Illustration of *1

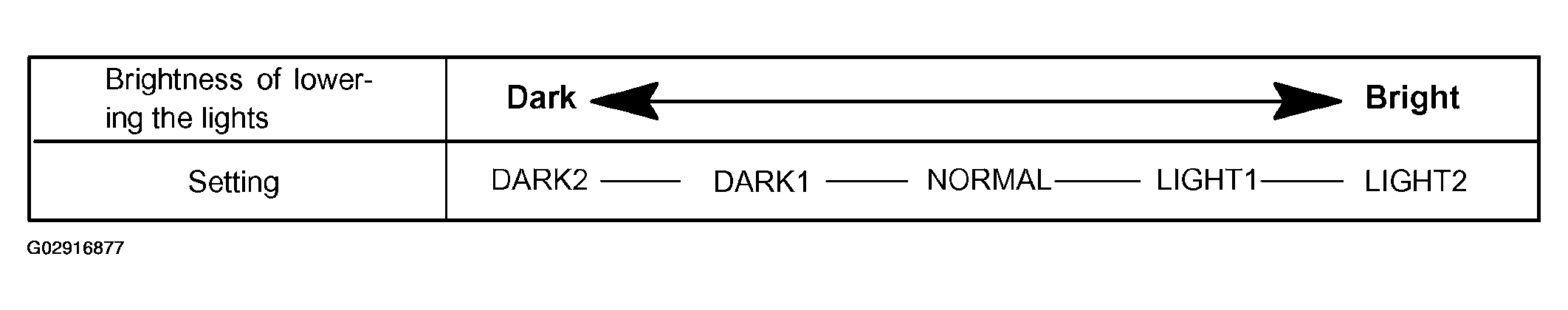

Illustration of *2

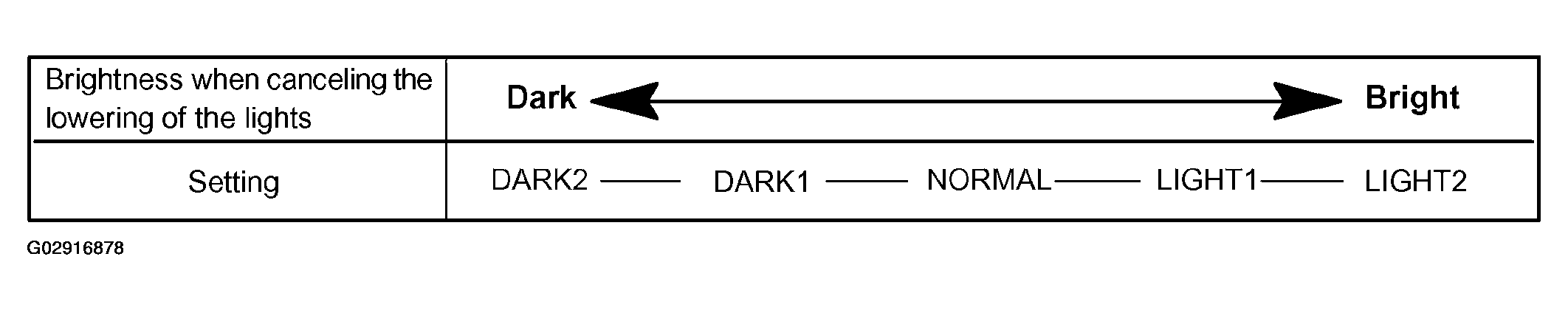

Illustration of *3
