2004 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Mass Air Flow Meter (1NZ-FXE): Replacement
- REMOVE REAR FLOOR BOARD NO.2 (See REPLACEMENT )
- REMOVE DECK FLOOR BOX REAR (See REPLACEMENT )
- REMOVE REAR FLOOR BOARD NO.3 (See REPLACEMENT )
- DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL) (See REPLACEMENT )

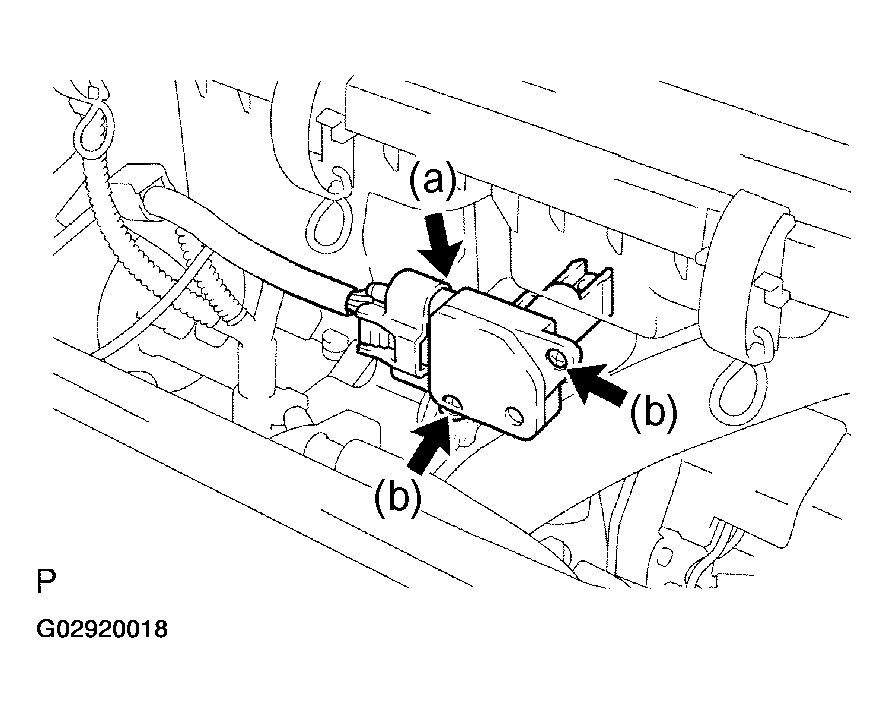

- REMOVE MASS AIR FLOW METER
- Disconnect the mass air flow meter connector.
- Remove the 2 screws, then remove the mass air flow meter.
- INSTALL MASS AIR FLOW METER NOTE: Be careful that the O-ring is not cracked or jammed when installing.
- CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL) (See REPLACEMENT )
- INSTALL REAR FLOOR BOARD NO.3
- INSTALL DECK FLOOR BOX REAR
- INSTALL REAR FLOOR BOARD NO.2
- POWER WINDOW CONTROL SYSTEM INITIALIZE (See INTRODUCTION )
