2004 Toyota PriusFACTORY OEM SERVICE PROCEDURE

ECM (1NZ-FXE): Replacement

  1. REMOVE REAR FLOOR BOARD NO.2 (See  REPLACEMENT  )
  2. REMOVE DECK FLOOR BOX REAR (See  REPLACEMENT  )
  3. REMOVE REAR FLOOR BOARD NO.3 (See  REPLACEMENT  )
  4. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL) (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1 (See  INSTRUMENT PANEL/METER  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See  INSTRUMENT PANEL/METER  )
  7. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (See  INSTRUMENT PANEL/METER  )
  8. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3 (See  INSTRUMENT PANEL/METER  )
  9. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.4 (See  INSTRUMENT PANEL/METER  )
  10. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2 (See  INSTRUMENT PANEL/METER  )
  11. REMOVE MULTI-DISPLAY ASSY (See  AUDIO & VISUAL SYSTEM  )
  12. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See  INSTRUMENT PANEL/METER  )
  13. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  INSTRUMENT PANEL/METER  )
  14. REMOVE INSTRUMENT PANEL CUSHION
  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL END
  16. REMOVE INSTRUMENT PANEL HOLE COVER (See  INSTRUMENT PANEL/METER  )
  17. REMOVE GLOVE COMPARTMENT DOOR (See  INSTRUMENT PANEL/METER  )
  18. REMOVE INSTR PANEL SPEAKER PANEL SUB-ASSY NO.1 W/CTR SPEAKER (W/ JBL SOUND SYSTEM) (See  AUDIO & VISUAL SYSTEM  )
  19. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH (See  EXTERIOR/INTERIOR TRIM  )
  20. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH (See  EXTERIOR/INTERIOR TRIM  )
  21. REMOVE FRONT PILLAR GARNISH LH (See  EXTERIOR/INTERIOR TRIM  )
  22. REMOVE FRONT PILLAR GARNISH RH (See  EXTERIOR/INTERIOR TRIM  )
  23. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  AIR BAG RESTRAINT SYSTEMS  )
  24. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (See  INSTRUMENT PANEL/METER  )
  25. REMOVE HEATER TO REGISTER DUCT NO.3 (See  OVERHAUL  )
  26. REMOVE ECM
    1. Disconnect the 4 ECM connectors.
    2. Disconnect the 4 hybrid vehicle control ECU connectors.

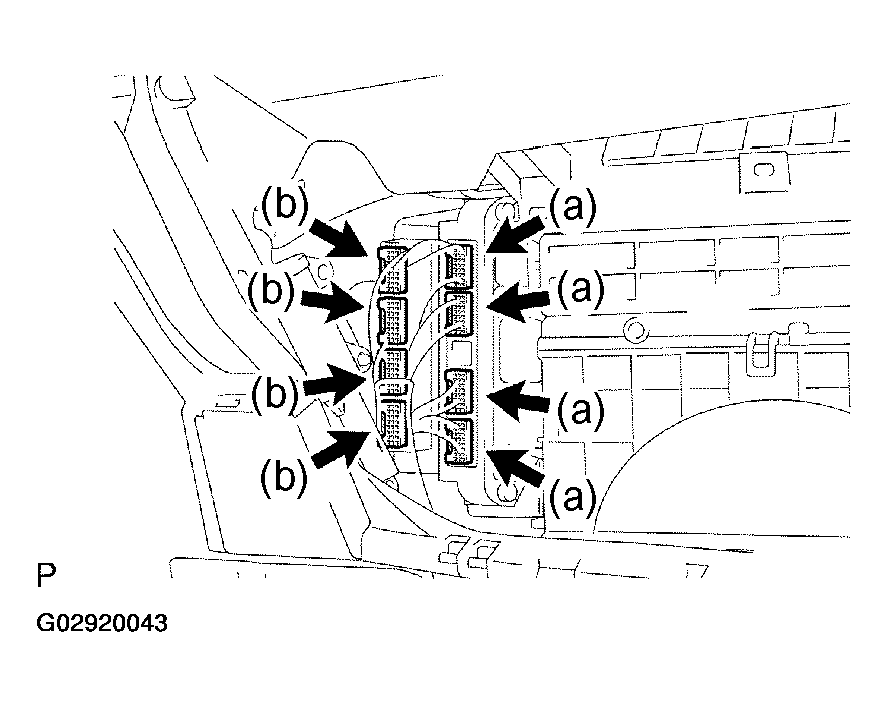

      Fig 1: Locating 4 ECM Connectors & 4 Hybrid Vehicle Control ECU Connectors
      G02920043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and nut, then remove the ECM.

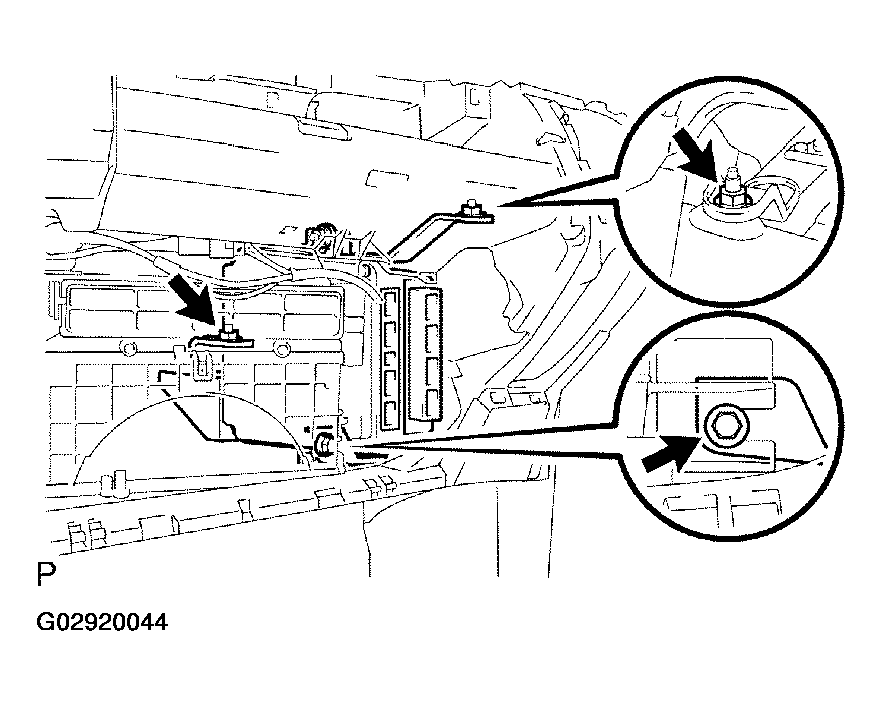

      Fig 2: Locating 2 Bolts, Nut Of ECM
      G02920044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts, then remove the ECM.

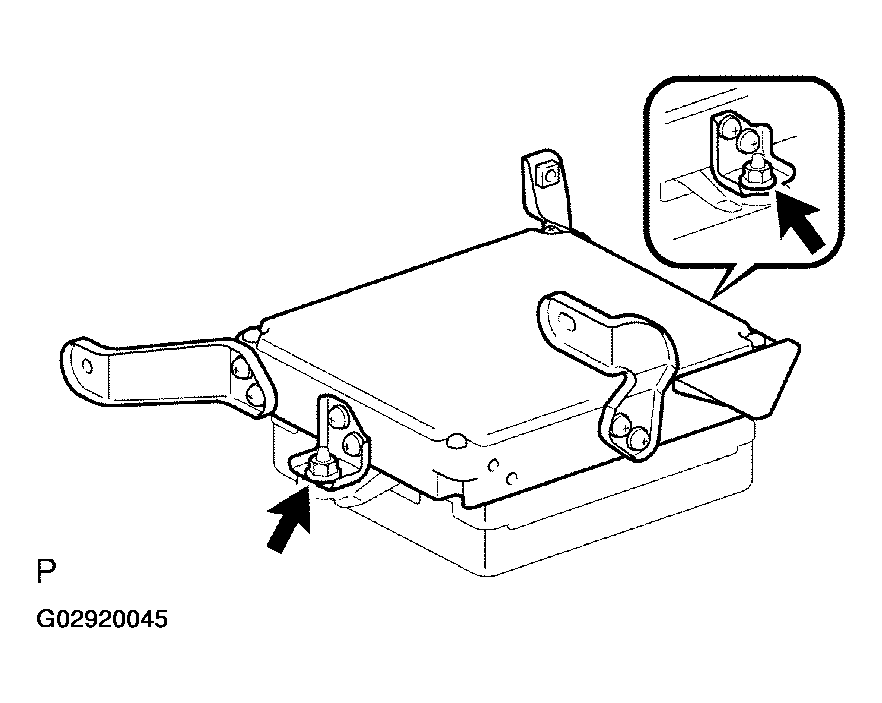

      Fig 3: Locating 2 Nuts Of ECM
      G02920045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 6 screws, then remove the 3 ECM brackets No. 1.

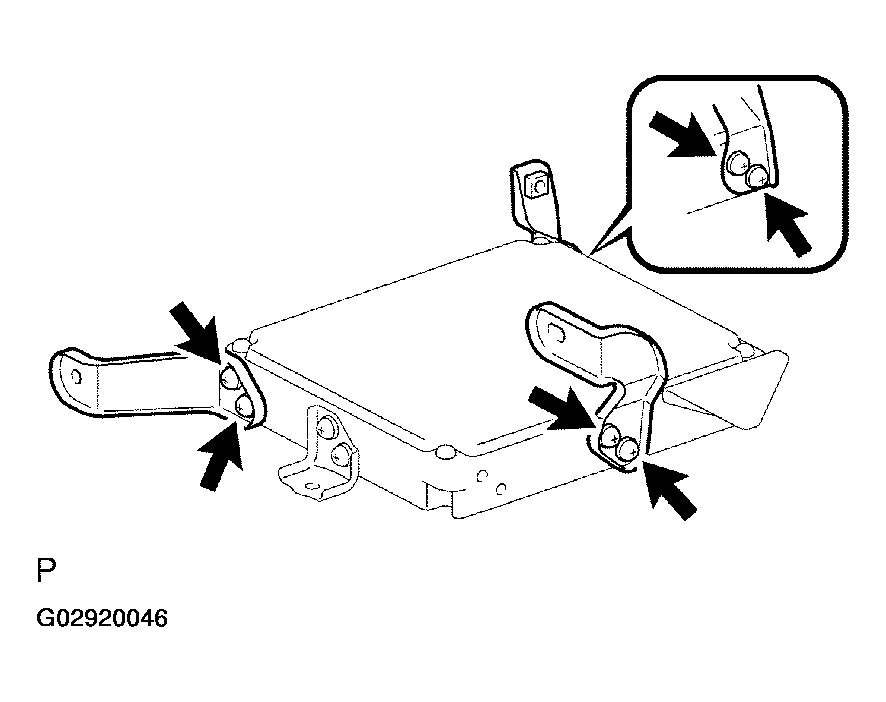

      Fig 4: Locating 6 Screws Of 3 ECM Brackets No. 1
      G02920046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 screws, then remove the 2 ECM brackets No. 2.

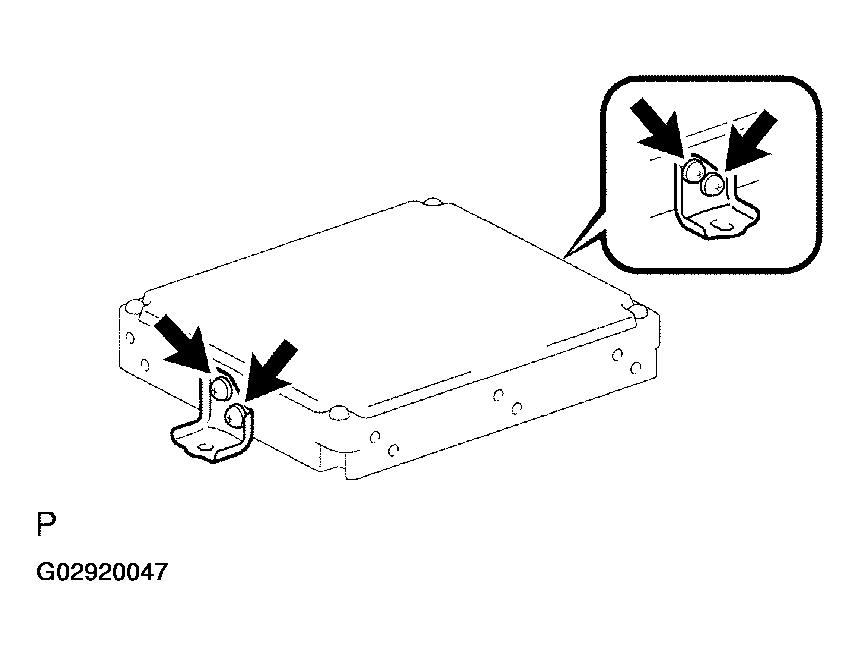

      Fig 5: Locating 4 Screws Of 2 ECM Brackets No.2
      G02920047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 screws, then remove the ECM bracket No. 3.

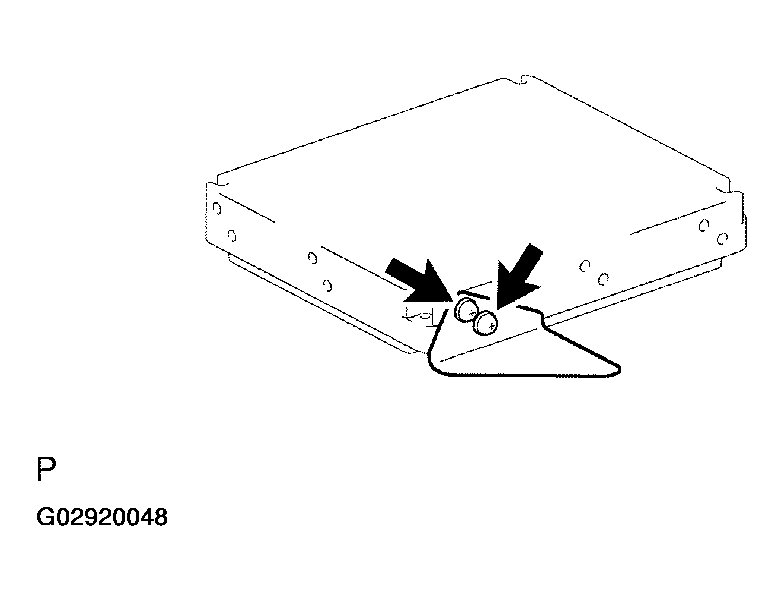

      Fig 6: Locating 2 Screws Of ECM Bracket No.3
      G02920048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL ECM
    1. Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)
  28. INSTALL HEATER TO REGISTER DUCT NO.3
  29. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
  30. CONNECT PASSENGER AIRBAG CONNECTOR
  31. INSTALL FRONT PILLAR GARNISH RH
  32. INSTALL FRONT PILLAR GARNISH LH
  33. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH
  34. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH
  35. INSTALL INSTR PANEL SPEAKER PANEL SUB-ASSY NO.1 W/CTR SPEAKER (W/ JBL SOUND SYSTEM)
  36. INSTALL GLOVE COMPARTMENT DOOR
  37. INSTALL INSTRUMENT PANEL HOLE COVER
  38. INSTALL INSTRUMENT CLUSTER FINISH PANEL END
  39. INSTALL INSTRUMENT PANEL CUSHION
  40. INSTALL GLOVE COMPARTMENT DOOR ASSY
  41. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY
  42. INSTALL MULTI-DISPLAY ASSY
  43. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.2
  44. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.4
  45. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.3
  46. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER
  47. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
  48. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.1
  49. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL) (See  REPLACEMENT  )
  50. INSPECT SRS WARNING LIGHT (See  AIR BAG RESTRAINT SYSTEMS  )
  51. INSTALL REAR FLOOR BOARD NO.3
  52. INSTALL DECK FLOOR BOX REAR
  53. INSTALL REAR FLOOR BOARD NO.2
  54. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INTRODUCTION  )
