2004 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Service Data

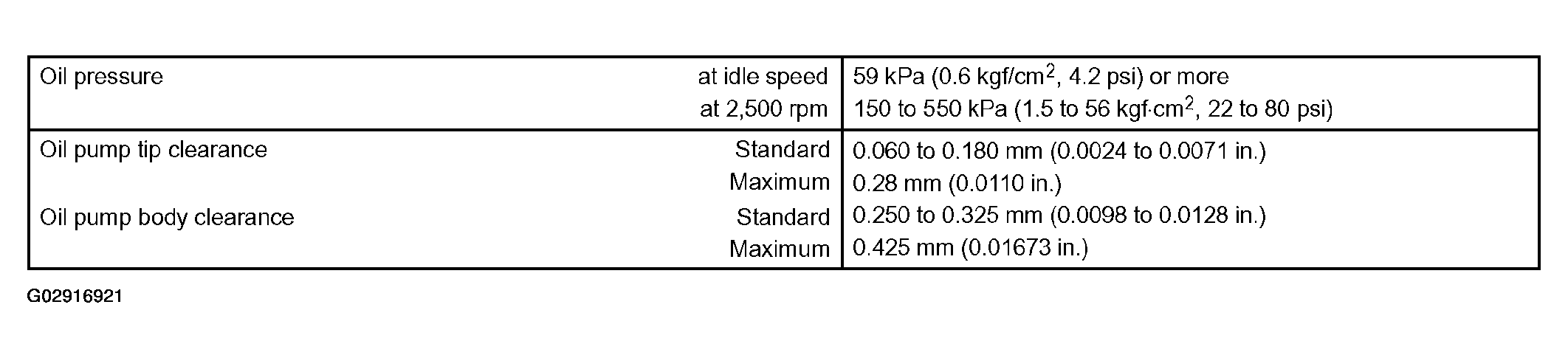

LUBRICATION SERVICE SPECIFICATION TABLE
| Oil pressure | at idle speed | 59 kPa (0.6 kgf/cm2 , 4.2 psi) or more |
| at 2,500 rpm | 150 to 550 kPa (1.5 to 56 kgf.cm2 , 22 to 80 psi) | |
| Oil pump tip clearance | Standard | 0.060 to 0.180 mm (0.0024 to 0.0071 in.) |
| Maximum | 0.28 mm (0.0110 in.) | |
| Oil pump body clearance | Standard | 0.250 to 0.325 mm (0.0098 to 0.0128 in.) |
| Maximum | 0.425 mm (0.01673 in.) |
