2004 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Power Switch: Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (See INSTRUMENT PANEL SUB-ASSY )
REMOVE POWER SWITCH
1. Disconnect the connector.
2. Disengage the 2 clips and remove the power switch.
CONNECT BATTERY NEGATIVE TERMINAL
NOTE: When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.
SYSTEM INITIALIZE

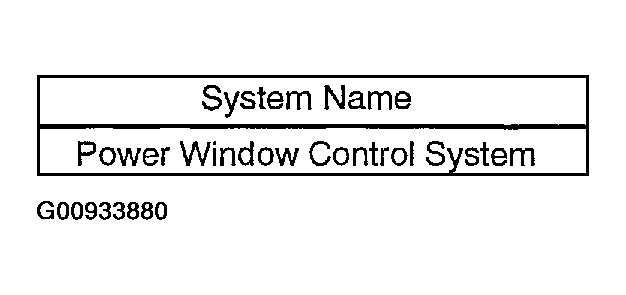

Fig 1: System Initialize Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
