2004 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Fuel System: Inspection

INSPECT FUEL INJECTOR ASSY

Inspect the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard:

FUEL INJECTOR ASSY RESISTANCE STANDARD (1 OF 2)

Tester Connection	Specified Condition
1 - 2	13.45 to 14.15 Ω at 21 °C (68°F)

If the resistance is not as specified, replace the fuel injector.

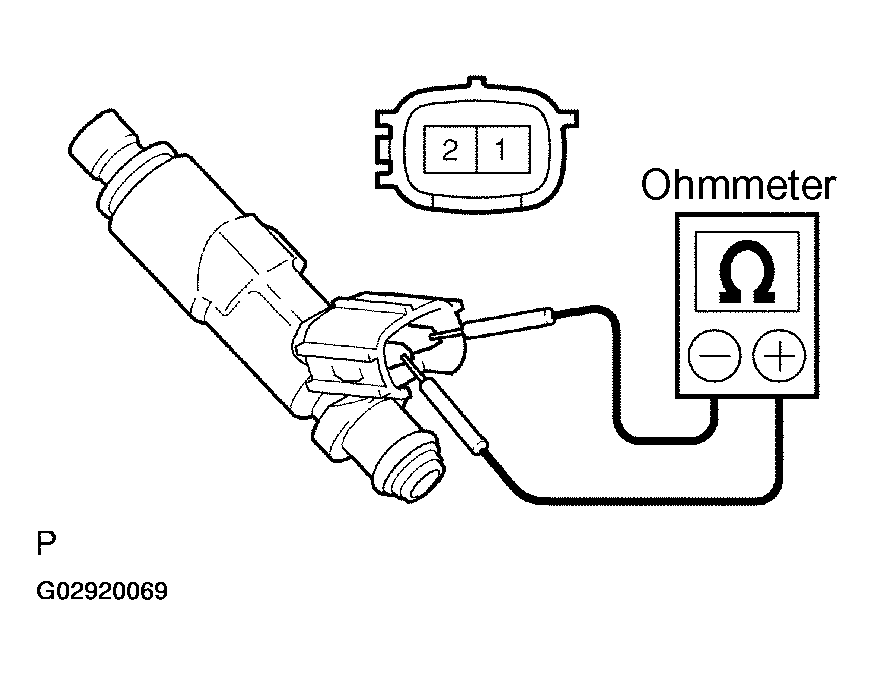

Fig 1: Measuring Resistance Between Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inspect the injection volume.
NOTE:
- Perform the test in a well-ventilated area and watch out for flames.
- Carefully handle the fuel tube connector.
1. Prepare a new fuel tube.
  HINT:

  Part No. 23901-21080
2. Using a cutter knife, cut off the protector of the fuel tube as illustrated. Tear off the protector by hand, then remove the fuel tube connector.

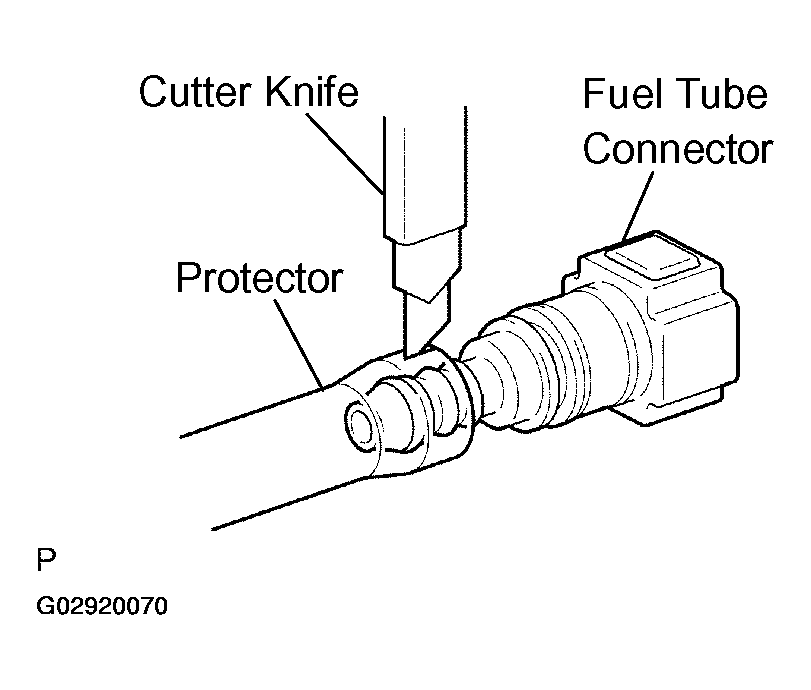

  Fig 2: Cutting Protector Of Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
