2004 Toyota Matrix Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Proportioning Valve ASSY: Replacement

REMOVE PROPORTIONING VALVE ASSY
1. Using SST, disconnect the 5 brake tubes from the proportioning valve assy.
  SST 09023-00100

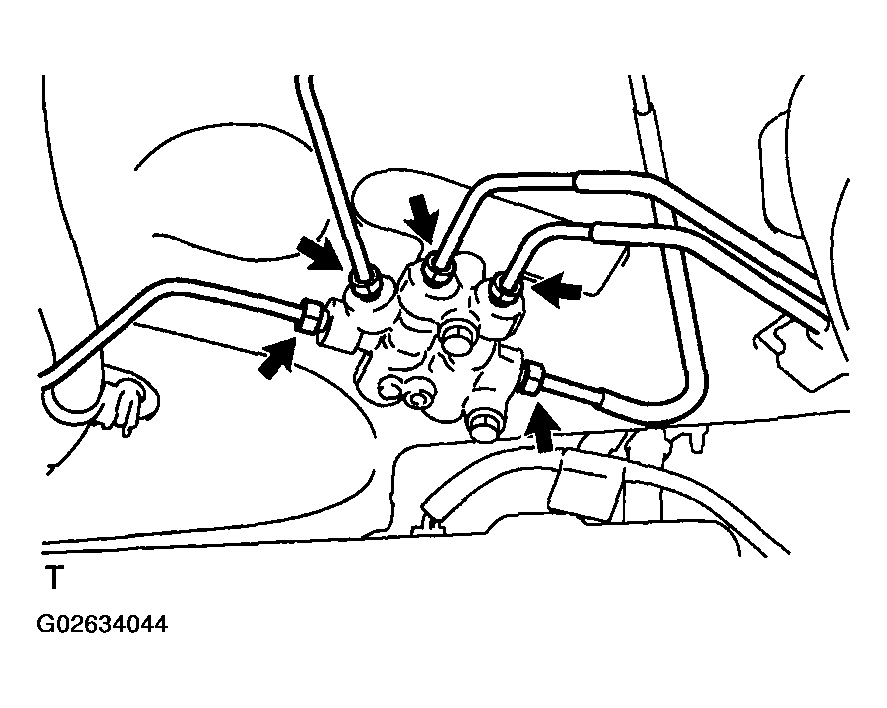

  Fig 1: Disconnecting 5 Brake Tubes From Proportioning Valve Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and proportioning valve assy from the body.

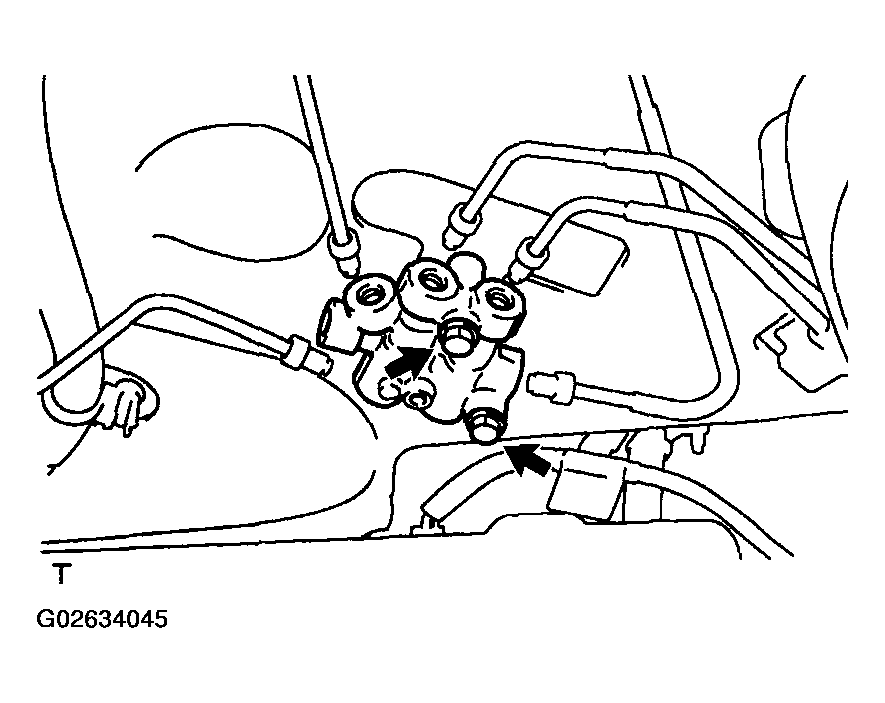

  Fig 2: Removing Bolts And Proportioning Valve Assy From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PROPORTIONING VALVE ASSY
1. Install the proportioning valve assy with the 2 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  Fig 3: Installing Proportioning Valve Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, connect the 5 brake tubes to the proportioning valve assy.
  SST 09023-00100

  Torque: 15.2 N.m (155 kgf.cm, 11 ft.lbf)

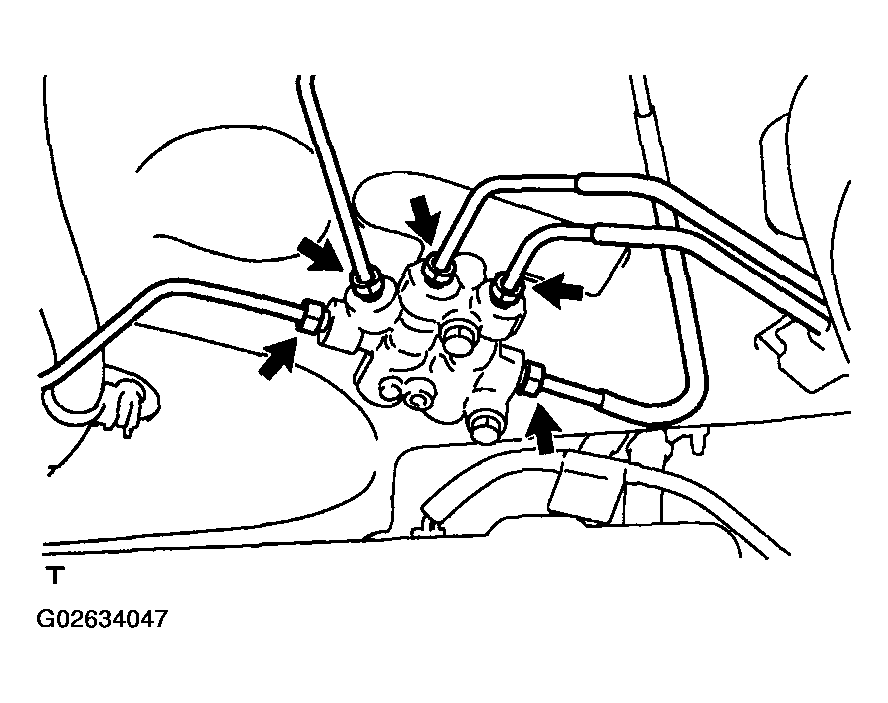

  Fig 4: Connecting Brake Tubes To Proportioning Valve Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID
BLEED MASTER CYLINDER (See BRAKE FLUID )
SST 09023-00100
BLEED BRAKE LINE (See BRAKE FLUID )
CHECK FLUID LEVEL IN RESERVOIR
