Back Door Glass: Replacement
Installation is in the reverse order of the removal.
- REMOVE BACK DOOR PANEL SUB-ASSY UPPER OUTER
- Remove the 2 nuts and rear stoplight cover.

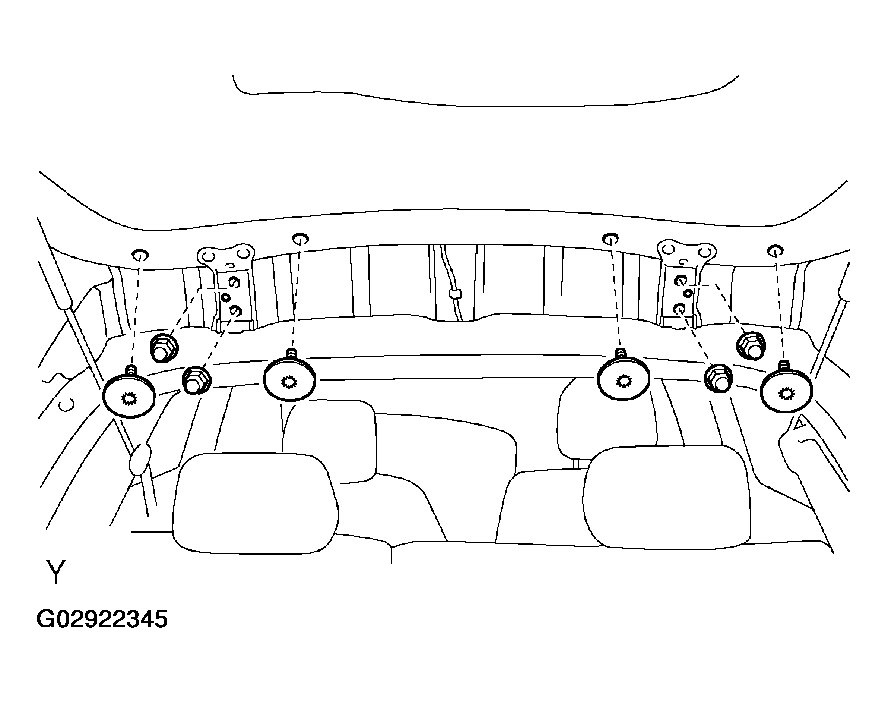

- Using a torx wrench (T30), remove the 4 screws.
- Remove the 4 nuts.

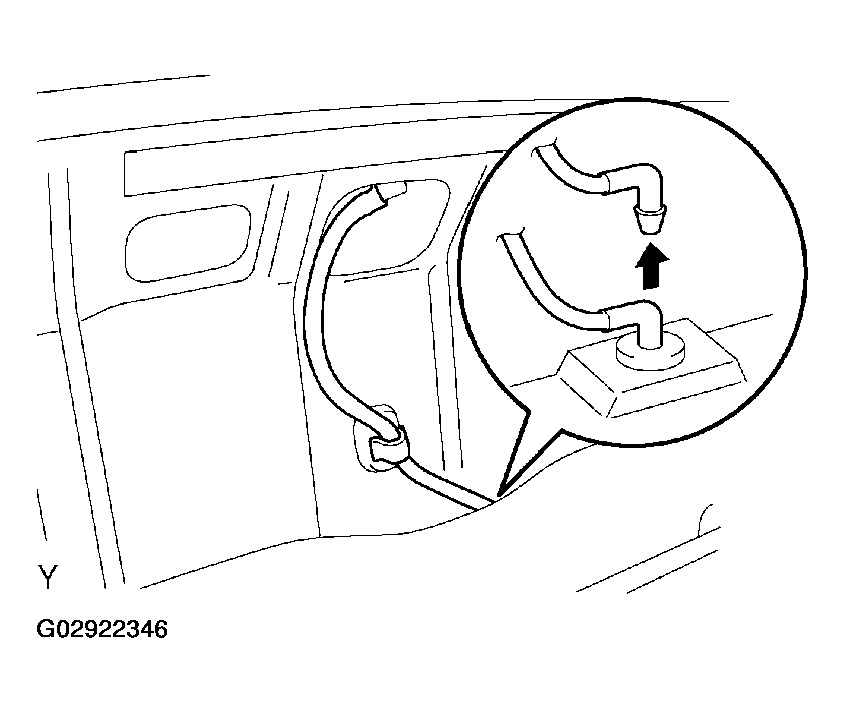

- Remove the hose.
- Using a knife, cut off the adhesive tape as shown in Fig 3 .
- Remove the back door panel upper outer, and then disconnect the clamp.NOTE: Do not damage the back door glass with the knife.
