2004 Toyota Matrix Base, 4WDFACTORY OEM SERVICE PROCEDURE
Section 973 (Power Liftgate System): Latch: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

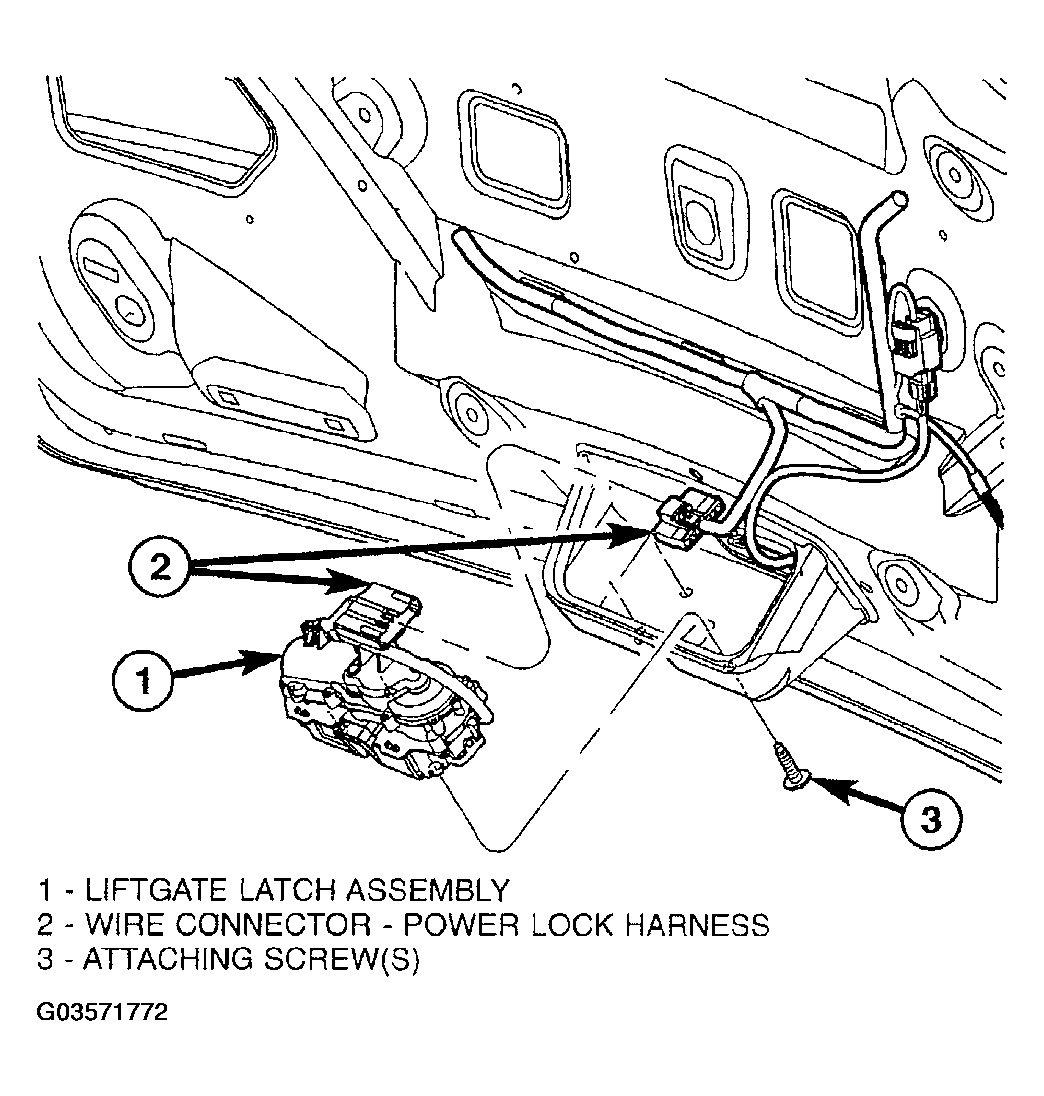

- Engage link and place latch in position on vehicle (Figure ).
- Install screws attaching latch to liftgate. Tighten screws to 11 N.m (95 in. lbs.) torque.
- Connect wire connector to liftgate latch.
- Verify liftgate fit and operation. Adjust as necessary.
- Install liftgate trim panel.
