Section 825 (Power Mirror Control System): Inspection

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Left/right adjustment switch (Left side): INSPECT MIRROR SWITCH CONTINUITY
    SPECIFIED CONDITION CHART

    Switch position Specified condition
    UP 1 - 10
    3 - 4
    RIGHT 1 - 3
    9 - 4
    DOWN 1 - 3
    10 - 4
    LEFT 1 - 9
    3 - 4

    If continuity is not as specified, replace the switch.

  2. Left/right adjustment switch (Right side): INSPECT MIRROR SWITCH CONTINUITY
    SPECIFIED CONDITION CHART

    Switch position Specified condition
    UP 1 - 6
    3 - 4
    RIGHT 1 - 3
    2 - 4
    DOWN 1 - 3
    6 - 4
    LEFT 1 - 2
    3 - 4

    If continuity is not as specified, replace the switch.

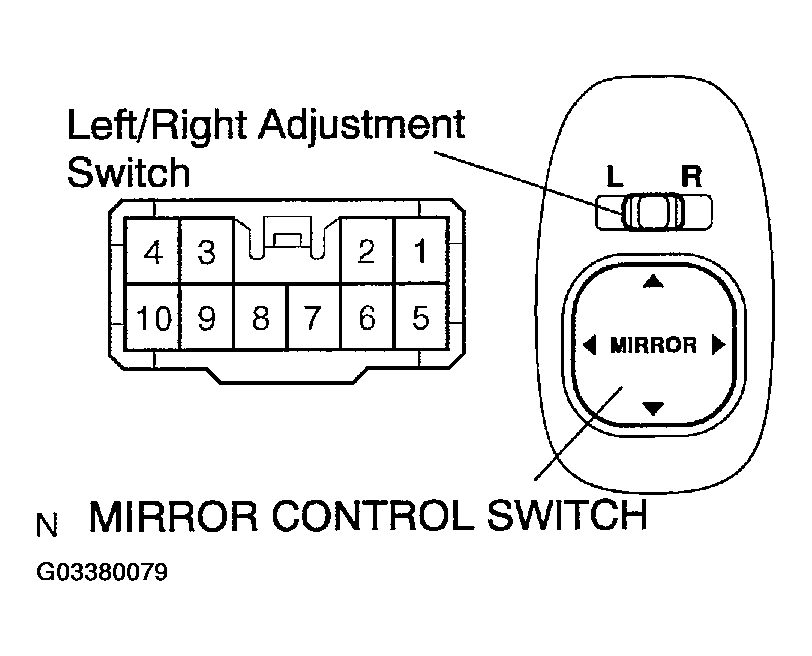

    Fig 1: Identifying Connector Terminal
    G03380079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT MIRROR MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 7, and check that the mirror turns to the upward.
    2. Reverse the polarity, and check that the mirror turns to the downward.
    3. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7, and check that the mirror turns to the inside.
    4. Reverse the polarity, and check that the mirror turns outside.

      If operation is not as specified, replace the mirror assembly.

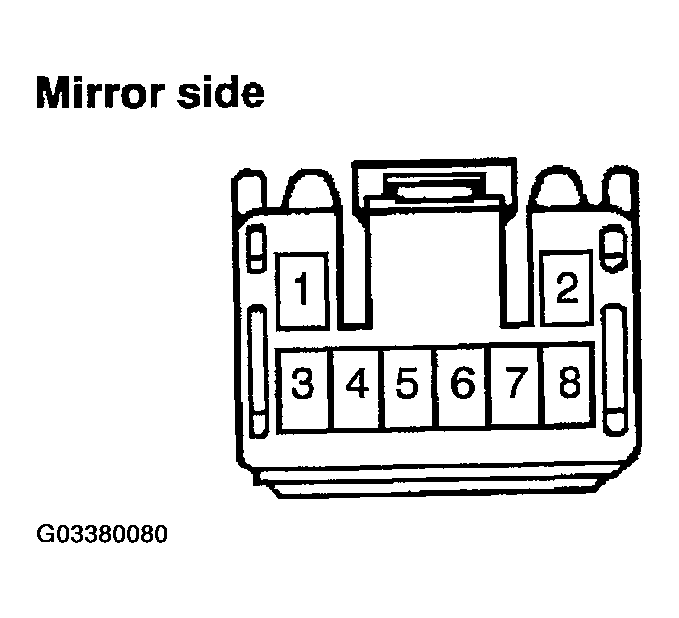

      Fig 2: Identifying Connector Terminal
      G03380080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
