2004 Toyota Matrix Base, 4WDFACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
- CHECK FUEL PUMP OPERATION
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and hand-held tester main switch ON.NOTE: Do not start the engine.
- Select the active test mode on the hand-held tester.
- Please refer to the hand-held tester operator's manual for further details.

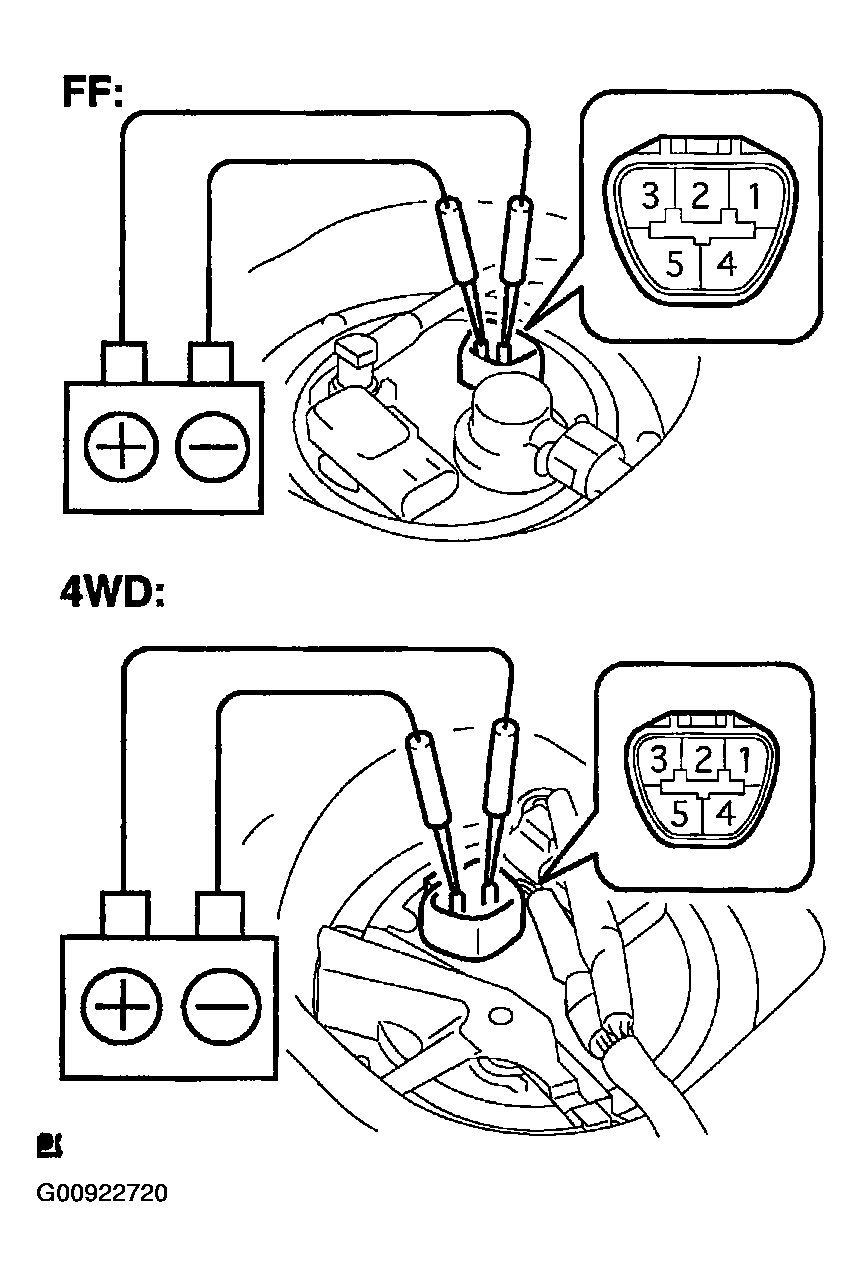

- If you have no hand-held tester, connect the positive (+) lead form the battery to terminal 4 of the connector, and the negative (-) lead to terminal 5.
