Front Brake: Overhaul

HINT: Overhaul the RH side by the same procedure as the LH side.

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
   NOTE: Wash the brake fluid off immediately if it comes into contact with any painted surface.
3. REMOVE FRONT DISC BRAKE CYLINDER SUB-ASSY
   1. Remove the union bolt and gasket from the disc brake cylinder, then disconnect the flexible hose.

      HINT: Gasket has 2 types: 2-piece type and 1-piece type.

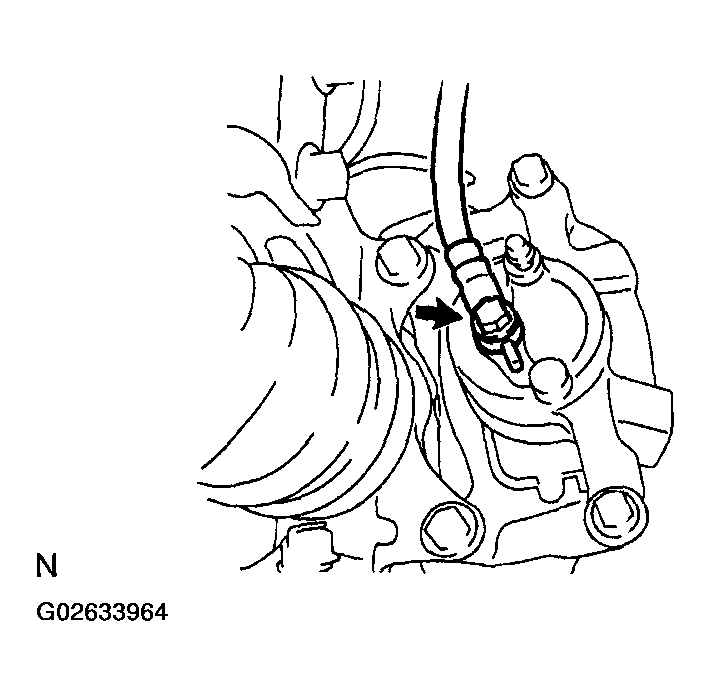

      Fig 1: Disconnecting Flexible Hose

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Hold the cylinder slide pin and remove the 2 bolts.

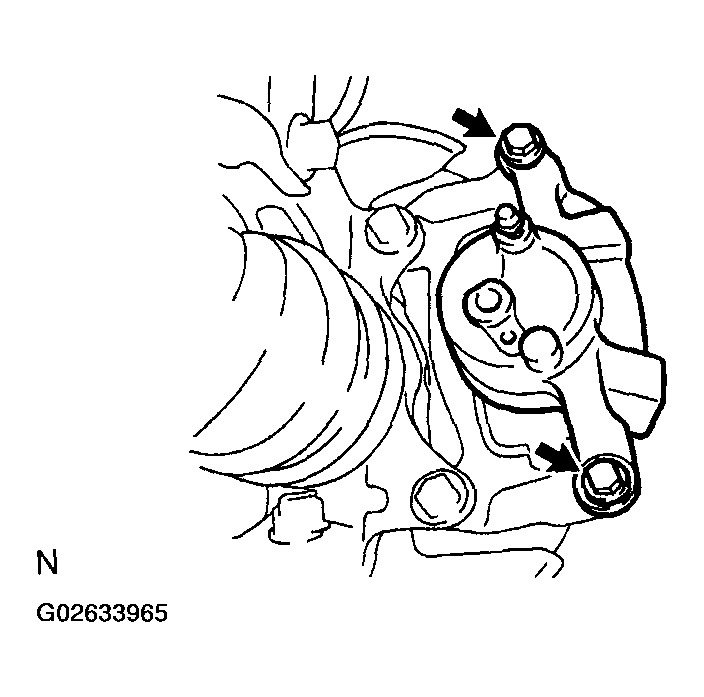

      Fig 2: Removing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE DISC BRAKE PAD KIT FRONT (PAD ONLY)
   1. Remove the 2 brake pads with anti-squeal shims.
   2. Remove the anti-squeal shim No.1 and anti-squeal shim No.2 from each pad.
   3. Remove the pad wear indicator plates from each pad.
5. REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE
   1. Remove the 2 front disc brake pad support plates from the cylinder mounting.
6. REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN
   1. Remove the 2 cylinder slide pins from the disc brake cylinder mounting.
7. REMOVE FRONT DISC BRAKE CYLINDER MOUNTING LH
   1. Remove the 2 bolts and disc brake cylinder mounting.

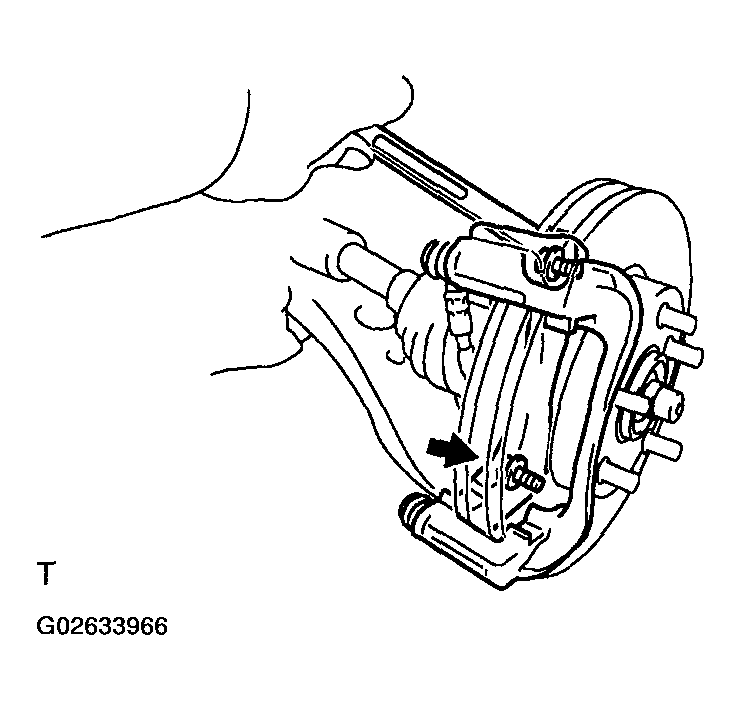

      Fig 3: Removing Front Disc Brake Cylinder Mounting LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE FRONT DISC BRAKE BUSH DUST BOOT
   1. Place front disc brake cylinder mounting in vise.
   2. Using a screwdriver and hammer, remove the 2 bush dust boots from the disc brake cylinder mounting.

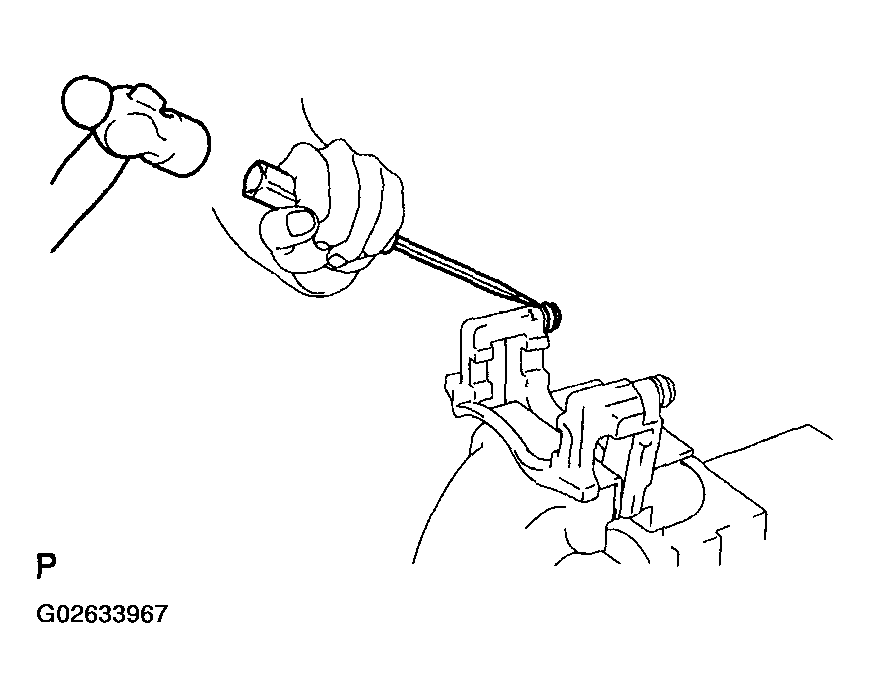

      Fig 4: Removing Front Disc Brake Bush Dust Boot

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE CYLINDER BOOT
   1. Using a screwdriver, remove the set ring and cylinder boot.

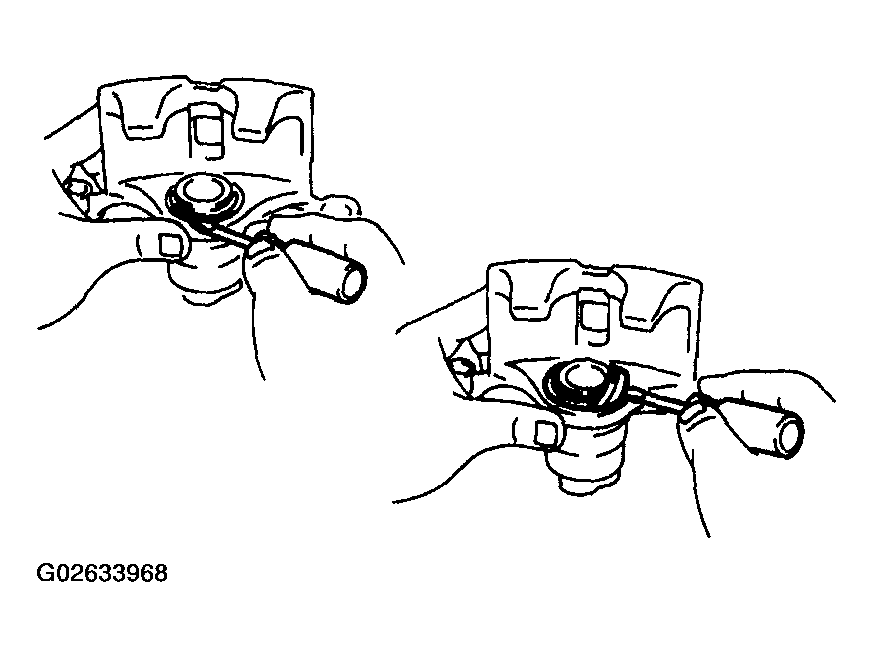

      Fig 5: Removing Cylinder Boot

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE FRONT DISC BRAKE PISTON
    1. Place a piece of cloth or similar, between the piston and the disc brake cylinder.
    2. Use compressed air to remove the piston from the disc brake cylinder.
    CAUTION: Do not place your fingers in front of the piston when using compressed air.
