Inspection Procedure
HINT:
- If DTCs related to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- Check accelerator pedal position sensor (See THROTTLE BODY (SMT)
).
- NG : Replace accelerator pedal position sensor (See INSPECTION ).
- OK : Go to Next Step
- Check voltage between terminals VPA and E2, and VPA2 and E2 of ECM connector.
PREPARATION:
- Remove the ECM cover.
- Turn the ignition switch ON.
CHECK:

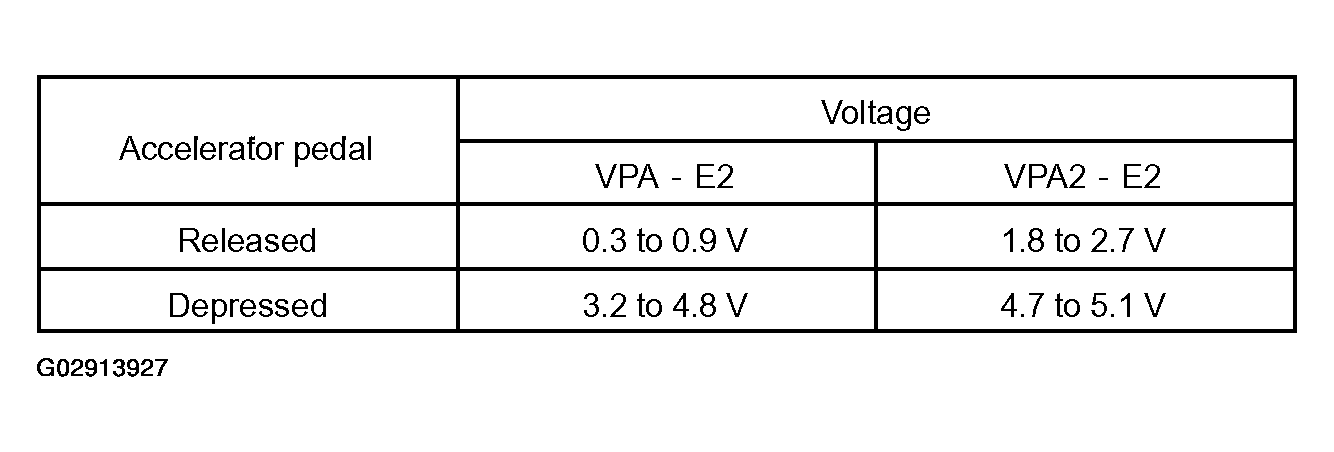

Measure the voltage between terminals VPA and E2, and VPA2 and E2 of ECM connectors.
OK:
