Vapor Pressure Sensor: Inspection
- INSPECT POWER SOURCE VOLTAGE OF VAPOR PRESSURE SENSOR
- Disconnect the vapor pressure sensor connector.
- Turn the ignition switch ON.

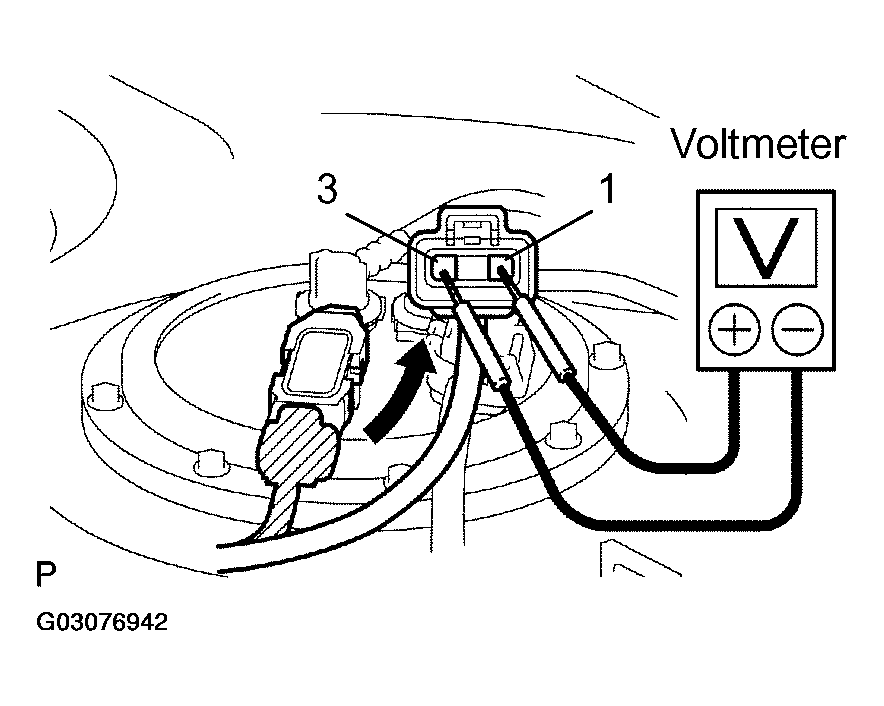

- Using a voltmeter, measure the voltage between connector terminal 1 and 3 of the wiring harness side.
Voltage: 4.5 - 5.5 V
- Turn the ignition switch OFF.
- Reconnect the vapor pressure sensor connector.
- INSPECT POWER OUTPUT OF VAPOR PRESSURE SENSOR
- Turn the ignition switch ON.
- Remove the fuel tank cap.

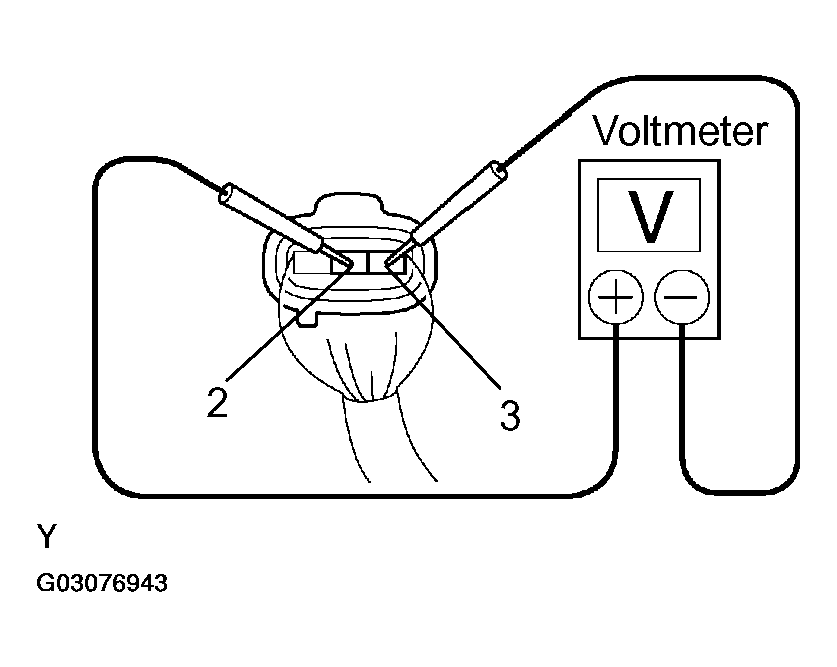

- Connect a voltmeter to terminal 2 and 3, and measure the output voltage.
Voltage: 3.0 - 3.6 V
- Reinstall the fuel tank cap.
- Turn the ignition switch OFF.
