Throttle Body: Installation
- INSTALL THROTTLE BODY

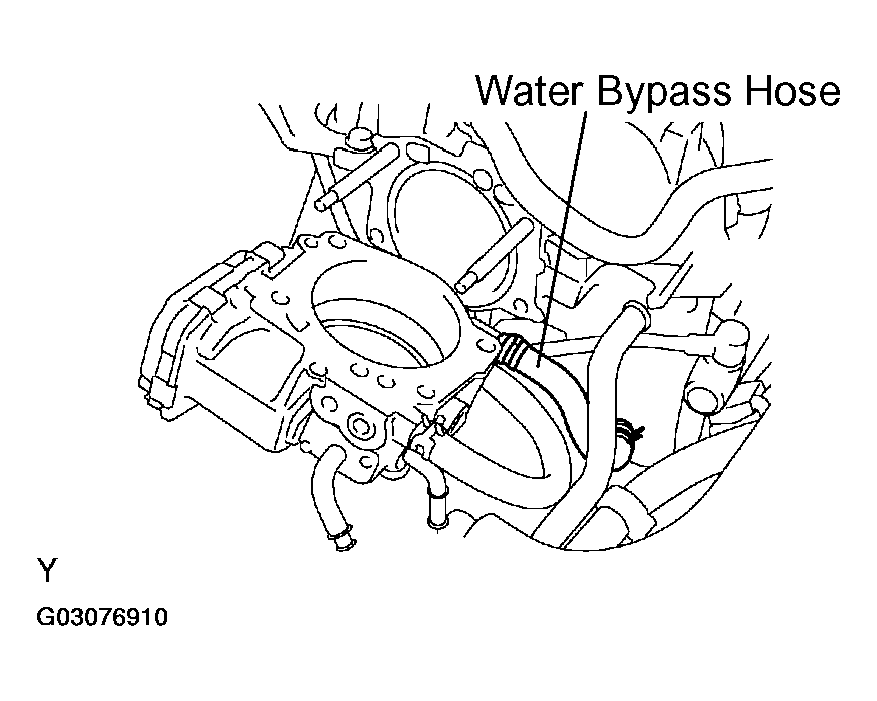

- Connect the water bypass hose to the manifold thermostat on the throttle body.

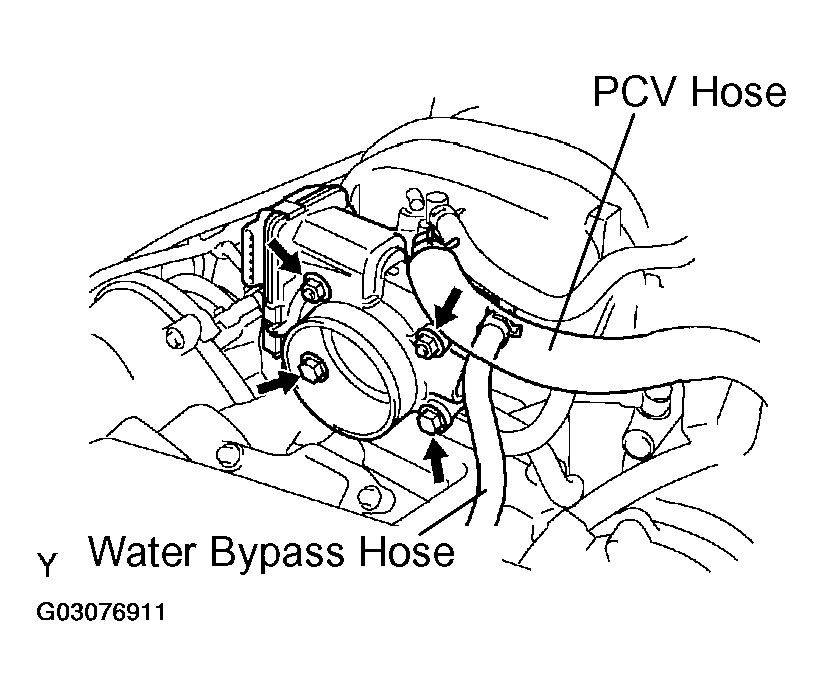

- Install a new gasket and the throttle body with the 2 bolts and the 2 nuts.
Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
- Connect the water bypass hose and the PCV hose to the throttle body.
- Connect the throttle control connector.
- INSTALL INTAKE AIR CONNECTOR
- FILL WITH ENGINE COOLANT (See REPLACEMENT )
- START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
- INSTALL V-BANK COVER
