2004 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

On-Vehicle Inspection

  1. CHECK FUEL PUMP OPERATION
    1. Connect a TOYOTA hand-held tester or OBD II scan tool to the DLC3.
    2. Turn the ignition switch ON, and press the TOYOTA hand-held tester or OBD II scan tool main switch ON.
      NOTE: Do not start the engine.
    3. Select the ACTIVE TEST mode on the TOYOTA hand-held tester or OBD II scan tool.
    4. Please refer to the TOYOTA hand-held tester or OBD II scan tool operator's manual for further details.
    5. If you have no TOYOTA hand-held tester or OBD II scan tool, connect the positive (+) and negative (-) leads from the battery to the fuel pump connector. (See step  3)
    6. Disconnect the fuel return hose from the clamp on the V-bank cover.
    7. Remove the 2 bolts, nuts and V-bank cover.
    8. Check that the pulsation damper screw pop up when the fuel pump operates.

      If operation is not as specified, check following parts:

      • Fusible link
      • Fuses
      • EFI main relay
      • Fuel pump
      • ECM
      • Wiring connections
    9. Turn the ignition switch OFF.
    10. Disconnect the TOYOTA hand-held tester or OBD II scan tool from the DLC3.

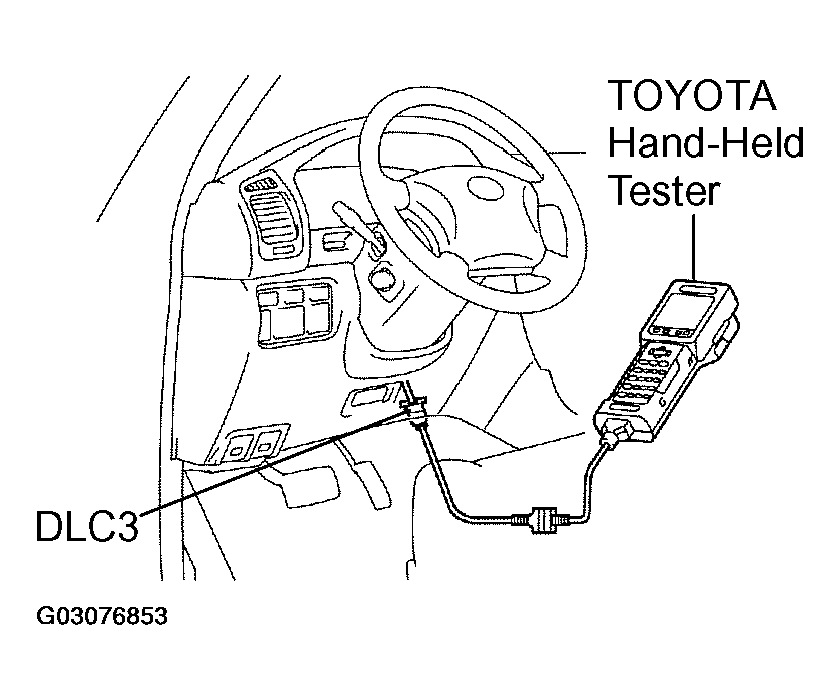

      Fig 1: Connecting Toyota Hand-Held Tester To Dlc3
      G03076853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
