Fuel Pump Resistor: Inspection
- REMOVE FUEL PUMP RESISTOR
- INSPECT FUEL PUMP RESISTOR

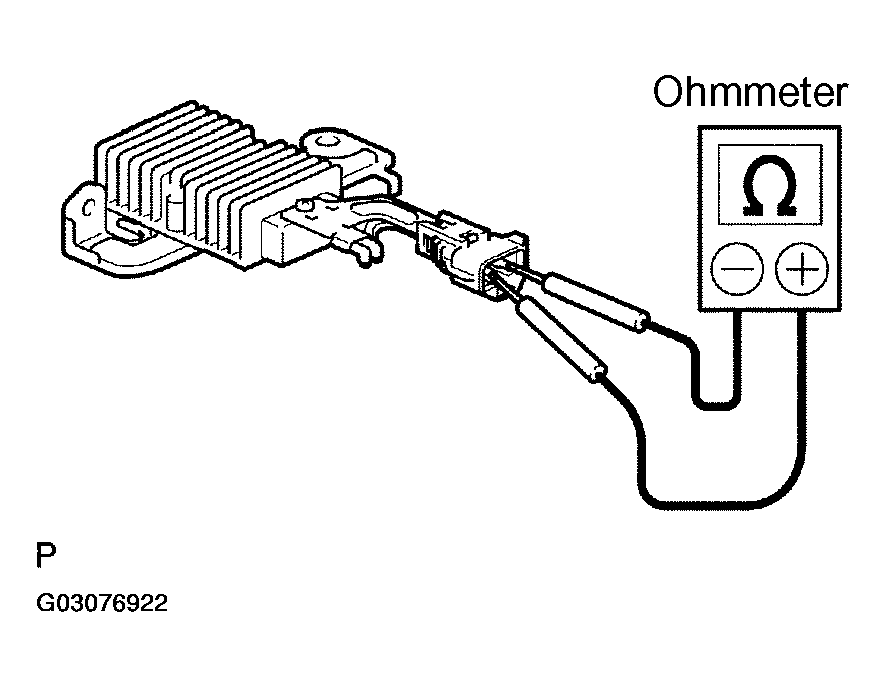

Using an ohmmeter, measure the resistance between the terminals.
Resistance: 0.70 - 0.76 Ω at 20°C (68°F)
If the resistance is not as specified, replace the resistor.
- REINSTALL FUEL PUMP RESISTOR
Torque: 12 N.m (122 kgf.cm, 8.8 ft.lbf)
