Fuel Pump Relay: Inspection
- REMOVE RELAY BOX COVER

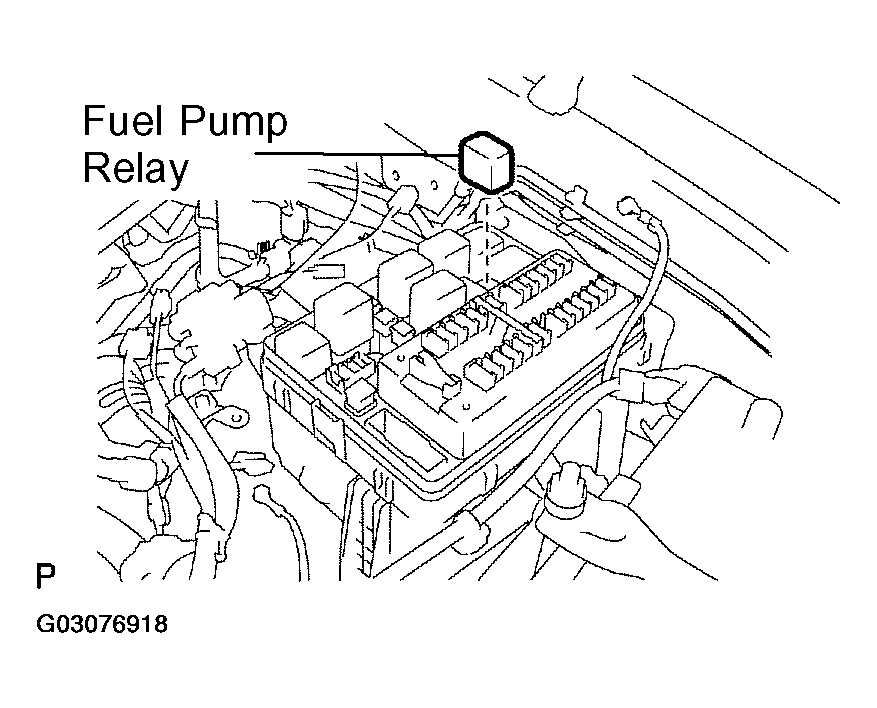

- REMOVE FUEL PUMP RELAY (Marking: F/PUMP)

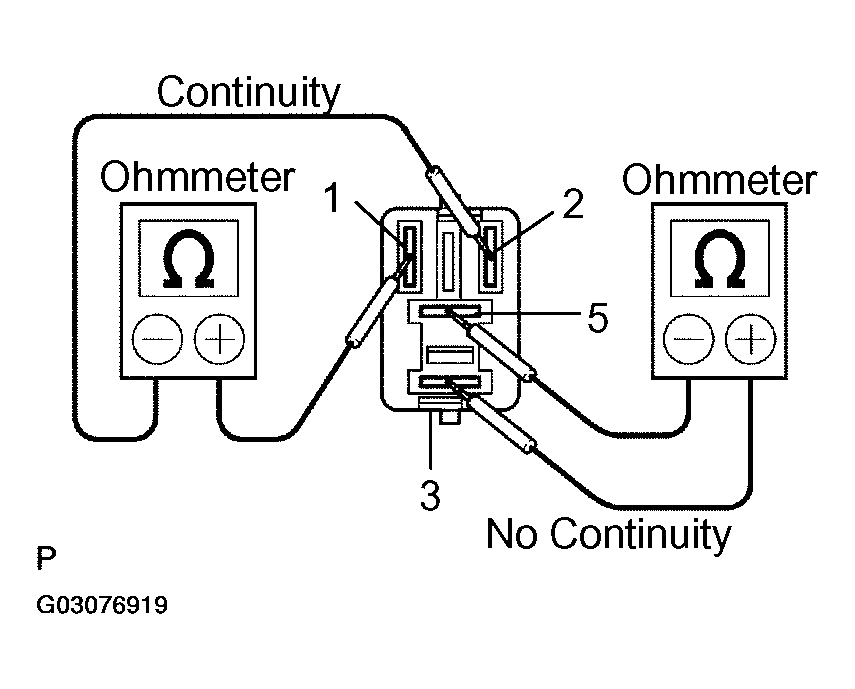

- INSPECT FUEL PUMP RELAY CONTINUITY
- Using an ohmmeter, check that there is a continuity between terminal 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 3 and 5.
If there is a continuity, replace the relay.
- Using an ohmmeter, check that there is a continuity between terminal 1 and 2.

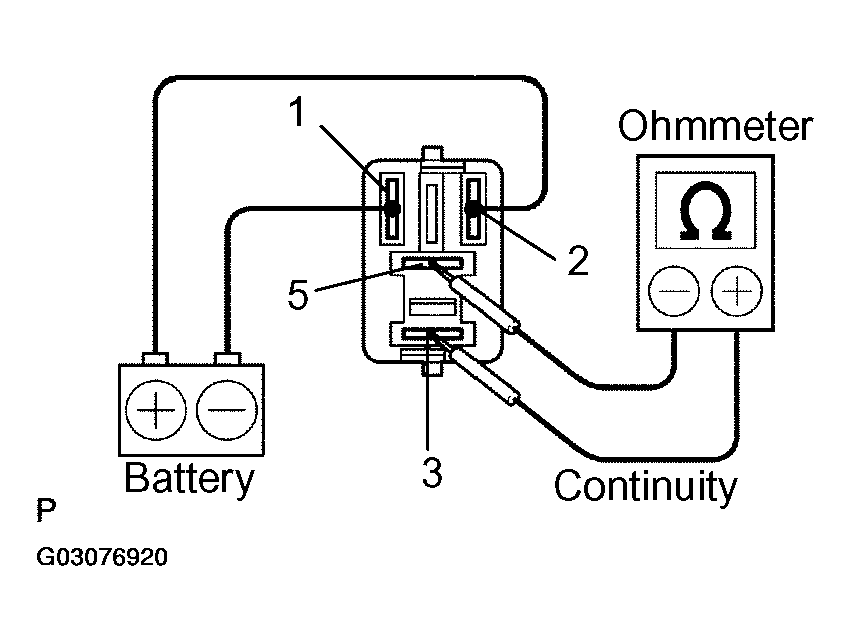

- INSPECT FUEL PUMP RELAY OPERATION
- Apply the battery positive voltage across terminal 1 and 2.
- Using an ohmmeter, check that there is a continuity between terminal 3 and 5.
If there is no continuity, replace the relay.
- REINSTALL FUEL PUMP RELAY
- REINSTALL RELAY BOX COVER
