Fuel Pressure Regulator: Installation
- INSTALL FUEL PRESSURE REGULATOR
- Apply a light coat of gasoline to a new O-ring, and install it to the fuel pressure regulator.

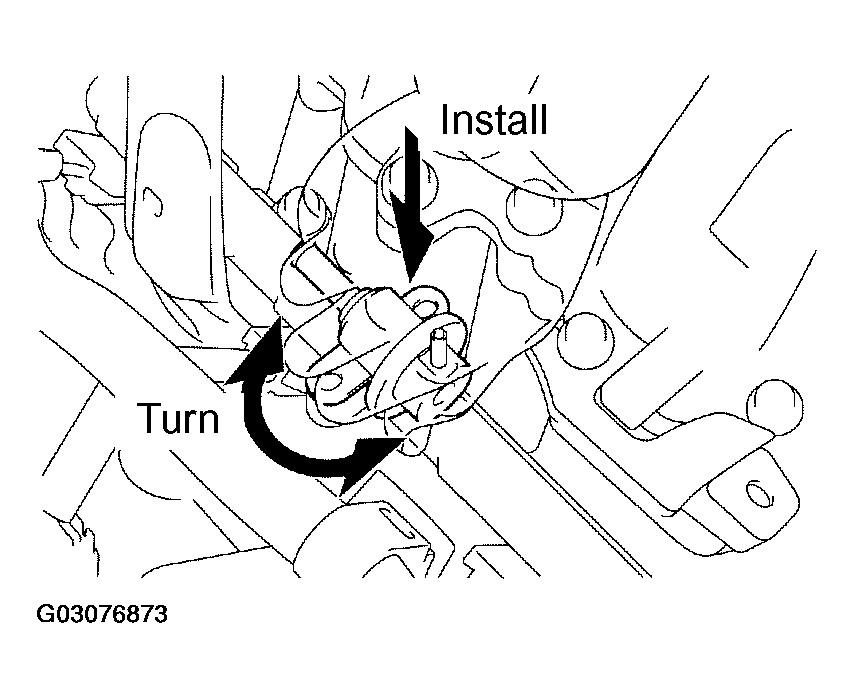

- While turning the fuel pressure regulator left and right, install it to the delivery pipe.
- Install the fuel pressure regulator with the 2 bolts.
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

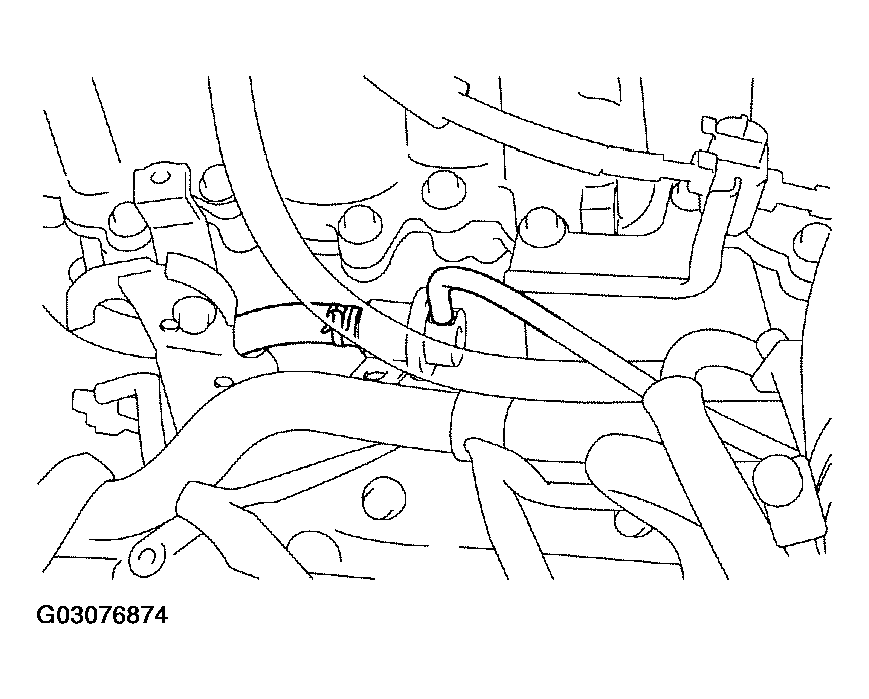

- Connect the vacuum sensing hose to the fuel pressure regulator.
- Connect the fuel return hose to the pressure regulator.
- CHECK FOR FUEL LEAKS (See SFI SYSTEM )
- INSTALL V-BANK COVER
