Fuel Cut Rpm: Inspection
- WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.

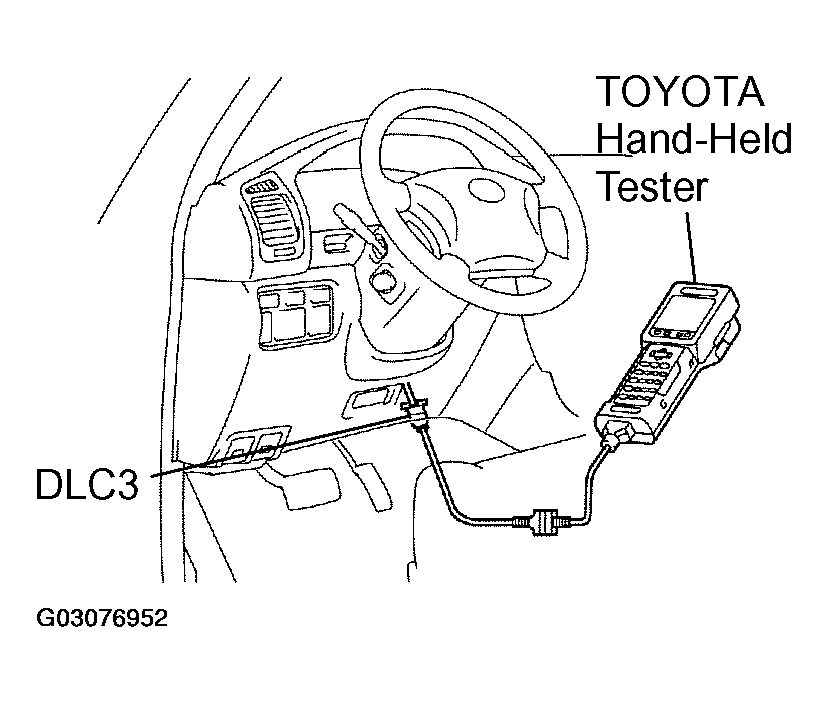

- CONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL
- Connect the TOYOTA hand-held tester or OBDII scan tool to the DLC3.
- Please refer to the TOYOTA hand-held tester or OBDII scan tool operator's manual for further details.
- INSPECT FUEL CUTOFF RPM OPERATION
- Increase the engine speed to at least 2,500 rpm.

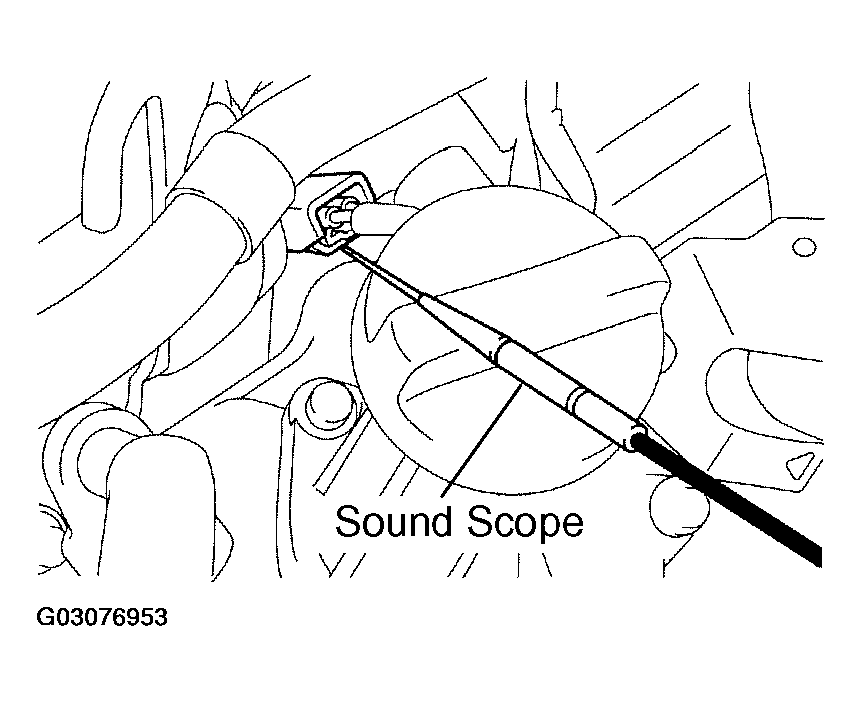

- Check the injector for operating noise.
- Check that when the throttle lever is released, injector operation noise stops momentarily and then resumes.
HINT:
- The vehicle should be at rest during the inspection.
- Inspection with the A/C OFF.
Fuel return speed: 1,000 rpm
- DISCONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL
