2004 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature (ECT) Sensor: Inspection

  1. DRAIN ENGINE COOLANT
  2. REMOVE V-BANK COVER
  3. REMOVE INTAKE AIR CONNECTOR
  4. DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLDS (See  REMOVAL   )
  5. REMOVE ECT SENSOR
    1. Disconnect the ECT sensor connector.
    2. Remove the ECT sensor and the gasket.

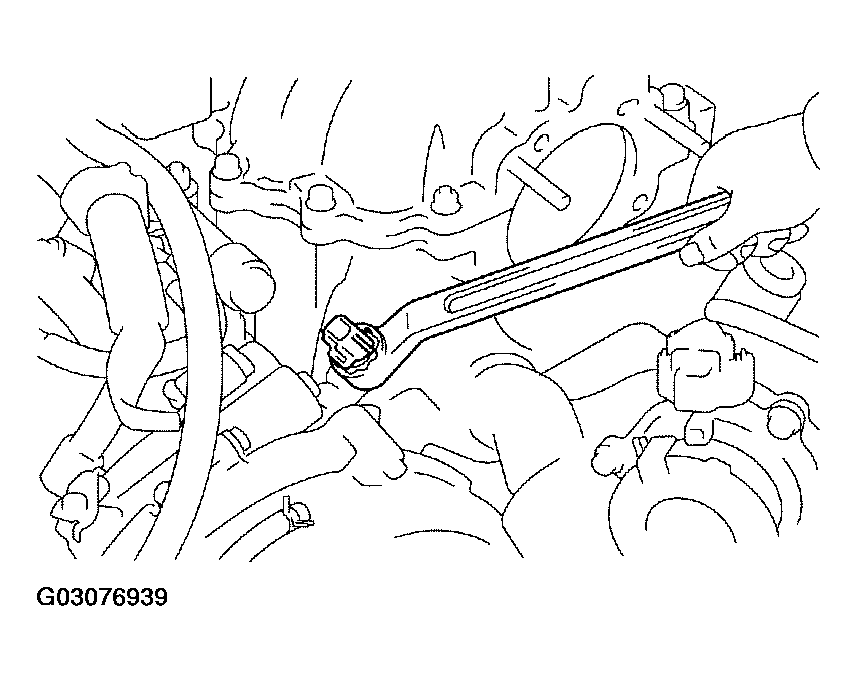

      Fig 1: Disconnecting ECT Sensor Connector
      G03076939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT ECT SENSOR

    Using an ohmmeter, measure the resistance between the terminals.

    Resistance: Refer to the graph

    If the resistance is not as specified, replace the ECT sensor.

  7. REINSTALL ECT SENSOR
    1. Install a new gasket and the ECT sensor.

      Torque: 20.4 N.m (208 kgf.cm, 15 ft.lbf)

    2. Connect the ECT sensor connector.
  8. REINSTALL THROTTLE BODY TO INTAKE MANIFOLDS

    Install a new gasket and the throttle body with the 2 bolts and 2 nuts.

    Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

  9. REINSTALL INTAKE AIR CONNECTOR
  10. REFILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  11. REINSTALL V-BANK COVER

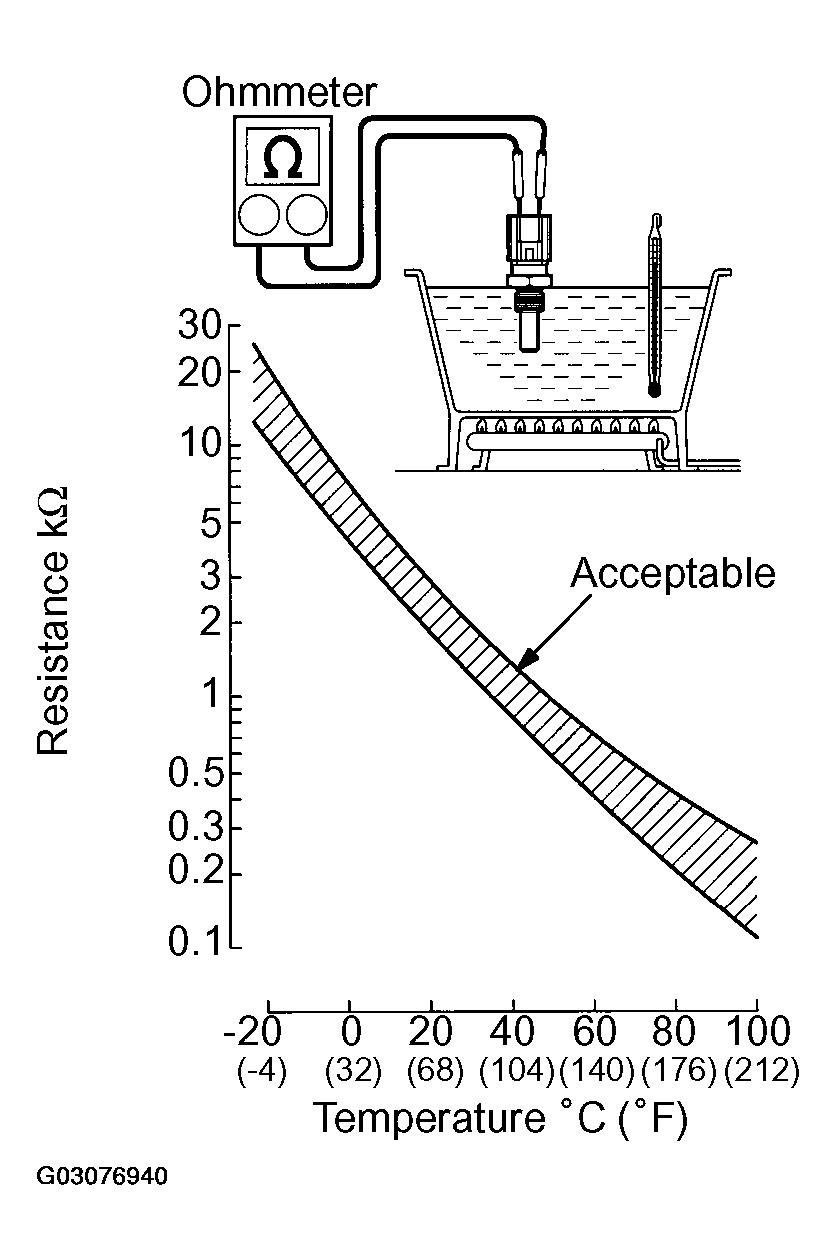

    Fig 2: Measuring Resistance Between Terminals
    G03076940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
