Circuit Opening Relay: Inspection
- REMOVE RELAY BOX COVER

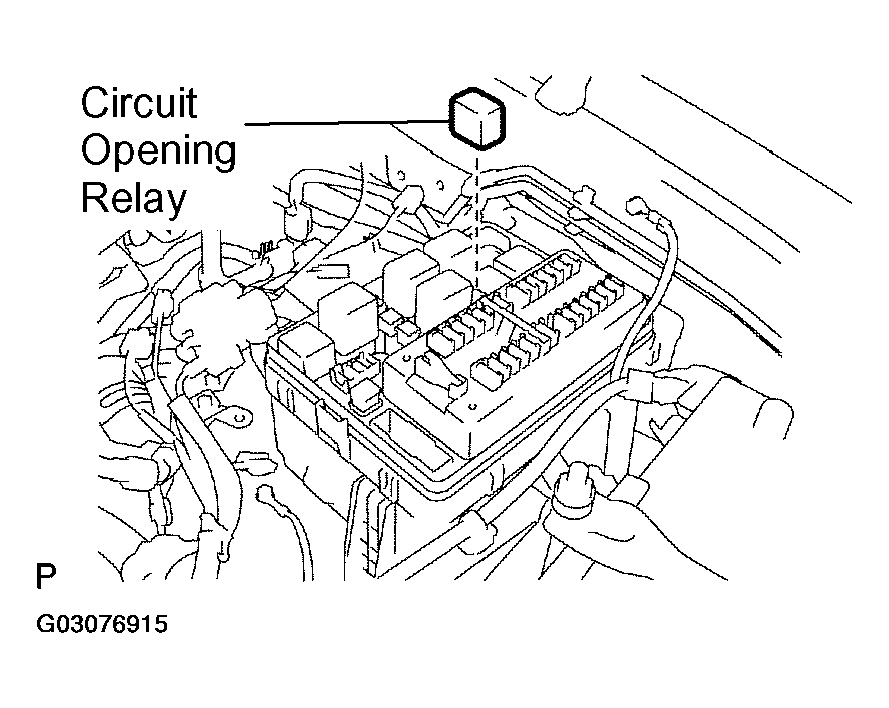

- REMOVE CIRCUIT OPENING RELAY (Marking: C/OPN)

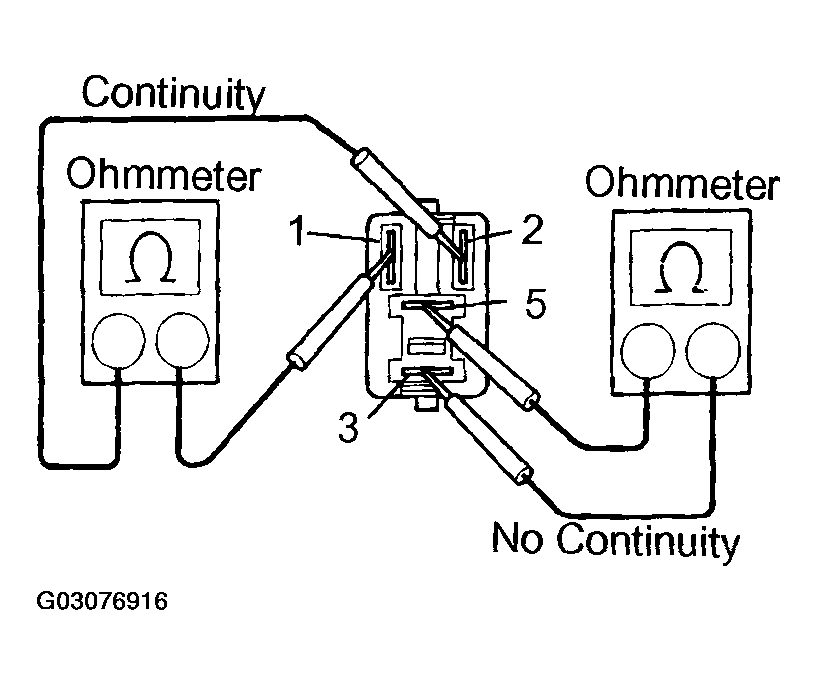

- INSPECT CIRCUIT OPENING RELAY CONTINUITY
- Using an ohmmeter, check that there is a continuity between terminal 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminal 3 and 5.
If there is a continuity, replace the relay.
- Using an ohmmeter, check that there is a continuity between terminal 1 and 2.

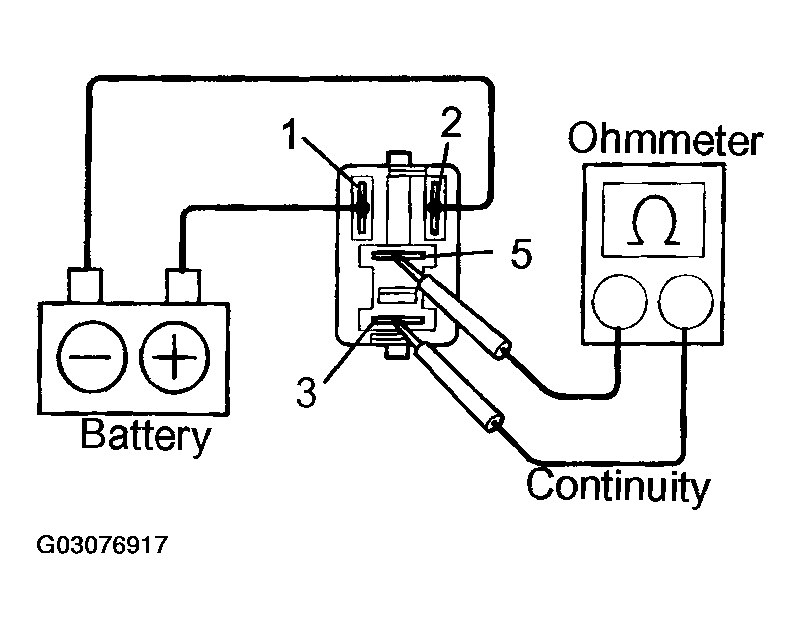

- INSPECT CIRCUIT OPENING RELAY OPERATION
- Apply the battery positive voltage across terminal 1 and 2.
- Using an ohmmeter, check that there is a continuity between terminal 3 and 5.
If there is no continuity, replace the relay.
- REINSTALL CIRCUIT OPENING RELAY
- REINSTALL RELAY BOX COVER
