2004 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Ignition Timing: Inspection

  1. REMOVE BATTERY CLAMP COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. REMOVE V-BANK COVER
  4. WARM UP ENGINE

    Allow the engine to warm up to the normal operating temperature.

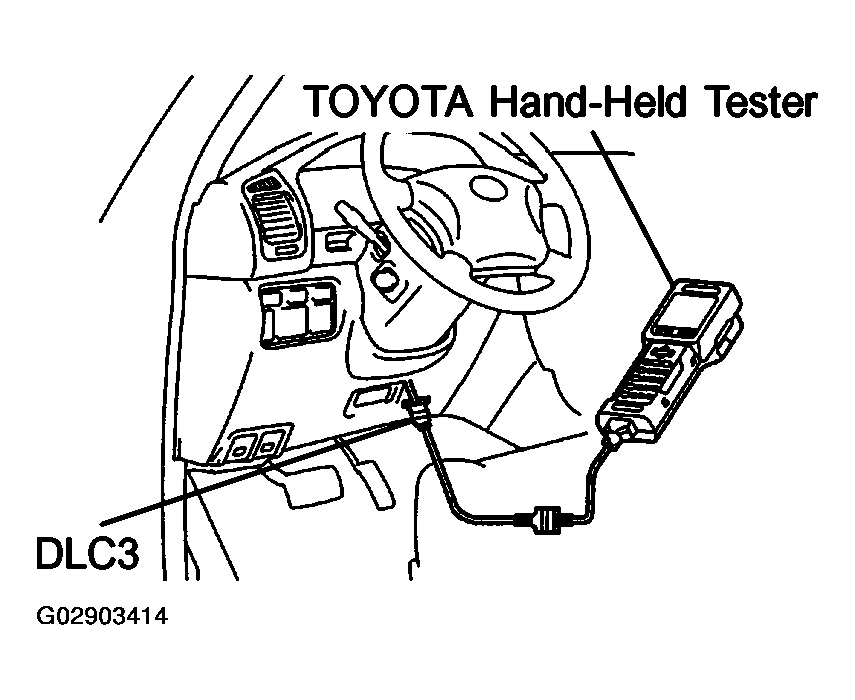

    Fig 1: Connecting TOYOTA Hand-Held Tester To DLC3
    G02903414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT TOYOTA HAND-HELD TESTER OR OBD II SCAN TOOL
    1. Connect the TOYOTA hand-held tester or OBD II scan tool to the DLC3.
    2. Please refer to the TOYOTA hand-held tester or OBD II scan tool operator's manual for further details.

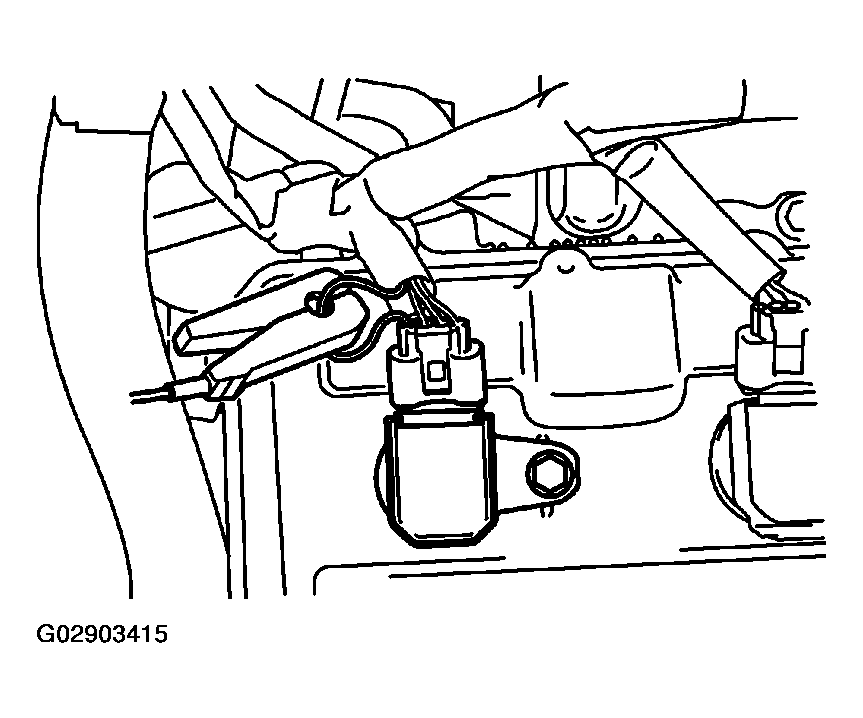

    Fig 2: Checking Idle Speed
    G02903415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT TIMING LIGHT TO ENGINE

    Connect the tester probe of a timing light to the wire of the ignition coil connector for No. 1 cylinder.

  7. CHECK IDLE SPEED
    1. Race the engine speed at 2,500 RPM for approx. 90 seconds.
    2. Check the idle speed.
      1. Idle speed:
      2. 700 +/- 50 RPM
  8. INSPECT IGNITION TIMING
    1. Using SST, connect terminal TC and E1 of the DLC1.
      1. SST 09843-18020

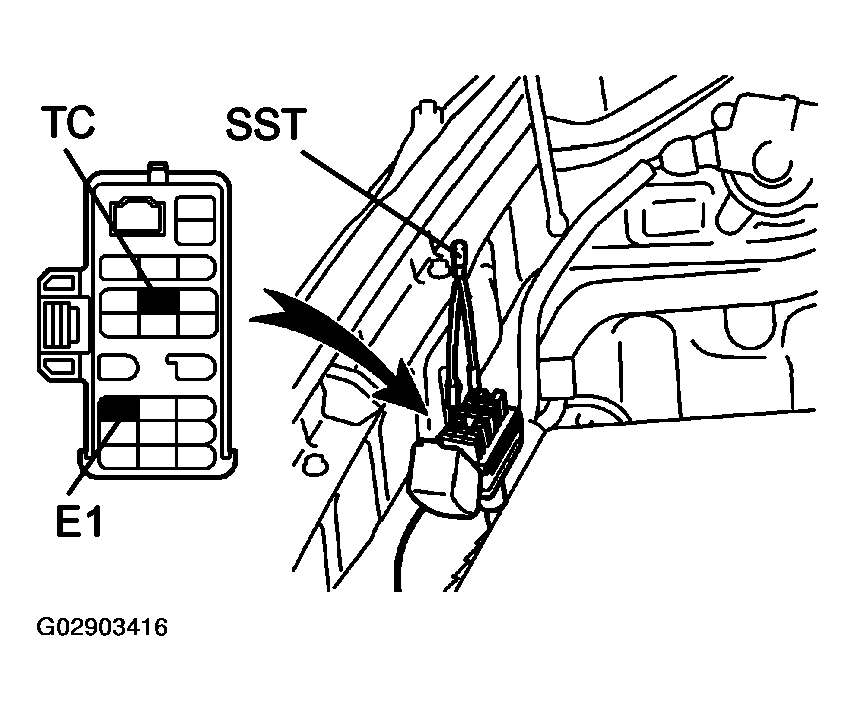

      Fig 3: Connecting DLC1 Connector Terminals TC & E1 Using SST
      G02903416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a timing light, check the ignition timing.
      1. Ignition timing:
      2. 5 - 15° BTDC@idle
      3. (Transmission in neutral position)

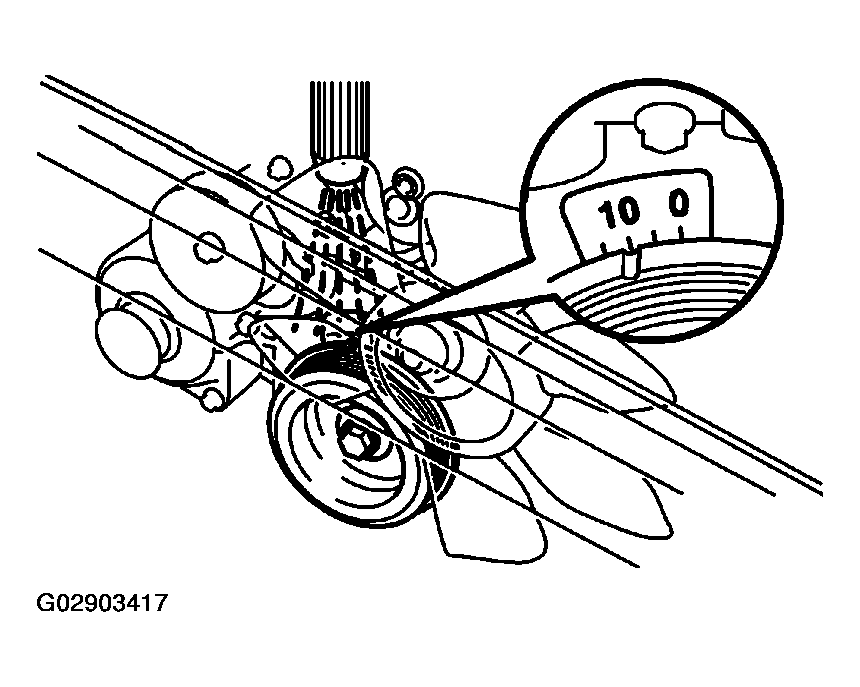

      Fig 4: Checking Ignition Timing
      G02903417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove SST from the DLC1.
      1. SST 09843-18020
  9. DISCONNECT TIMING LIGHT FROM ENGINE
  10. DISCONNECT TOYOTA HAND-HELD TESTER OR OBD II SCAN TOOL
  11. REINSTALL V-BANK COVER
  12. REINSTALL INTAKE AIR CONNECTOR
  13. REINSTALL BATTERY CLAMP COVER
