2004 Toyota Highlander Limited, AWDFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Control Cable Assembly: Replacement

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  REPLACEMENT  )
  2. REMOVE FLOOR CARPET COVER CENTER RH (See  REPLACEMENT  )
  3. REMOVE FLOOR CARPET COVER CENTER LH (See  REPLACEMENT  )
  4. REMOVE BATTERY
  5. REMOVE AIR CLEANER ASSY
  6. REMOVE AIR CLEANER HOSE NO.1
  7. REMOVE TRANSMISSION CONTROL CABLE ASSY
    1. Remove the nut from the control shaft lever.
    2. Disconnect the control cable from the control shaft lever.

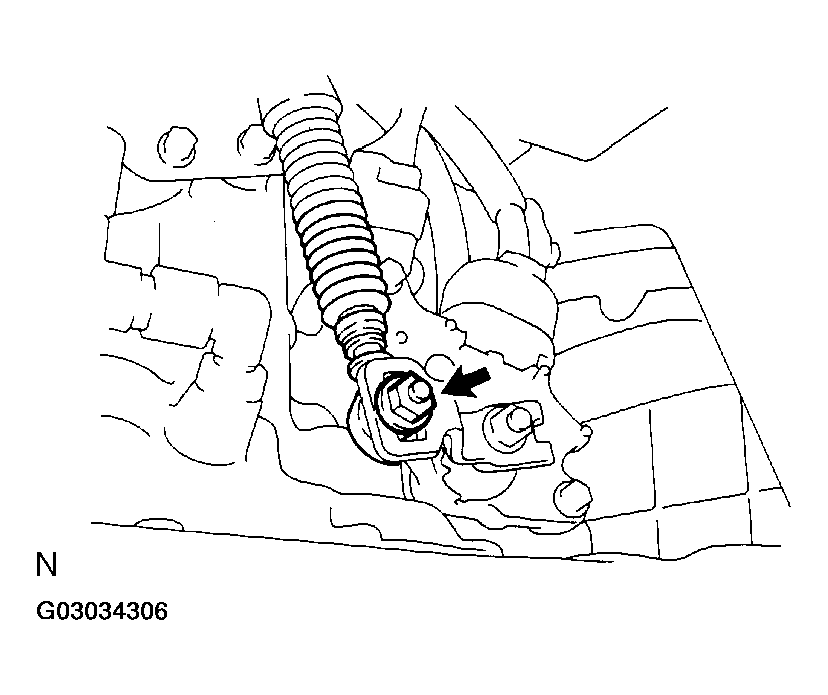

      Fig 1: Disconnecting Control Cable From Control Shaft Lever
      G03034306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the control cable from the control cable bracket.

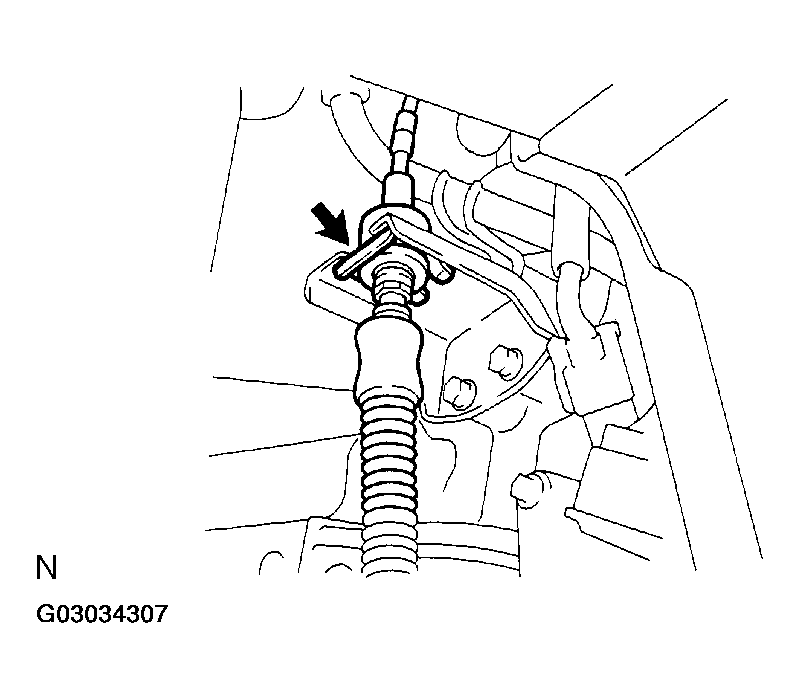

      Fig 2: Disconnecting Control Cable From Control Cable Bracket
      G03034307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the control cable from the control cable clamp.

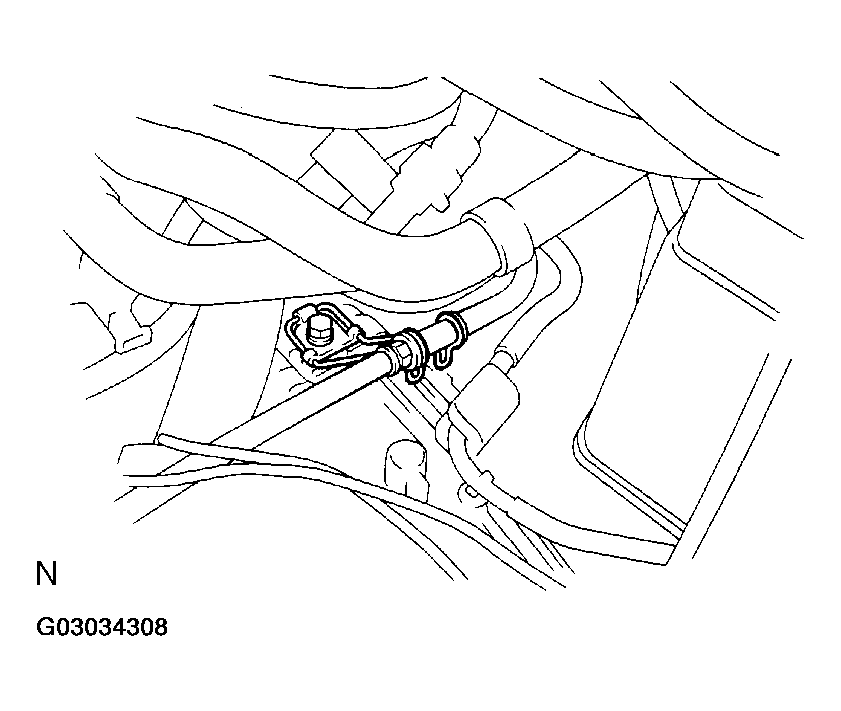

      Fig 3: Disconnecting Control Cable From Control Cable Clamp
      G03034308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the cable end from the rod of the floor shift assy.

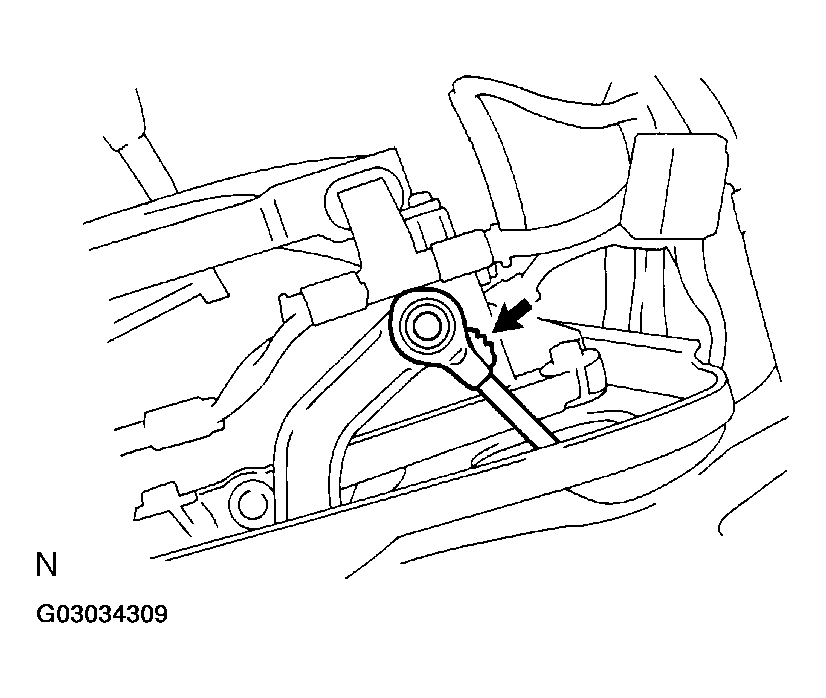

      Fig 4: Disconnecting Cable End From Rod Of Floor Shift Assy
      G03034309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts.
      Fig 5: Removing Nuts
      G03034310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 3 bolts.
    8. Pull out the control cable from the body.

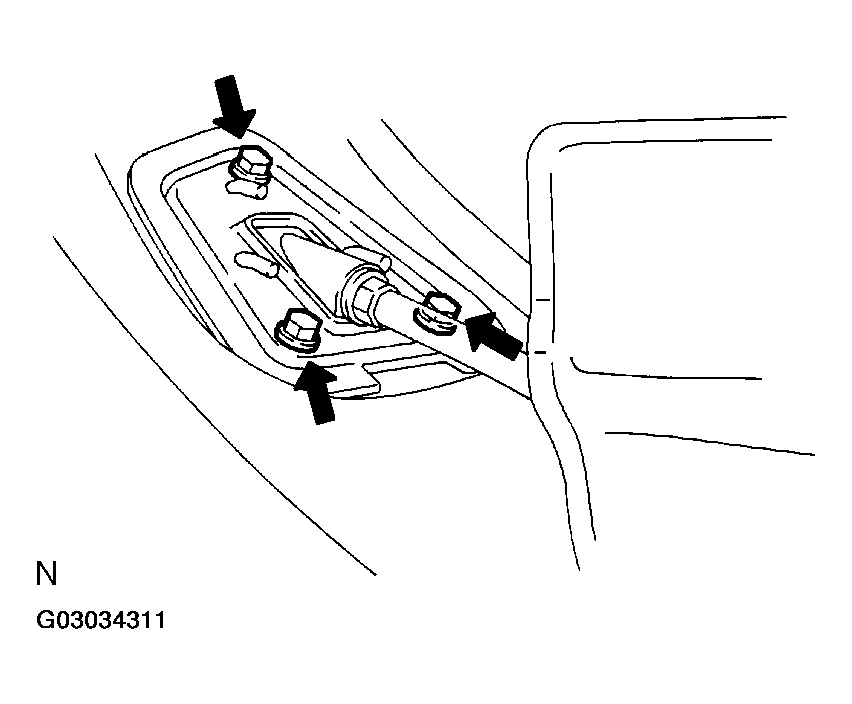

    Fig 6: Removing Control Cable From Body
    G03034311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL TRANSMISSION CONTROL CABLE ASSY
    1. Pull in the control cable to the body.
    2. Install the 3 bolts.

      Torque: 4.9 N.m (50 kgf.cm, 43 in..lbf)

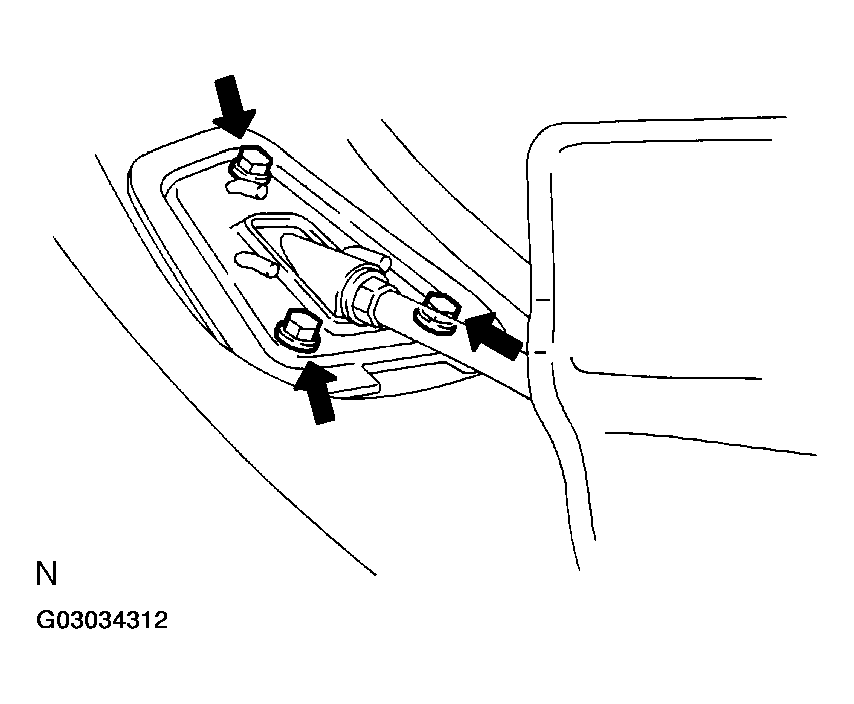

      Fig 7: Installing Control Cable To Body
      G03034312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the cable end, as shown in the illustration.

      HINT:

      Install it with the uneven surface facing up.

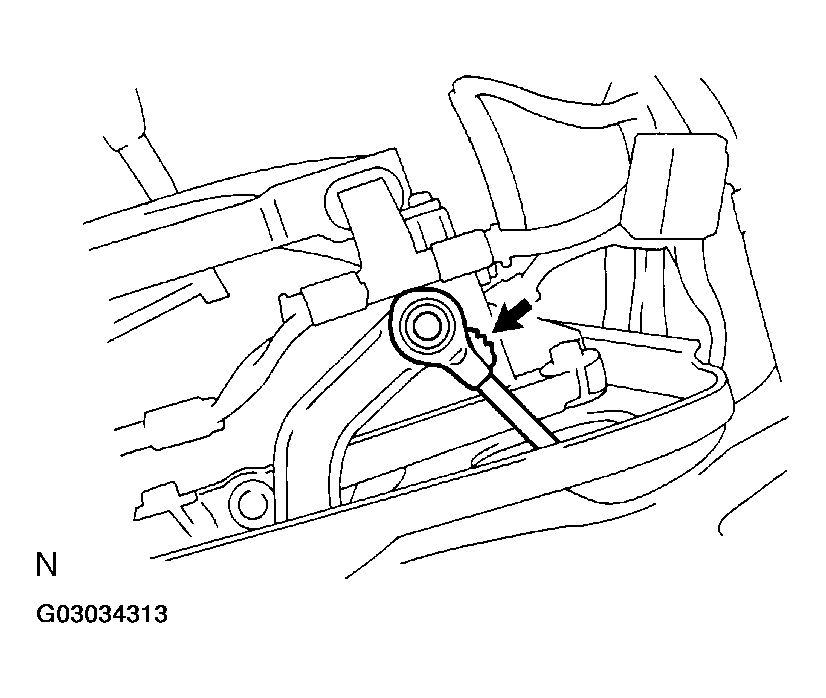

      Fig 8: Connecting Cable End To Rod Of Floor Shift Assy
      G03034313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the control cable and 2 nuts.

      Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)

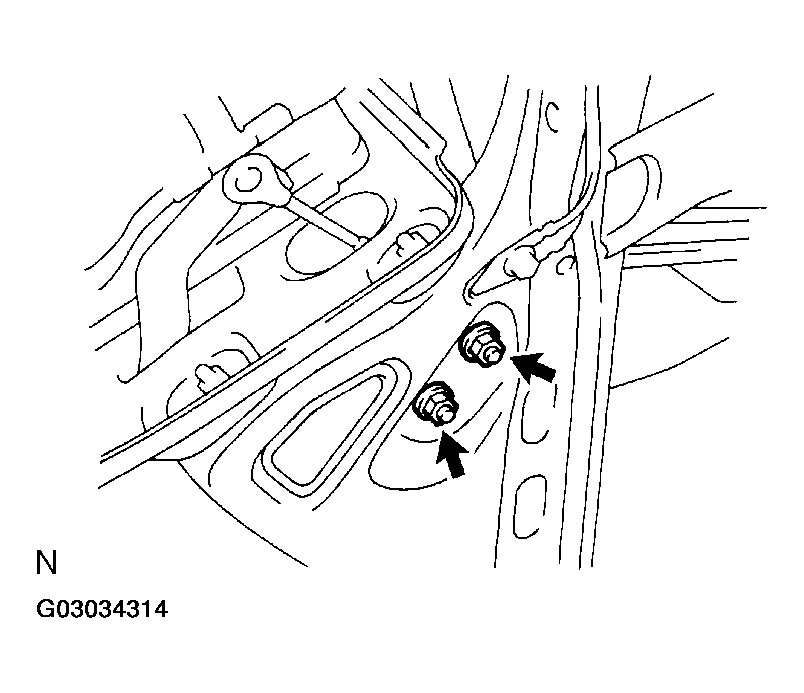

      Fig 9: Installing Control Cable Nuts
      G03034314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the control cable to the control cable clamp.

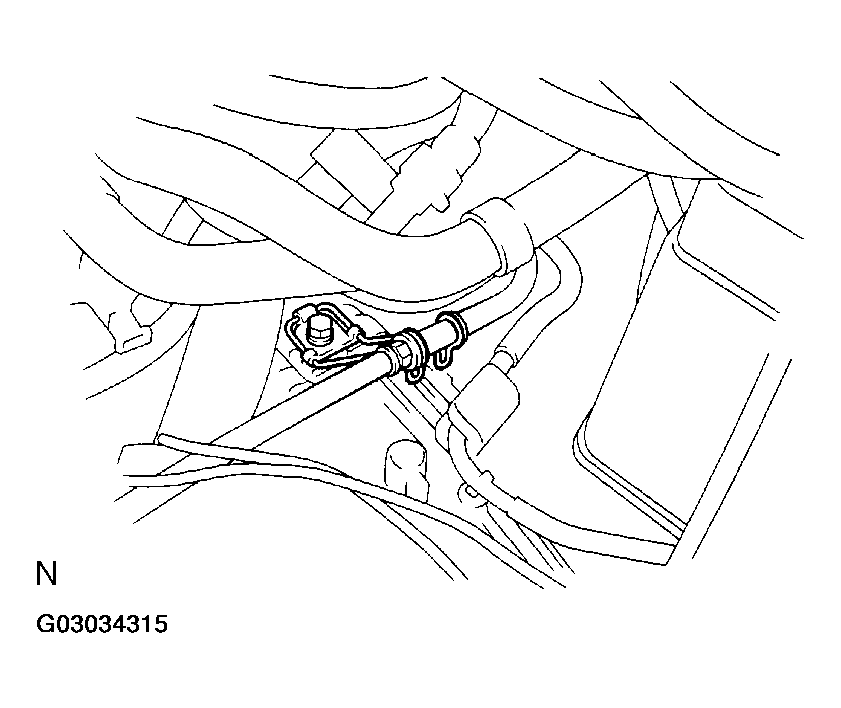

      Fig 10: Connecting Control Cable To Control Cable Clamp
      G03034315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the control cable to the control shaft lever with nuts.

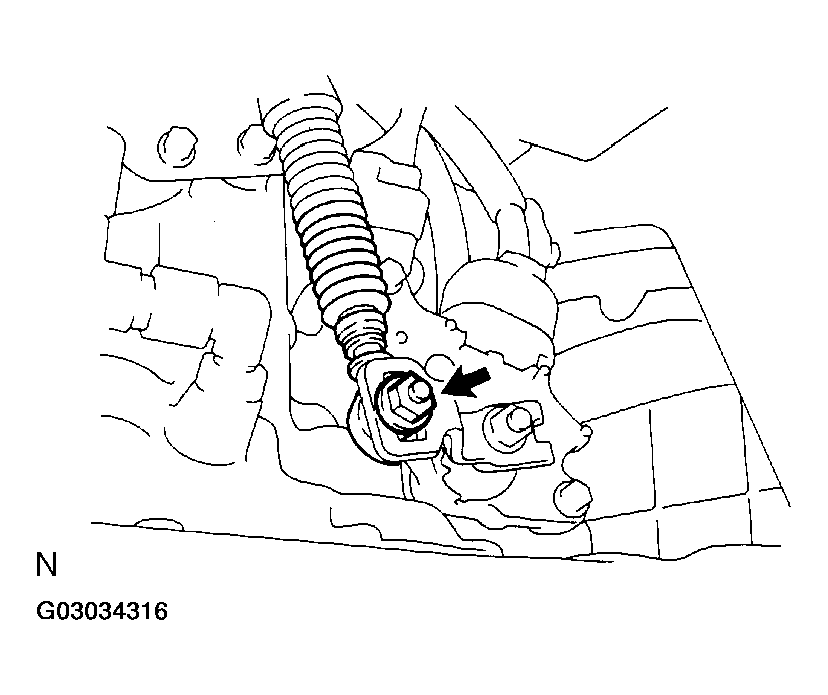

      Fig 11: Installing Control Cable To Control Shaft Lever
      G03034316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the control cable and clip to the bracket.

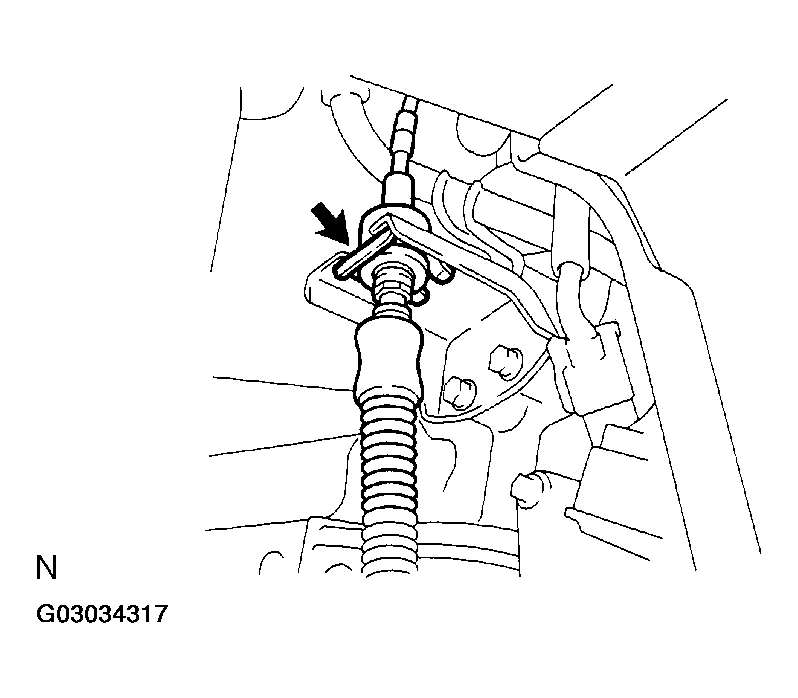

    Fig 12: Installing Control Cable And Clip To Bracket
    G03034317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL AIR CLEANER ASSY
  10. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  11. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
