2004 Toyota Corolla LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel System: Inspection

FUEL INJECTOR ASSY
1. Inspect injector resistance.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Resistance: 13.4 - 14.2 D. at 20°C (68°F)

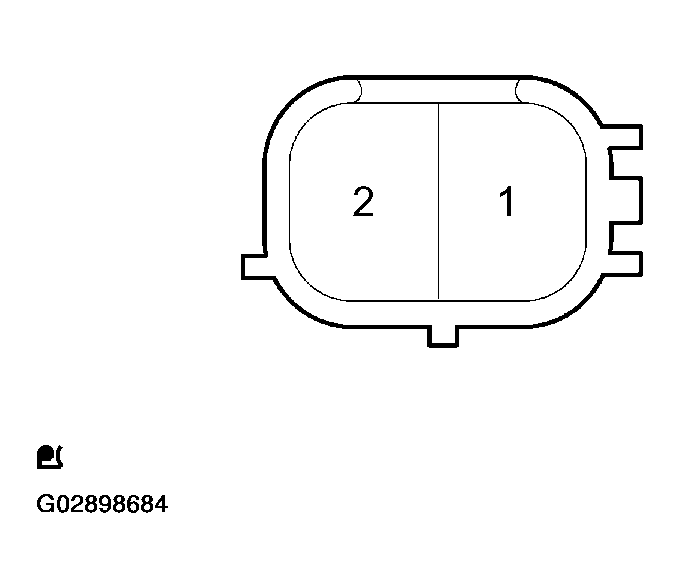

  Fig 1: Identifying Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect injector inspection
  CAUTION: Keep injector clear of sparks during the test.
  1. Purchase a new fuel tube, and take out the fuel tube connector from its tube.
    HINT:

    Part No. 23901-0D010

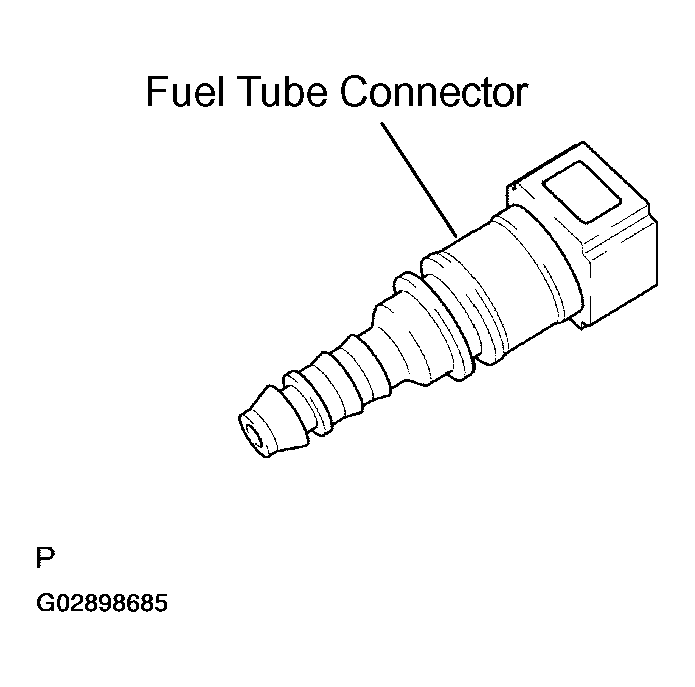

    Fig 2: Identifying Fuel Tube Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Connect SST and fuel tube connector to the fuel pipe.
    SST 09268-41047 (90467-13001, 95336-08070)

    CAUTION: Perform connecting operations of the fuel tube connector (quick type) after observing the precautions.
