Front Wheel Alignment: Adjustment
- INSPECT TIRE (See INSPECTION )
- MEASURE VEHICLE HEIGHT
Vehicle height:

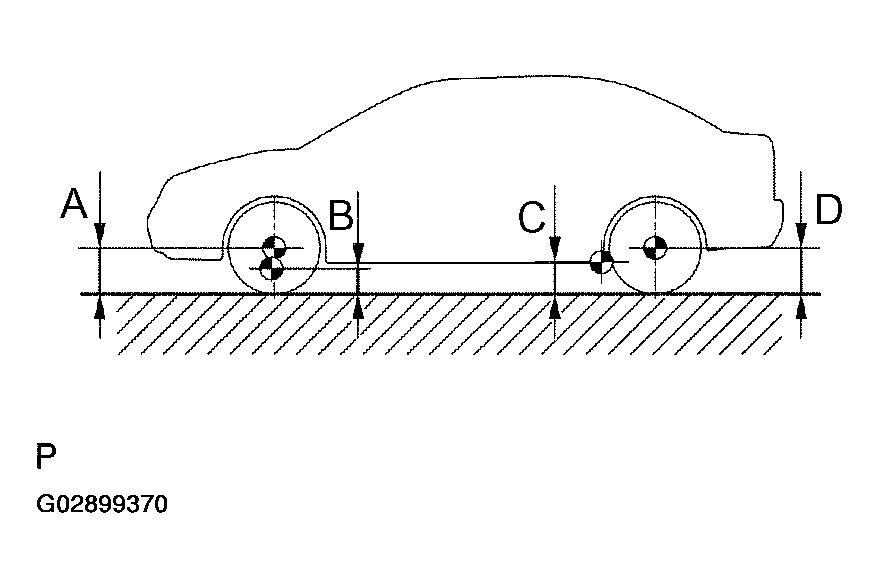

VEHICLE HEIGHTUSA, Canada Mexico Front (A - B) 87 mm (3.43 in.) 72 mm (2.84 in.) Rear (D - C) 43 mm (1.69 in.) 29 mm (1.14 in.) Measuring points:
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm front bolt center
C: Ground clearance of axle beam set bolt center
D: Ground clearance of rear wheel center
